X90 series

15 products in this series

Compression Router Bit D8mm Z2+2 Shank 8mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.08.035.080.08PR
Compression Router Bit D8mm Z2+2 Shank 8mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.08.035.080.08PRz
Compression Router Bit D10mm Z2+2 Shank 10mm L70mm PLATINUM Coated for Nesting — ITA Tools X90.10.022.070.10PR
Compression Router Bit D10mm Z3+3 Shank 10mm L70mm PLATINUM Coated for Nesting — ITA Tools X90.10.022.070.10PR3
Compression Router Bit D10mm Z2+2 Shank 1mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.10.035.080.10PR
Compression Router Bit D10mm Z3+3 Shank 10mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.10.035.080.10PR3
Compression Router Bit D10mm Z2+2 Shank 10mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.10.035.080.10PRz
Compression Router Bit D12mm Z2+2 Shank 12mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.12.025.080.12PR
Compression Router Bit D12mm Z3+3 Shank 12mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.12.025.080.12PR3
Compression Router Bit D12mm Z2+2 Shank 12mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.12.035.080.12PR
Compression Router Bit D12mm Z3+3 Shank 12mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.12.035.080.12PR3
Compression Router Bit D12mm Z2+2 Shank 12mm L80mm PLATINUM Coated for Nesting — ITA Tools X90.12.035.080.12PRz
Compression Router Bit D16mm Z2+2 Shank 16mm L110mm PLATINUM Coated for Nesting — ITA Tools X90.16.052.110.16PR
Compression Router Bit D16mm Z3+3 Shank 16mm L110mm PLATINUM Coated for Nesting — ITA Tools X90.16.052.110.16PR3
Compression Router Bit D16mm Z2+2 Shank 16mm L110mm PLATINUM Coated for Nesting — ITA Tools X90.16.052.110.16PRz

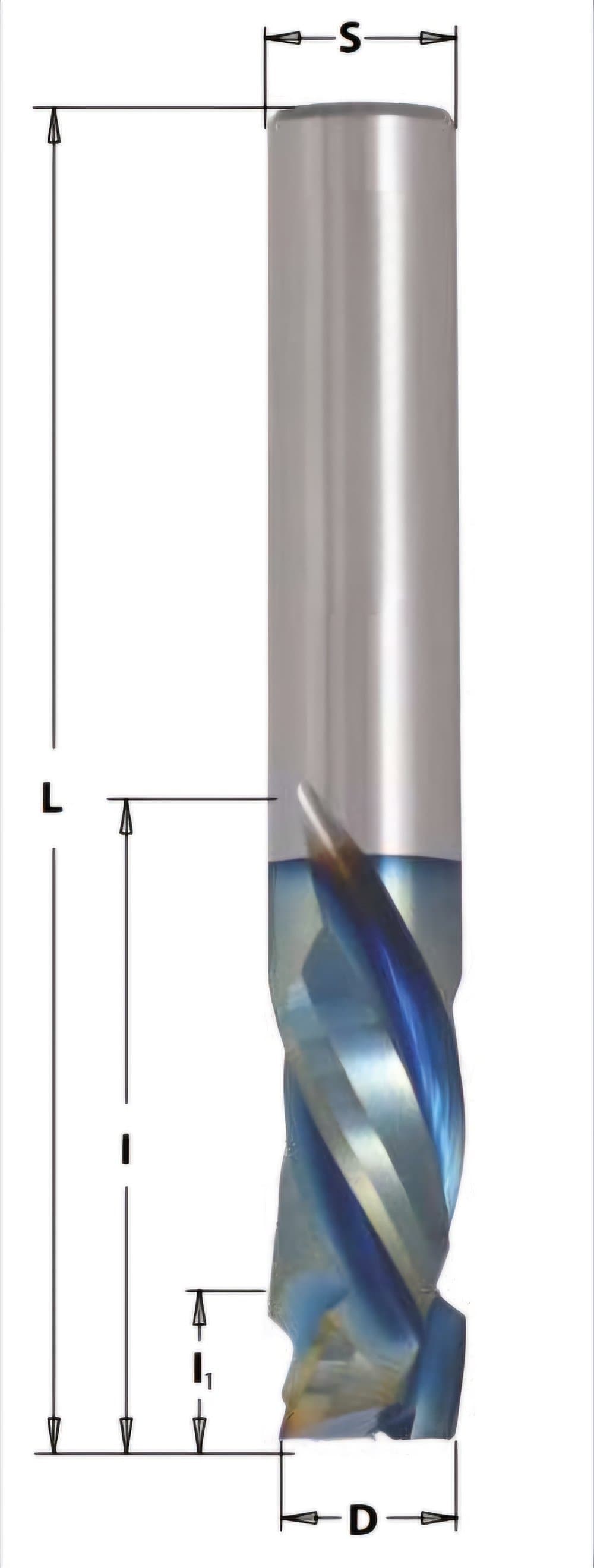

X90 series

Solid Carbide Finishing Up & Downcut Spiral Bits for Nesting PLATINUM coating

Description

️ 2+2 or 3+3 flute spiral cutter
️ Compression - upward and downward chip ejection
️ Finishing geometry
️ PLATINUM coating
️ Special nesting carbide grade
️ 2+2
ø8 – 8-14m/min
ø10 – 12-16m/min
ø12 – 13-18m/min
RPM 18.000-24.000
️ 3+3
ø10 – 13-20m/min
ø12 – 15-22m/min
RPM 18.000-24.000

Application

Materials

Advantages

High wear resistance when machining hard materials. The combination of the PLATINUM coating and the highest quality carbide allows to maintain very sharp cutting edges, eliminate chip sticking and significantly extends the life of the tool.

Diameter	Cutting length	Useful length	Overall length		Shank diameter		Number of flutes				Unit	Stock
8	35	7	80	RH	8	Wykańczający	2+2	Pos./Neg.	X90.08.035.080.08PR	£44.32	Each	Soon
8	35	7	80	RH	8	Roughing	2+2	Pos./Neg.	X90.08.035.080.08PRz	£49.24	Each	10+ pcs
10	22	8	70	RH	10	Wykańczający	2+2	Pos./Neg.	X90.10.022.070.10PR	£51.70	Each	-
10	22	8	70	RH	10	Wykańczający	3+3	Pos./Neg.	X90.10.022.070.10PR3	£73.86	Each	Soon
10	35	7	80	RH	10	Wykańczający	2+2	Pos./Neg.	X90.10.035.080.10PR	£64.01	Each	2 pcs
10	35	7	80	RH	10	Wykańczający	3+3	Pos./Neg.	X90.10.035.080.10PR3	£80.02	Each	10+ pcs
10	35	7	80	RH	10	Roughing	2+2	Pos./Neg.	X90.10.035.080.10PRz	£66.47	Each	10+ pcs
12	25	7	80	RH	12	Wykańczający	2+2	Pos./Neg.	X90.12.025.080.12PR	£78.78	Each	Soon
12	25	8	80	RH	12	Wykańczający	3+3	Pos./Neg.	X90.12.025.080.12PR3	£88.63	Each	10+ pcs
12	35	8	80	RH	12	Wykańczający	2+2	Pos./Neg.	X90.12.035.080.12PR	£81.25	Each	4 pcs
12	35	8	80	RH	12	Wykańczający	3+3	Pos./Neg.	X90.12.035.080.12PR3	£91.09	Each	Soon
12	35	8	80	RH	12	Roughing	2+2	Pos./Neg.	X90.12.035.080.12PRz	£86.17	Each	10+ pcs
16	52	9	110	RH	16	Wykańczający	2+2	Pos./Neg.	X90.16.052.110.16PR	£141.57	Each	-
16	52	9	110	RH	16	Wykańczający	3+3	Pos./Neg.	X90.16.052.110.16PR3	£272.06	Each	-
16	52	9	110	RH	16	Roughing	2+2	Pos./Neg.	X90.16.052.110.16PRz	£145.27	Each	10+ pcs

15 products
