Mechanical Clamp VCMC-B

3 products in this series

Mechanical clamps for Biesse consoles

️ Triangular clamping plate (1) is adjustable in clamping height and contact surface on the workpiece without tools and is lowered by activating the vacuum
️ Extension (2) for adjusting the clamping range
️ Friction material (3) for optimizing lateral force absorption
️ Main body (4) made of aluminum with interface (5) to Biesse console
️ Hexagon head screws (6) for fixing the clamp in the mounting

️ Mechanical clamping system for CNC machining centers from Biesse with console tables with ATS and EPS suction cup mountings
️ Particularly suitable for narrow and curved workpieces such as frame parts and window profiles
️ Tool-free adjustment of the clamping height to the workpiece within seconds
️ Extension of the clamping range possible through the extension piece
️ Clamping of the workpiece by activating the vacuum at the machine table
️ Triangular clamping disc with tool-free quick adjustment enables shortest set-up times
️ Clamping force of 700 N ensures safe clamping even with narrow workpieces
️ No additional medium required, as the clamp can be activated via operating vacuum of the CNC machining centre

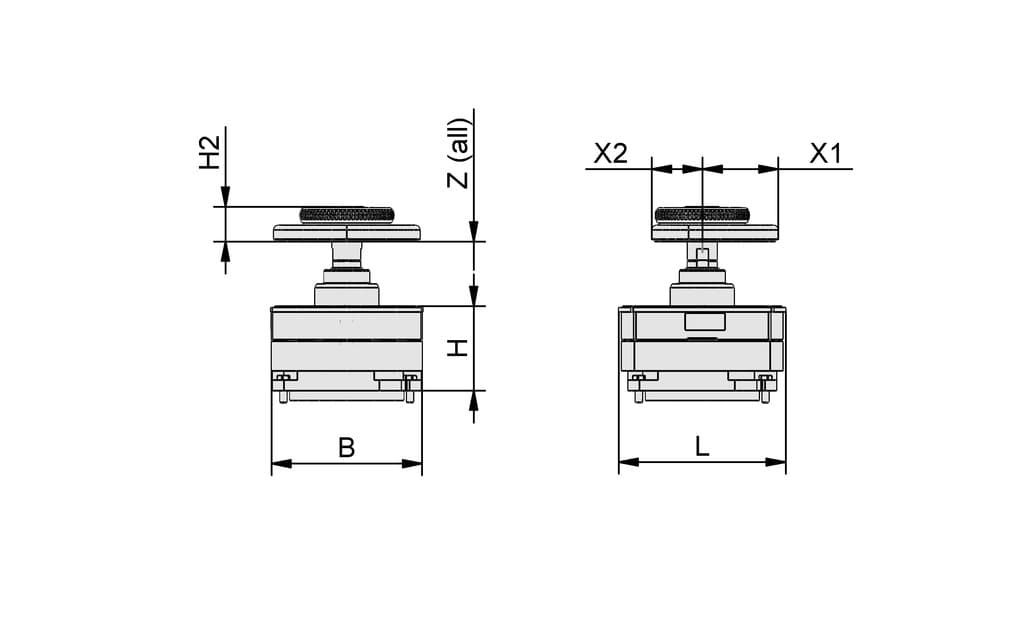

Width	Height		Overall length					Unit	Stock
	11		80			10.01.12.01477	£1319.30	Each	2 pcs
133	48	30	146.4	66.5	44	10.01.12.04750	£1109.11	Each	4 pcs
133	74	30	146.4	66.5	44	10.01.12.04752	£1109.11	Each	-

3 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order

Mechanical Clamp VCMC-B

Mechanical clamps for Biesse consoles

️ Triangular clamping plate (1) is adjustable in clamping height and contact surface on the workpiece without tools and is lowered by activating the vacuum
️ Extension (2) for adjusting the clamping range
️ Friction material (3) for optimizing lateral force absorption
️ Main body (4) made of aluminum with interface (5) to Biesse console
️ Hexagon head screws (6) for fixing the clamp in the mounting

Width

Height

Overall length

Unit

Stock

Order

10.01.12.01477

£1319.30

Each

2 pcs

133

146.4

66.5

10.01.12.04750

£1109.11

Each

4 pcs

133

146.4

66.5

10.01.12.04752

£1109.11

Each
