Vacuum block VCBL-B 140x130

3 products in this series

Vacuum blocks for Biesse consoles

️ Top suction plate (1) for fixing the workpiece
️ Robust main body (2) made of plastic
️ Mechanical clamp (3)
️ Touch valve (4) made of soft plastic
️ Heights of 29 mm and 48 mm (for three and four-axis machines) and additionally 74 mm (for five-axis machines)

️ Hose-free vacuum clamping system from Schmalz for console tables from Biesse (single-circuit system)
️ Fully compatible with the OEM vacuum blocks, allowing mixed operation
️ The vacuum blocks can be inserted in any direction in 15° increments in the standard mountings
️ Clamping straps on the vacuum block ring and magnets ensure secure fixation in the vacuum block mounting
️ The integrated touch valve allows vacuum blocks that are not currently in use to remain on the machine table
️ Highest holding forces in wood applications thanks to optimized seals and friction pads
️ Highest dimensional accuracy for more precision in the production process

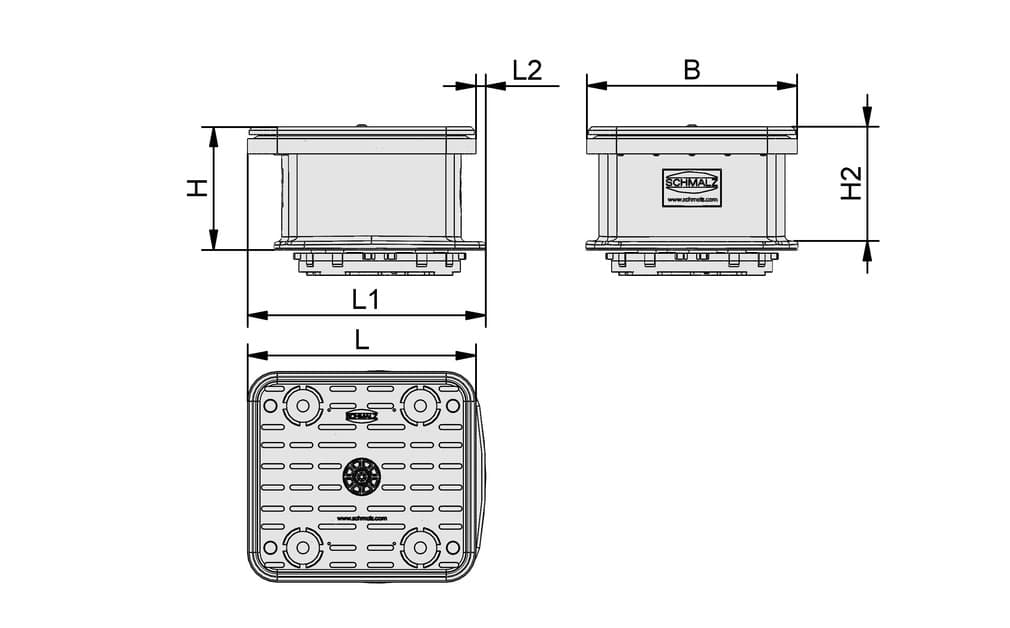

Width	Height		Overall length						Unit	Stock
129	29	26	140	146	6	TV Czujnik Krańcowy	10.01.12.03165	£112.37	Each	4 pcs
129	48	44	140	146	6	TV Czujnik Krańcowy	10.01.12.03169	£147.72	Each	-
129	74	70	140	146	6	TV Czujnik Krańcowy	10.01.12.03173	£195.65	Each	-

3 products
