Vacuum block VCBL-B 120x50

3 products in this series

Vacuum blocks for Biesse consoles

️ Top suction plate (1) for fixing the workpiece
️ Robust main body (2) made of plastic
️ Mechanical clamp (3)
️ Touch valve (4) made of soft plastic
️ Heights of 29 mm and 48 mm (for three and four-axis machines) and additionally 74 mm (for five-axis machines)

️ Hose-free vacuum clamping system from Schmalz for console tables from Biesse (single-circuit system)
️ Fully compatible with the OEM vacuum blocks, allowing mixed operation
️ The vacuum blocks can be inserted in any direction in 15° increments in the standard mountings
️ Clamping straps on the vacuum block ring and magnets ensure secure fixation in the vacuum block mounting
️ The integrated touch valve allows vacuum blocks that are not currently in use to remain on the machine table
️ Highest holding forces in wood applications thanks to optimized seals and friction pads
️ Highest dimensional accuracy for more precision in the production process

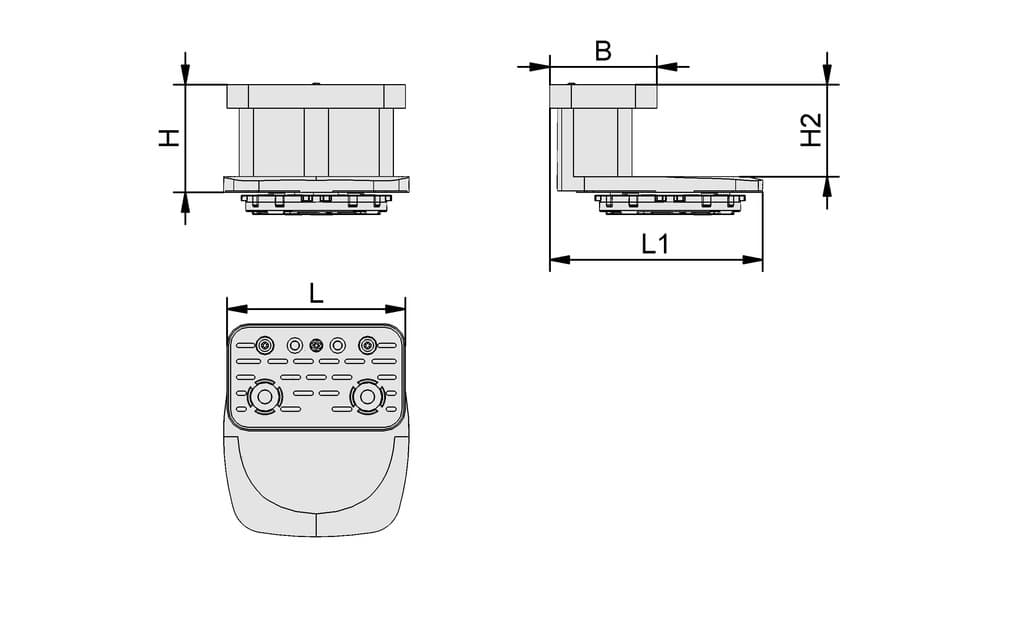

Width	Height		Overall length					Unit	Stock
50	29	19	120	146	TV Czujnik Krańcowy	10.01.12.03167	£116.20	Each	5 pcs
50	48	38	120	146	TV Czujnik Krańcowy	10.01.12.03171	£171.64	Each	2 pcs
50	74	64	120	146	TV Czujnik Krańcowy	10.01.12.03175	£212.83	Each	3 pcs

3 products
