SC01 series

30 products in this series

Finishing Router Bit Upcut Spiral D8mm Z3 Shank 8mm L80mm Positive High Feed — ITA Tools SC01.08.032.080.08L
Finishing Router Bit Upcut Spiral D8mm Z3 Shank 8mm L80mm Positive High Feed — ITA Tools SC01.08.032.080.08R
Finishing Router Bit Upcut Spiral D8mm Z3 Shank 8mm L90mm Positive High Feed — ITA Tools SC01.08.042.090.08R
Finishing Router Bit Upcut Spiral D8mm Z3 Shank 8mm L100mm Positive High Feed — ITA Tools SC01.08.052.100.08R
Finishing Router Bit Upcut Spiral D10mm Z3 Shank 10mm L80mm Positive High Feed — ITA Tools SC01.10.032.080.10L
Finishing Router Bit Upcut Spiral D10mm Z3 Shank 10mm L80mm Positive High Feed — ITA Tools SC01.10.032.080.10R
Finishing Router Bit Upcut Spiral D10mm Z3 Shank 10mm L90mm Positive High Feed — ITA Tools SC01.10.042.090.10L
Finishing Router Bit Upcut Spiral D10mm Z3 Shank 10mm L90mm Positive High Feed — ITA Tools SC01.10.042.090.10R
Finishing Router Bit Upcut Spiral D10mm Z3 Shank 10mm L100mm Positive High Feed — ITA Tools SC01.10.052.100.10R
Finishing Router Bit Upcut Spiral D12mm Z3 Shank 10mm L80mm Positive High Feed — ITA Tools SC01.12.035.080.10R
Finishing Router Bit Upcut Spiral D12mm Z3 Shank 12mm L83mm Positive High Feed — ITA Tools SC01.12.035.083.12R
Finishing Router Bit Upcut Spiral D12mm Z3 Shank 12mm L90mm Positive High Feed — ITA Tools SC01.12.042.090.12L
Finishing Router Bit Upcut Spiral D12mm Z3 Shank 12mm L90mm Positive High Feed — ITA Tools SC01.12.042.090.12R
Finishing Router Bit Upcut Spiral D12mm Z3 Shank 12mm L100mm Positive High Feed — ITA Tools SC01.12.052.100.12L
Finishing Router Bit Upcut Spiral D12mm Z3 Shank 12mm L100mm Positive High Feed — ITA Tools SC01.12.052.100.12R
Finishing Router Bit Upcut Spiral D12mm Z3 Shank 12mm L120mm Positive High Feed — ITA Tools SC01.12.070.130.12R
Finishing Router Bit Upcut Spiral D16mm Z3 Shank 16mm L90mm Positive High Feed — ITA Tools SC01.16.035.090.16L
Finishing Router Bit Upcut Spiral D16mm Z3 Shank 16mm L90mm Positive High Feed — ITA Tools SC01.16.035.090.16R
Finishing Router Bit Upcut Spiral D16mm Z3 Shank 16mm L110mm Positive High Feed — ITA Tools SC01.16.055.110.16L
Finishing Router Bit Upcut Spiral D16mm Z3 Shank 16mm L110mm Positive High Feed — ITA Tools SC01.16.055.110.16R
Finishing Router Bit Upcut Spiral D16mm Z3 Shank 16mm L120mm Positive High Feed — ITA Tools SC01.16.072.120.16L
Finishing Router Bit Upcut Spiral D16mm Z3 Shank 16mm L120mm Positive High Feed — ITA Tools SC01.16.072.120.16R
Finishing Router Bit Upcut Spiral D15.88mm Z3 Shank 16mm L54mm Positive High Feed — ITA Tools SC01.16.540.110.16R
Finishing Router Bit Upcut Spiral D18mm Z3 Shank 18mm L110mm Positive High Feed — ITA Tools SC01.18.055.110.18L
Finishing Router Bit Upcut Spiral D18mm Z3 Shank 18mm L110mm Positive High Feed — ITA Tools SC01.18.055.110.18R
Finishing Router Bit Upcut Spiral D20mm Z3 Shank 20mm L120mm Positive High Feed — ITA Tools SC01.20.060.120.20L
Finishing Router Bit Upcut Spiral D20mm Z3 Shank 20mm L120mm Positive High Feed — ITA Tools SC01.20.060.120.20R
Finishing Router Bit Upcut Spiral D20mm Z3 Shank 20mm L120mm Positive High Feed — ITA Tools SC01.20.070.120.20L
Finishing Router Bit Upcut Spiral D20mm Z3 Shank 20mm L120mm Positive High Feed — ITA Tools SC01.20.070.120.20R
Finishing Router Bit Upcut Spiral D20mm Z3 Shank 20mm L165mm Positive High Feed — ITA Tools SC01.20.102.165.20R

SC01 series

Solid Carbide Finishing Upcut Spiral Bits Z3 positive

Description

️ 3 flute spiral cutter
️ Positive - upward chip ejection
️ Finishing geometry

Application

Materials

Advantages

️ It is an extension of the Z2 milling cutter, featuring three teeth and three spirals, which allows for higher feed rates.
️ In the positive version, which determines the direction of chip removal, the bottom is smooth, and the top is roughened.

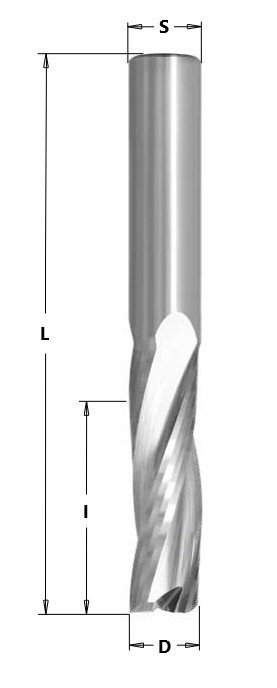

Diameter	Cutting length	Overall length		Shank diameter				Unit	Stock
8	32	80	LH	8	positive	SC01.08.032.080.08L	£37.02	Each	6 pcs
8	32	80	RH	8	positive	SC01.08.032.080.08R	£37.02	Each	10+ pcs
8	42	100	RH	8	positive	SC01.08.042.090.08R	£42.07	Each	10+ pcs
10	27	70	RH	10	positive	SC01.08.052.100.08R	£45.68	Each	10+ pcs
10	32	80	LH	10	positive	SC01.10.032.080.10L	£55.24	Each	10+ pcs
10	32	80	RH	10	positive	SC01.10.032.080.10R	£44.19£55.24-20%	Each	10+ pcs2 pcs
10	42	90	LH	10	positive	SC01.10.042.090.10L	£62.51	Each	10+ pcs
10	42	90	RH	10	positive	SC01.10.042.090.10R	£62.51	Each	10+ pcs
10	52	100	RH	10	positive	SC01.10.052.100.10R	£72.12	Each	10+ pcs
12	35	80	RH	10	positive	SC01.12.035.080.10R	£90.15	Each	10+ pcs
12	35	83	RH	12	positive	SC01.12.035.083.12R	£76.33	Each	10+ pcs
12	42	90	LH	12	positive	SC01.12.042.090.12L	£84.74	Each	4 pcs
12	42	90	RH	12	positive	SC01.12.042.090.12R	£84.74	Each	10+ pcs
12	52	100	LH	12	positive	SC01.12.052.100.12L	£89.55	Each	1 pc
12	52	100	RH	12	positive	SC01.12.052.100.12R	£89.55	Each	6 pcs
12	70	130	RH	12	positive	SC01.12.070.130.12R	£126.21	Each	Soon
16	35	90	LH	16	positive	SC01.16.035.090.16L	£127.18	Each	1 pc
16	35	90	RH	16	positive	SC01.16.035.090.16R	£127.18	Each	10+ pcs
16	55	110	LH	16	positive	SC01.16.055.110.16L	£156.63	Each	8 pcs
16	55	110	RH	16	positive	SC01.16.055.110.16R	£156.63	Each	10+ pcs
16	72	120	LH	16	positive	SC01.16.072.120.16L	£162.28	Each	-
16	72	120	RH	16	positive	SC01.16.072.120.16R	£162.28	Each	10+ pcs
18	55	110	LH	18	positive	SC01.18.055.110.18L	£195.93	Each	5 pcs
18	55	110	RH	18	positive	SC01.18.055.110.18R	£283.58	Each	-
20	60	120	LH	20	positive	SC01.20.060.120.20L	£260.24	Each	4 pcs
20	60	120	RH	20	positive	SC01.20.060.120.20R	£260.24	Each	8 pcs
20	70	120	LH	20	positive	SC01.20.070.120.20L	£383.00	Each	-
20	70	120	RH	20	positive	SC01.20.070.120.20R	£263.97	Each	10+ pcs
20	102	165	RH	20	positive	SC01.20.102.165.20R	£324.55	Each	10+ pcs

29 products

Sizes in inches

								Unit	Stock	Order
5/8	2-1/8	4-5/16	5/8	RH	positive	SC01.16.540.110.16R	£78.13	Each	5 pcs

1 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
