SB01 Series

50 products in this series

SB01 Series

Solid Carbide Finishing Upcut Spiral Bits Z2 positive

Description

️ 2 flute spiral cutter
️ Positive - upward chip ejection
️ Finishing geometry

Application

Materials

Advantages

️ Considered the best tool for cutting all types of solid wood, both dry and wet.
️ Can be used on hard, soft, and exotic wood. For exotic wood, the use of a coating is recommended.
️ Can be used on wood-based materials
however, it is not recommended due to faster dulling.
️ In the positive version, which determines the direction of chip removal, the bottom is smooth, and the top is roughened.

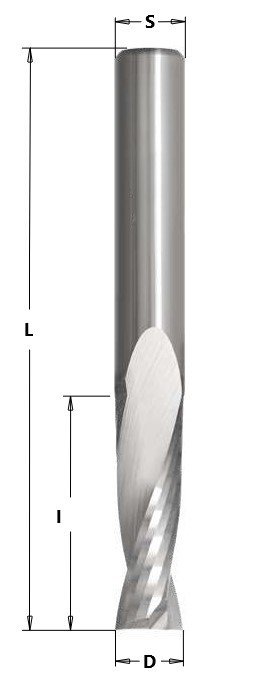

Diameter	Cutting length	Overall length		Shank diameter				Unit	Stock
2	9	60	RH	6	positive	SB01.02.009.050.06R	£21.64	Each	10+ pcs
3	12	50	LH	3	positive	SB01.03.012.050.03L	£13.10	Each	8 pcs
3	12	50	RH	3	positive	SB01.03.012.050.03R	£13.10	Each	10+ pcs
3	12	60	LH	6	positive	SB01.03.012.060.06L	£18.75	Each	1 pc
3	12	60	RH	6	positive	SB01.03.012.060.06R	£18.75	Each	10+ pcs
3	12	60	LH	8	positive	SB01.03.012.060.08L	£17.79	Each	10+ pcs
3	12	60	RH	8	positive	SB01.03.012.060.08R	£17.79	Each	10+ pcs
3	22	70	RH	6	positive	SB01.03.022.070.06R	£21.04	Each	10+ pcs
4	15	50	LH	4	positive	SB01.04.015.050.04L	£14.42	Each	-
4	15	50	RH	4	positive	SB01.04.015.050.04R	£14.42	Each	9 pcs
4	15	60	LH	6	positive	SB01.04.015.060.06L	£18.51	Each	10+ pcs
4	15	60	RH	6	positive	SB01.04.015.060.06R	£18.51	Each	10+ pcs
4	15	60	LH	8	positive	SB01.04.015.060.08L	£17.79	Each	3 pcs
4	15	60	RH	8	positive	SB01.04.015.060.08R	£17.79	Each	10+ pcs
4	27	70	RH	6	positive	SB01.04.027.070.06R	£20.43	Each	6 pcs
5	17	50	LH	5	positive	SB01.05.017.050.05L	£17.55	Each	-
5	17	50	RH	5	positive	SB01.05.017.050.05R	£17.55	Each	10+ pcs
5	17	60	LH	6	positive	SB01.05.017.060.06L	£18.51	Each	5 pcs
5	17	60	RH	6	positive	SB01.05.017.060.06R	£18.51	Each	10+ pcs
5	17	60	LH	8	positive	SB01.05.017.060.08L	£19.71	Each	-
5	17	60	RH	8	positive	SB01.05.017.060.08R	£19.71	Each	10+ pcs
6	22	60	RH	6	positive	SB01.06.022.060.06R	£19.23	Each	10+ pcs
6	27	70	LH	6	positive	SB01.06.027.070.06L	£20.43	Each	8 pcs
6	27	70	RH	6	positive	SB01.06.027.070.06R	£20.43	Each	10+ pcs
6	27	70	LH	8	positive	SB01.06.027.070.08L	£23.08	Each	-
6	27	70	RH	8	positive	SB01.06.027.070.08R	£23.08	Each	10+ pcs
7	32	80	LH	8	positive	SB01.07.032.080.08L	£33.18	Each	5 pcs
7	32	80	RH	8	positive	SB01.07.032.080.08R	£33.18	Each	2 pcs
8	22	70	RH	8	positive	SB01.08.022.070.08R	£29.45	Each	10+ pcs
8	32	80	LH	8	positive	SB01.08.032.080.08L	£28.13	Each	-
8	32	80	RH	8	positive	SB01.08.032.080.08R	£32.21	Each	10+ pcs
8	42	90	LH	8	positive	SB01.08.042.090.08L	£42.31	Each	-
8	42	90	RH	8	positive	SB01.08.042.090.08R	£42.31	Each	10+ pcs
9	32	83	RH	12	positive	SB01.09.032.083.12R	£93.38	Each	-
10	32	80	RH	8	positive	SB01.10.032.080.08R	£57.70	Each	10+ pcs
10	32	80	LH	10	positive	SB01.10.032.080.10L	£49.04	Each	5 pcs
10	32	80	RH	10	positive	SB01.10.032.080.10R	£49.04	Each	10+ pcs
10	32	83	RH	12	positive	SB01.10.032.083.12R	£81.50	Each	9 pcs
10	42	90	LH	10	positive	SB01.10.042.090.10L	£61.78	Each	8 pcs
10	42	90	RH	10	positive	SB01.10.042.090.10R	£61.78	Each	8 pcs
10	42	90	RH	12	positive	SB01.10.042.090.12R	£90.87	Each	-
12	35	83	RH	8	positive	SB01.12.035.083.08R	£72.12	Each	3 pcs
12	35	83	LH	12	positive	SB01.12.035.083.12L	£61.91	Each	10+ pcs
12	35	83	RH	12	positive	SB01.12.035.083.12R	£61.91	Each	10+ pcs
12	42	90	RH	12	positive	SB01.12.042.090.12R	£84.38	Each	10+ pcs
12	52	100	RH	12	positive	SB01.12.052.100.12R	£89.91	Each	Soon
16	35	90	RH	16	positive	SB01.16.035.090.16R	£115.40	Each	3 pcs
20	60	120	RH	20	positive	SB01.20.060.120.20R	£355.05	Each	-

48 products

Sizes in inches

								Unit	Stock	Order
1/8	1/2	2	1/4	RH	positive	SB01.32.127.508.64R	£18.94	Each	5 pcs
1/2	1-1/2	3-1/2	1/2	RH	positive	SB01.13.381.889.13R	£43.63	Each	3 pcs

2 products
