Adapter-Plate Innospann for Biesse console ISAP-B
Innospann adapter plates for Biesse consoles
Description
️ Adapter-Plate (1) base plate
️ Adapter-Ring (2) suitable for the suction cup mounts of the Biesse consoles
️ Mono-Base (3) for positioning on the top of the vacuum openings of the Adapter-Plate and suction cup (6) for fixing the workpiece are available as accessories
️ Spacer ring (5) for adjusting the height to the machining height of the machine
Advantages
️ Hose-free vacuum clamping system from Schmalz for console tables from Biesse (single-circuit system)
️ The Adapter-Plates are positioned directly into the suction cup mounts on the consoles
️ The Adapter-Plates can be flexibly equipped with up to four additional Mono-Bases ISMB and suction cups ISCUP
️ Particularly suitable for narrow and curved workpieces with small suction surfaces and delicate molds
️ The modular concept with connectible spacer rings enables various working heights, which allows for mixed use with suction cups from the original equipment manufacturer
️ Damage-free clamping with highest precision and holding force
️ Ideal for narrow and curved workpieces, as plates and vacuum blocks can be flexibly combined

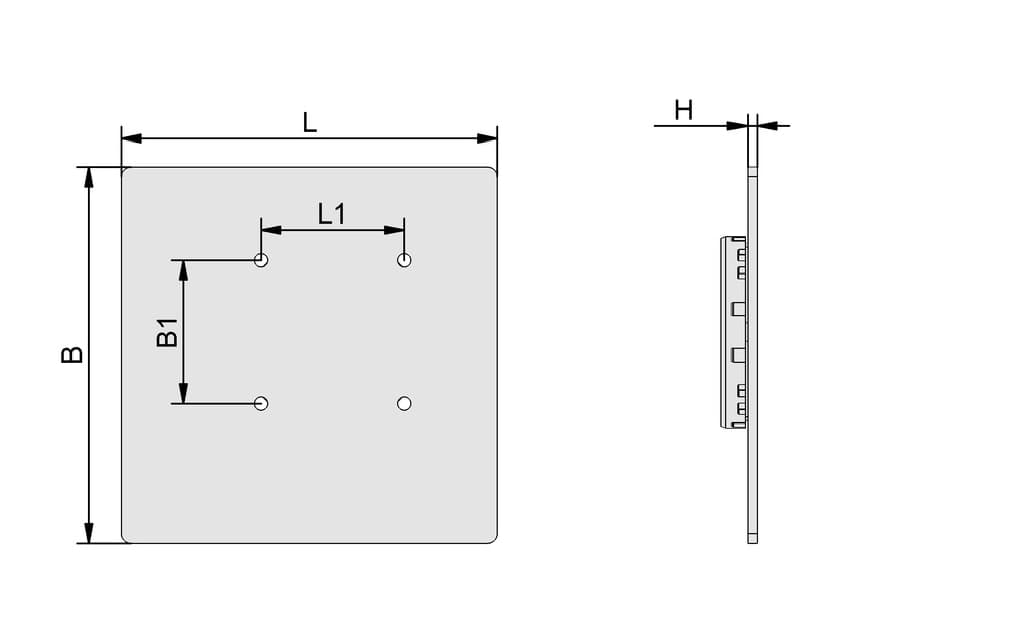

Width
Secondary width
Height
Overall length
Unit
Stock
Order
195
74.3
5
195
74.3
10.01.14.00109
£282.51
Each
Soon
1 products
London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
