HBH1 series

46 products in this series

Hinge Drilling Bit D14mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.140.057.1L
Hinge Drilling Bit D14mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.140.057.1R
Hinge Drilling Bit D15mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.150.057.1L
Hinge Drilling Bit D15mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.150.057.1R
Hinge Drilling Bit D16mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.160.057.1L
Hinge Drilling Bit D16mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.160.057.1R
Hinge Drilling Bit D17mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.170.057.1L
Hinge Drilling Bit D17mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.170.057.1R
Hinge Drilling Bit D18mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.180.057.1L
Hinge Drilling Bit D18mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.180.057.1R
Hinge Drilling Bit D19mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.190.057.1L
Hinge Drilling Bit D19mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.190.057.1R
Hinge Drilling Bit D20mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.200.057.1L
Hinge Drilling Bit D20mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.200.057.1R
Hinge Drilling Bit D22mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.220.057.1L
Hinge Drilling Bit D22mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.220.057.1R
Hinge Drilling Bit D24mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.240.057.1L
Hinge Drilling Bit D24mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.240.057.1R
Hinge Drilling Bit D25mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.250.057.1L
Hinge Drilling Bit D25mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.250.057.1R
Hinge Drilling Bit D26mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.260.057.1L
Hinge Drilling Bit D26mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.260.057.1R
Hinge Drilling Bit D28mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.280.057.1L
Hinge Drilling Bit D28mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.280.057.1R
Hinge Drilling Bit D30mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.300.057.1L
Hinge Drilling Bit D30mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.300.057.1R
Hinge Drilling Bit D32mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.320.057.1L
Hinge Drilling Bit D32mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.320.057.1R
Hinge Drilling Bit D34mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.340.057.1L
Hinge Drilling Bit D34mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.340.057.1R
Hinge Drilling Bit D35mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.350.057.1L
Hinge Drilling Bit D35mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.350.057.1R
Hinge Drilling Bit D38mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.380.057.1L
Hinge Drilling Bit D38mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.380.057.1R
Hinge Drilling Bit D40mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.400.057.1L
Hinge Drilling Bit D40mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.400.057.1R
Hinge Drilling Bit D42mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.420.057.1L
Hinge Drilling Bit D42mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.420.057.1R
Hinge Drilling Bit D45mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.450.057.1L
Hinge Drilling Bit D45mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.450.057.1R
Hinge Drilling Bit D50mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.500.057.1L
Hinge Drilling Bit D50mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.500.057.1R
Hinge Drilling Bit D55mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.550.057.1L
Hinge Drilling Bit D55mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.550.057.1R
Hinge Drilling Bit D60mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.600.057.1L
Hinge Drilling Bit D60mm L58mm Shank 10mm TCT Short Series for Hinge Cup Drilling — ITA Tools HBH1.600.057.1R

HBH1 series

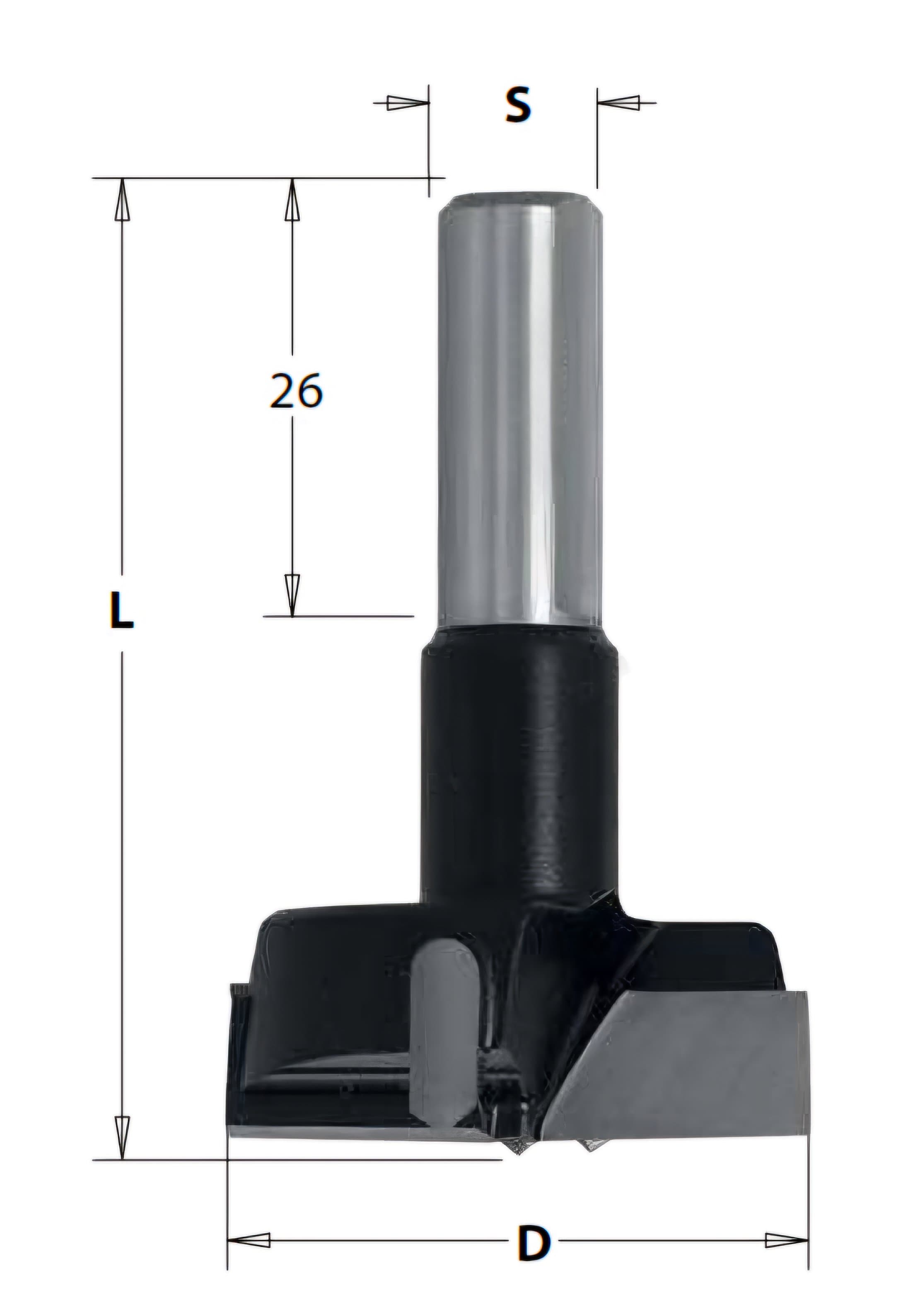

Hinge Boring Bits short

Description

️ Super-strength steel
️ Cutter portion coated with orange or black P.T.F.E.
️ HW head with precision balanced centre point
️ HW precision ground cutting edges [Z2]
️ 2 negatively ground spurs [V2]
️ Parallel shank with driving flat and length adjusting screw

Technical details

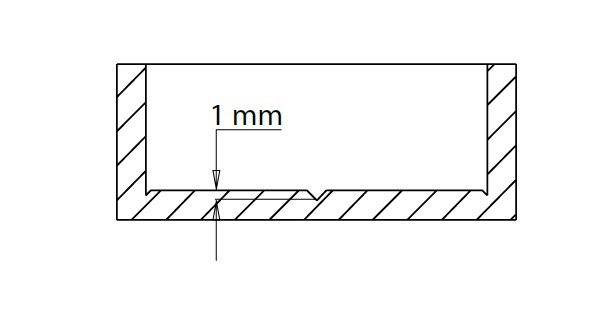

Ideal for hinges. Use on boring machines equipped with adapters or chucks. Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.

Diameter	Overall length		Shank diameter			Unit	Stock
14	57.5	LH	10	HBH1.140.057.1L	£26.57	Each	5 pcs
14	57.5	RH	10	HBH1.140.057.1R	£26.57	Each	5 pcs
15	57.5	LH	10	HBH1.150.057.1L	£26.57	Each	5 pcs
15	57.5	RH	10	HBH1.150.057.1R	£26.57	Each	5 pcs
16	57.5	LH	10	HBH1.160.057.1L	£27.01	Each	5 pcs
16	57.5	RH	10	HBH1.160.057.1R	£27.01	Each	5 pcs
17	57.5	LH	10	HBH1.170.057.1L	£28.57	Each	5 pcs
17	57.5	RH	10	HBH1.170.057.1R	£28.57	Each	5 pcs
18	57.5	LH	10	HBH1.180.057.1L	£27.80	Each	5 pcs
18	57.5	RH	10	HBH1.180.057.1R	£27.80	Each	5 pcs
19	57.5	LH	10	HBH1.190.057.1L	£27.80	Each	6 pcs
19	57.5	RH	10	HBH1.190.057.1R	£27.80	Each	5 pcs
20	57.5	LH	10	HBH1.200.057.1L	£27.80	Each	5 pcs
20	57.5	RH	10	HBH1.200.057.1R	£27.80	Each	5 pcs
22	57.5	LH	10	HBH1.220.057.1L	£31.25	Each	5 pcs
22	57.5	RH	10	HBH1.220.057.1R	£31.25	Each	5 pcs
24	57.5	LH	10	HBH1.240.057.1L	£33.04	Each	5 pcs
24	57.5	RH	10	HBH1.240.057.1R	£33.04	Each	5 pcs
25	57.5	LH	10	HBH1.250.057.1L	£31.60	Each	5 pcs
25	57.5	RH	10	HBH1.250.057.1R	£31.60	Each	5 pcs
26	57.5	LH	10	HBH1.260.057.1L	£31.60	Each	5 pcs
26	57.5	RH	10	HBH1.260.057.1R	£31.60	Each	5 pcs
28	57.5	LH	10	HBH1.280.057.1L	£36.16	Each	5 pcs
28	57.5	RH	10	HBH1.280.057.1R	£36.16	Each	5 pcs
30	57.5	LH	10	HBH1.300.057.1L	£35.05	Each	5 pcs
30	57.5	RH	10	HBH1.300.057.1R	£35.05	Each	5 pcs
32	57.5	LH	10	HBH1.320.057.1L	£38.62	Each	5 pcs
32	57.5	RH	10	HBH1.320.057.1R	£38.62	Each	5 pcs
34	57.5	LH	10	HBH1.340.057.1L	£38.62	Each	5 pcs
34	57.5	RH	10	HBH1.340.057.1R	£38.62	Each	5 pcs
35	57.5	LH	10	HBH1.350.057.1L	£35.61	Each	5 pcs
35	57.5	RH	10	HBH1.350.057.1R	£35.61	Each	5 pcs
38	57.5	LH	10	HBH1.380.057.1L	£44.32	Each	5 pcs
38	57.5	RH	10	HBH1.380.057.1R	£44.32	Each	5 pcs
40	57.5	LH	10	HBH1.400.057.1L	£44.32	Each	5 pcs
40	57.5	RH	10	HBH1.400.057.1R	£44.32	Each	5 pcs
42	57.5	LH	10	HBH1.420.057.1L	£49.34	Each	5 pcs
42	57.5	RH	10	HBH1.420.057.1R	£49.34	Each	5 pcs
45	57.5	LH	10	HBH1.450.057.1L	£53.58	Each	5 pcs
45	57.5	RH	10	HBH1.450.057.1R	£53.58	Each	5 pcs
50	57.5	LH	10	HBH1.500.057.1L	£56.60	Each	5 pcs
50	57.5	RH	10	HBH1.500.057.1R	£56.60	Each	5 pcs
55	57.5	LH	10	HBH1.550.057.1L	£59.50	Each	5 pcs
55	57.5	RH	10	HBH1.550.057.1R	£59.50	Each	5 pcs
60	57.5	LH	10	HBH1.600.057.1L	£61.06	Each	5 pcs
60	57.5	RH	10	HBH1.600.057.1R	£61.06	Each	5 pcs

46 products

Spare parts

Height		Overall length				Unit	Stock
6	3.5	18	HC20	18635	Inquire	Set of 10	-
5.7	3.5	18		KPR.18.06.03	£19.11	Each	-
14	2	14	HC20	114204	£154.20	Set of 10	4,3 sets
14	2.5	14	HC20	114254	£160.39	Set of 10	2 sets
18	2.95	18	HC20	182954	Inquire	Set of 10	-
18	3.7	18	HC20	18374	£137.89	Set of 10	0,5 sets
20	4	20		202564	Inquire	Each	-
20	2.5	20		2035625	£32.37	Each	2 pcs
13	4	24.5	MG18	245134	£21.83	Each	10+ pcs
13	5	24.5	MG18	245135	Inquire	Each	-
16	3.2	34	HC35	163432	Inquire	Each	-
16	4	34	HC35	16344	Inquire	Each	-
16	5	34	HC35	16345	Inquire	Each	-
16	6	34	HC35	16346	Inquire	Each	-
16	7	34	HC35	16347	Inquire	Each	-
16	3	34		341603	£26.79	Each	1 pc
8	4	19	HC20	11884	Inquire	Set of 10	-
40	4		SP	690.000	£14.08	Each	10+ pcs
40	4		SP	690.001	£14.08	Each	8 pcs
40	4		SP	690.002	£14.08	Each	1 pc
40	4		SP	690.003	£14.08	Each	-
40	4		SP	690.004	£14.08	Each	4 pcs
40	4		SP	690.005	£14.08	Set of 2	10+ sets
40	4		SP	690.006	£14.08	Each	-
40	4		SP	690.007	£14.08	Each	2 pcs
40	4		SP	690.008	£14.08	Each	Soon
40	4		SP	690.009	£14.08	Set of 2	Soon
40	4		SP	690.010	£14.08	Each	-
40	4		SP	690.011	£14.08	Each	1 pc
40	4		SP	690.012	£14.08	Each	-
40	4		SP	690.013	£14.08	Set of 2	-
40	4		SP	690.014	£14.08	Each	-
40	4		SP	690.015	£14.08	Each	Soon
40	4		SP	690.016	£14.08	Each	3 pcs
40	4		SP	690.017	£14.08	Each	10+ pcs
40	4		SP	690.018	£14.08	Each	-
40	4		SP	690.019	£14.08	Each	-
40	4		SP	690.020	£14.08	Each	-
40	4		SP	690.021	£14.08	Set of 2	1 set
40	4		SP	690.022	£14.08	Set of 2	-
40	4		SP	690.023	£14.08	Set of 2	-
40	4		SP	690.024	£14.08	Each	-
40	4		SP	690.025	£14.08	Each	2 pcs
40	4		SP	690.026	£14.08	Set of 2	-
40	4		SP	690.027	£14.08	Each	-
40	4		SP	690.028	£14.08	Each	-
40	4		SP	690.029	£14.08	Each	1 pc
40	4		SP	690.030	£14.08	Set of 2	1 set
40	4		SP	690.031	£14.08	Each	1 pc
40	4		SP	690.032	£14.08	Set of 2	-
