£330.04per pc
H6FPDXTH06.A100M

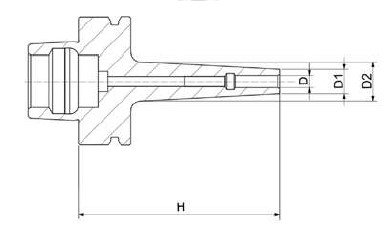

Hheight
100mm
D₁D1
6mm
D₂D2
12mm
D₃D3
19.3mm
FREE delivery in 4–7 working daysEU 2
21 products in this series
Chuck THERMO SLIM extended body for CNC machines
Precise THERMO chuck allows perfect connection the tool with chuck. Thermal clamping the shank in the chuck guarantee low vibration below 3μm. For self-assembly, the tool in the chuck is necessary additional instrumentation.
Showing 12 of 21 sizes
Secondary diameter | Tertiary diameter | Height | Unit | Stock | Delivery | Order | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 12 | 19.3 | 100 | HSK63F | RH/LH | H6FPDXTH06.A100M | £330.04 | Each | UK 0EU 2 | 4–7 working days | |
| 6 | 12 | 24.8 | 150 | HSK63F | RH/LH | H6FPDXTH06.A150M | £354.94 | Each | UK 0EU 2 | 4–7 working days | |
| 6 | 12 | 29.7 | 200 | HSK63F | RH/LH | H6FPDXTH06.A200M | £448.34 | Each | UK 0Special order | 14–21 working days | |
| 8 | 21 | 28.3 | 100 | HSK63F | RH/LH | H6FPDXTH08.A100M | £261.53 | Each | UK 0EU 2 | 4–7 working days | |
| 8 | 21 | 33.5 | 150 | HSK63F | RH/LH | H6FPDXTH08.A150M | £348.71 | Each | UK 0EU 3 | 4–7 working days | |
| 8 | 21 | 38.7 | 200 | HSK63F | RH/LH | H6FPDXTH08.A200M | £425.92 | Each | UK 0EU 1 | 4–7 working days | |
| 10 | 16 | 23.2 | 100 | HSK63F | RH/LH | H6FPDXTH10.A100M | £330.04 | Each | UK 0EU 3 | 4–7 working days | |
| 10 | 16 | 28.5 | 150 | HSK63F | RH/LH | H6FPDXTH10.A150M | £354.94 | Each | UK 0EU 2 | 4–7 working days | |
| 10 | 16 | 33.7 | 200 | HSK63F | RH/LH | H6FPDXTH10.A200M | £425.92 | Each | UK 0Special order | 14–21 working days | |
| 12 | 18 | 25.3 | 100 | HSK63F | RH/LH | H6FPDXTH12.A100M | £342.49 | Each | UK 0EU 2 | 4–7 working days | |
| 12 | 18 | 30.5 | 150 | HSK63F | RH/LH | H6FPDXTH12.A150M | £354.94 | Each | UK 0EU 3 | 4–7 working days | |
| 12 | 18 | 35.7 | 200 | HSK63F | RH/LH | H6FPDXTH12.A200M | £448.34 | Each | UK 0EU 2 | 4–7 working days | |
| 16 | 22 | 29.26 | 100 | HSK63F | RH/LH | H6FPDXTH16.A100M | £342.49 | Each | UK 0EU 2 | 4–7 working days | |
| 16 | 22 | 34.2 | 150 | HSK63F | RH/LH | H6FPDXTH16.A150M | £330.04 | Each | UK 0EU 1 | 4–7 working days | |
| 16 | 22 | 35 | 200 | HSK63F | RH/LH | H6FPDXTH16.A200M | £425.92 | Each | UK 0EU 2 | 4–7 working days | |
| 20 | 26 | 32.9 | 100 | HSK63F | RH/LH | H6FPDXTH20.A100M | £342.49 | Each | UK 0EU 1 | 4–7 working days | |
| 20 | 26 | 38.2 | 150 | HSK63F | RH/LH | H6FPDXTH20.A150M | £342.49 | Each | UK 0EU 2 | 4–7 working days | |
| 20 | 26 | 43.5 | 200 | HSK63F | RH/LH | H6FPDXTH20.A200M | £425.92 | Each | UK 0EU 2 | 4–7 working days | |
| 25 | 31 | 38.56 | 100 | HSK63F | RH/LH | H6FPDXTH25.A100M | £342.49 | Each | UK 0EU 3 | 4–7 working days | |
| 25 | 31 | 43.7 | 150 | HSK63F | RH/LH | H6FPDXTH25.A150M | £342.49 | Each | UK 0EU 2 | 4–7 working days | |
| 25 | 31 | 46 | 200 | HSK63F | RH/LH | H6FPDXTH25.A200M | £425.92 | Each | UK 0EU 2 | 4–7 working days |
