FVH series | Smarter Production

FVH series

1 products in this series

Bending Router Bit D10mm Z1 Shank 10mm L50mm 90° V-Groove Solid Carbide for DIBOND & ALUCOBOND 1.8mm — ITA Tools FVH.10.004.050.10Ra1

FVH series

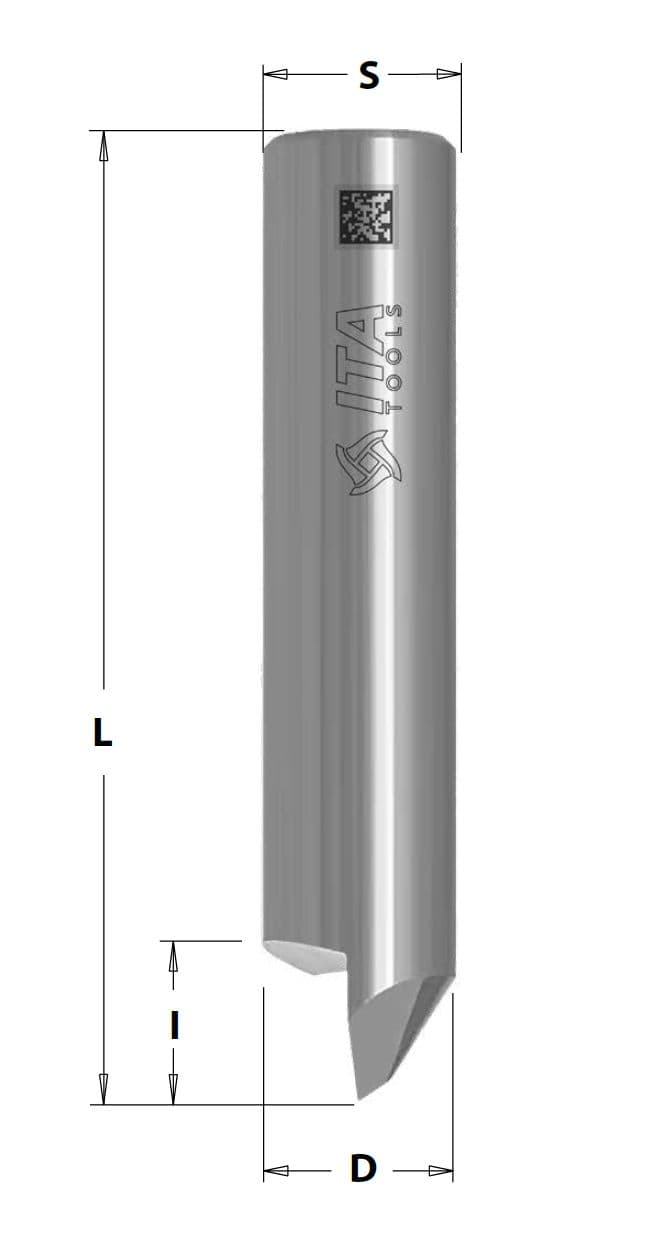

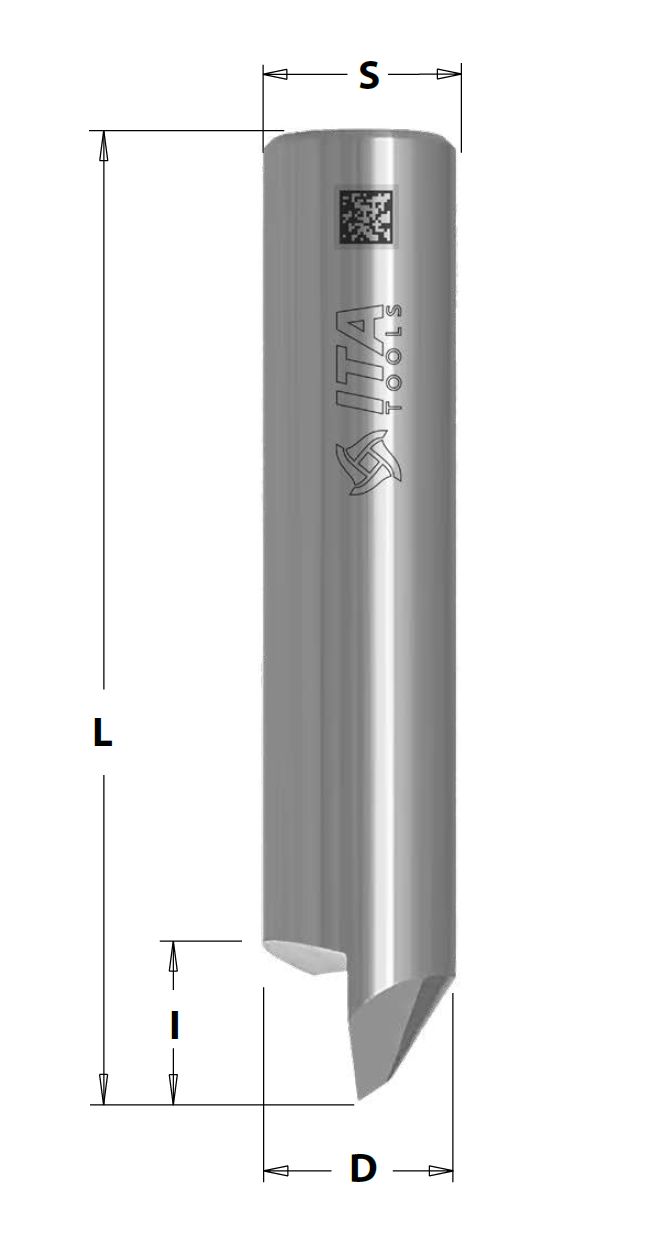

Technical drawing

FVH series

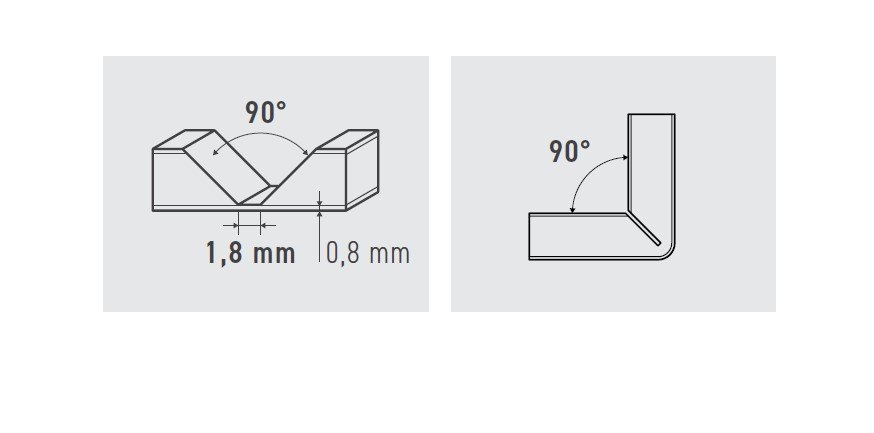

Solid Carbide Bending Bits for DIBOND® ALUCOBOND® 1,8 mm

Description

️ Dibond bend cutter 1,8mm
️ Special type of carbide - increased tool life
️ Possibility of using variety coatings
️ Work parameters:
RPM 20 000-22 000
feed 4-8 m/min

Application

Materials

Diameter	Cutting length	Overall length	Shank diameter				Unit	Stock	Order
10	4.12	50	10	90°	FVH.10.004.050.10Ra1	£25.12	Each	9 pcs

1 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
