FVH series

4 products in this series

V-Groove Bending Router Bit D16mm Z2 Shank 10mm L60mm for Dibond & Alucobond Composite Panels — ITA Tools FVH.16.015.060.10Ra1
V-Groove Bending Router Bit D16mm Z2 Shank 12mm L60mm for Dibond & Alucobond Composite Panels — ITA Tools FVH.16.015.060.12Ra1
V-Groove Bending Router Bit D16mm Z2 Shank 12mm L60mm for Dibond & Alucobond Composite Panels — ITA Tools FVH.16.015.060.12Ra2
V-Groove Bending Router Bit D18mm Z2 Shank 12mm L60mm for Dibond & Alucobond Composite Panels — ITA Tools FVH.18.015.060.12Ra3

FVH series

Solid Carbide Bending Bits for DIBOND® ALUCOBOND®

Description

️ Chamfer cutter, 3 different types: V-22,5°, V-30°, V-45°
️ Special type of carbide - increased tool life
️ Possibility of using variety coatings
️ Work parameters:
RPM 20 000-22 000
feed 4-8 m/min

Technical details

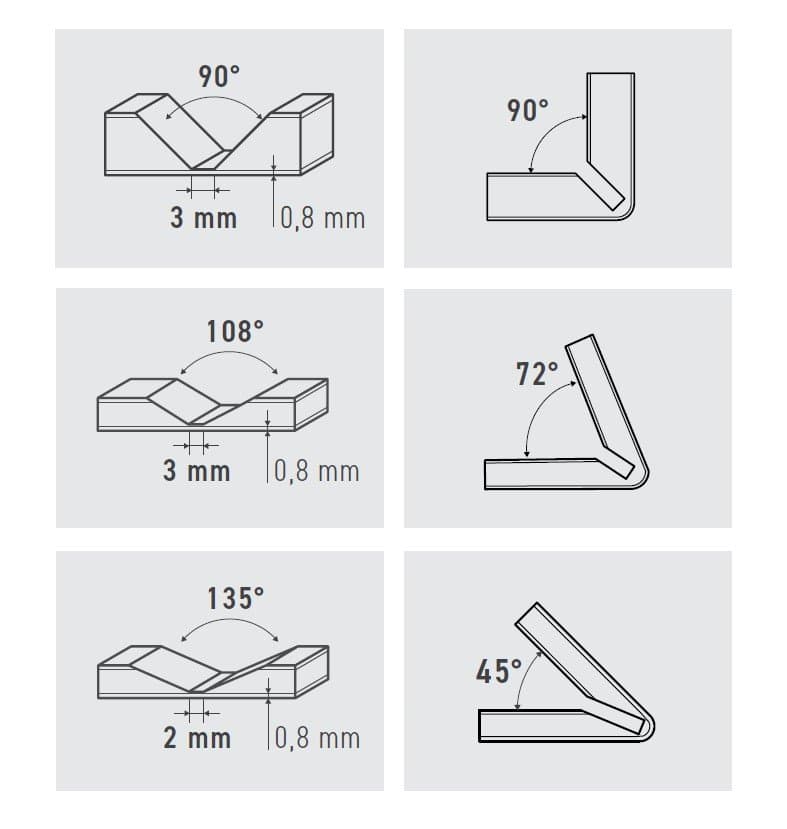

For making bends in composite material of the DIBOND® type. Designed for use on CNC machines.

Application

Materials

Swipe · tap to enlarge

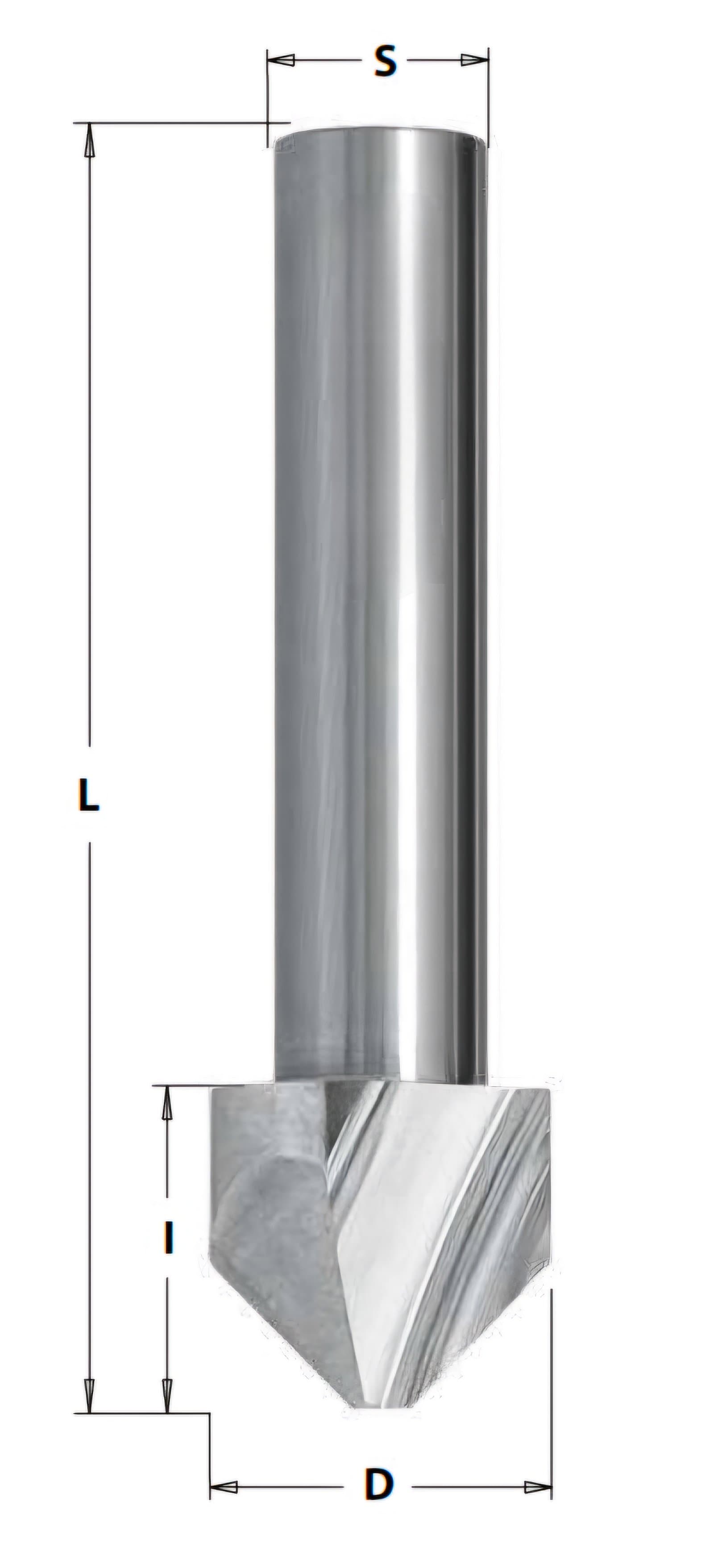

Dcutting Ø

Icutting length

Loverall length

Sshank Ø

αangle

Same on all 4 productsLOverall length 60 mm

Dcutting Ø (mm)

Showing 4 of 4 sizes

Ø 16 × 15mm

£109.82per pc

Dcutting Ø×Icutting length

FVH.16.015.060.10Ra1

Sshank10 mmαangle90°

FREE delivery in 4–7 working daysEU 2

Ø 16 × 15mm

£115.48per pc

Dcutting Ø×Icutting length

FVH.16.015.060.12Ra1

Sshank12 mmαangle90°

FREE delivery in 4–7 working daysEU 10+

Ø 16 × 15mm

£115.48per pc

Dcutting Ø×Icutting length

FVH.16.015.060.12Ra2

Sshank12 mmαangle108°

FREE delivery in 14–21 working daysSpecial order

Ø 18 × 15mm

£98.49per pc

Dcutting Ø×Icutting length

FVH.18.015.060.12Ra3

Sshank12 mmαangle135°

FREE delivery in 4–7 working daysEU 5

Diameter	Cutting length	Overall length	Shank diameter				Unit	Stock	Delivery
16	15	60	10	90°	FVH.16.015.060.10Ra1	£109.82	Each	UK 0EU 2	4–7 working days
16	15	60	12	90°	FVH.16.015.060.12Ra1	£115.48	Each	UK 0EU 10+	4–7 working days
16	15	60	12	108°	FVH.16.015.060.12Ra2	£115.48	Each	UK 0Special order	14–21 working days
18	15	60	12	135°	FVH.18.015.060.12Ra3	£98.49	Each	UK 0EU 5	4–7 working days

4 products

UKLondon stock — order by 11:00, next working dayEUITA warehouse — usually 4–7 working daysEU sooncoming soon — delivery up to 2 weeksSpecial order14–21 working daysFree UK delivery over £50

FVH series

Solid Carbide Bending Bits for DIBOND® ALUCOBOND®

Description

️ Chamfer cutter, 3 different types: V-22,5°, V-30°, V-45°
️ Special type of carbide - increased tool life
️ Possibility of using variety coatings
️ Work parameters:
RPM 20 000-22 000
feed 4-8 m/min

Technical details

For making bends in composite material of the DIBOND® type. Designed for use on CNC machines.

Application

Materials

Diameter

Cutting length

Overall length

Shank diameter

Unit

Stock

Delivery

Order

90°

FVH.16.015.060.10Ra1

£109.82

Each

UK 0EU 2

4–7 working days

90°

FVH.16.015.060.12Ra1

£115.48

Each

UK 0EU 10+

4–7 working days

108°

FVH.16.015.060.12Ra2

£115.48

Each

UK 0Special order

14–21 working days

135°

FVH.18.015.060.12Ra3

£98.49

Each

UK 0EU 5

4–7 working days
