FVH series | Smarter Production

FVH series

3 products in this series

V-Groove Router Bit Z2 Shank 12mm Solid Carbide for Aluminium Composite Panel Bending — ITA Tools FVH.12.006.070.12R4
V-Groove Router Bit D14mm Z2 Shank 14mm Solid Carbide for Aluminium Composite Panel Bending — ITA Tools FVH.14.010.055.14R
V-Groove Router Bit D20mm Z2 Shank 20mm Solid Carbide for Aluminium Composite Panel Bending — ITA Tools FVH.20.007.070.20R

FVH series

FVH series

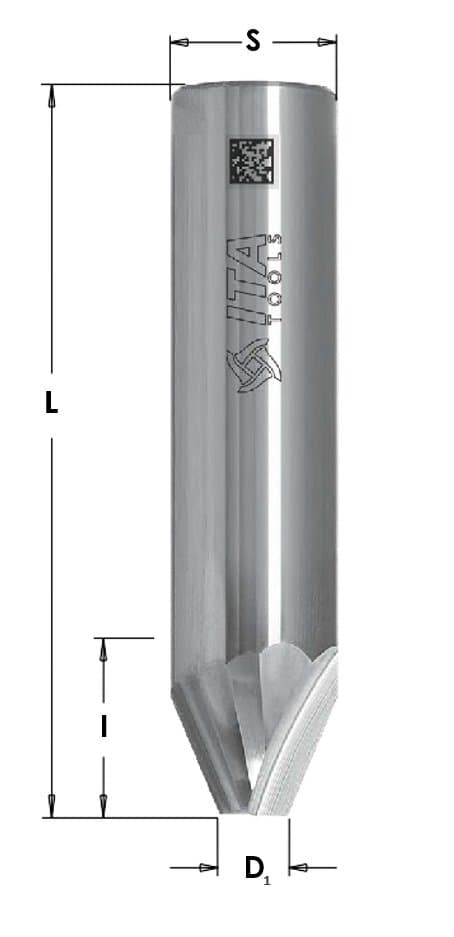

Solid Carbide Bending Bits for Composite Board AL/PE/ AL

Description

️ Chamfer cutter, 3 different types: V-22,5°, V-30°, V-45°
️ Special type of carbide - increased tool life
️ Possibility of using variety coatings
️ Work parameters:
RPM 20 000-22 000
feed 4-8 m/min

Technical details

For making bends in composite material of the DIBOND® type. Designed for use on CNC machines.

Application

Materials

Diameter	Secondary diameter	Cutting length	Overall length	Shank diameter				Unit	Stock	Order
12		6	70	12	90°	FVH.12.006.070.12R4	£89.29	Each	3 pcs
14	5.7	10	55	14	22.5°	FVH.14.010.055.14R	£66.30	Each	7 pcs
20	3	7.5	70	20	45°	FVH.20.007.070.20R	£110.40	Each	4 pcs

3 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
