FDI series

6 products in this series

Diamond PCD Profile Router Bit D20mm Z2+2 Shank 20mm with Radius for Nesting — ITA Tools FDI.20.019.20.0SR
Diamond PCD Profile Router Bit D22mm Z2+2 Shank 20mm with Radius for Nesting — ITA Tools FDI.22.019.20.0SR
Diamond PCD Profile Router Bit D23mm Z2+1 Shank 20mm with Radius for Nesting — ITA Tools FDI.23.018.20.0SR
Diamond PCD Profile Router Bit D26mm Z2+1 Shank 20mm with Radius for Nesting — ITA Tools FDI.26.016.20.0SR
Diamond PCD Profile Router Bit D28mm Z2+1 Shank 20mm with Radius for Nesting — ITA Tools FDI.28.024.20.0SR
Diamond PCD Profile Router Bit D30mm Z1+1 Shank 16mm with Radius for Nesting — ITA Tools FDI.30.018.16.0SR

FDI series

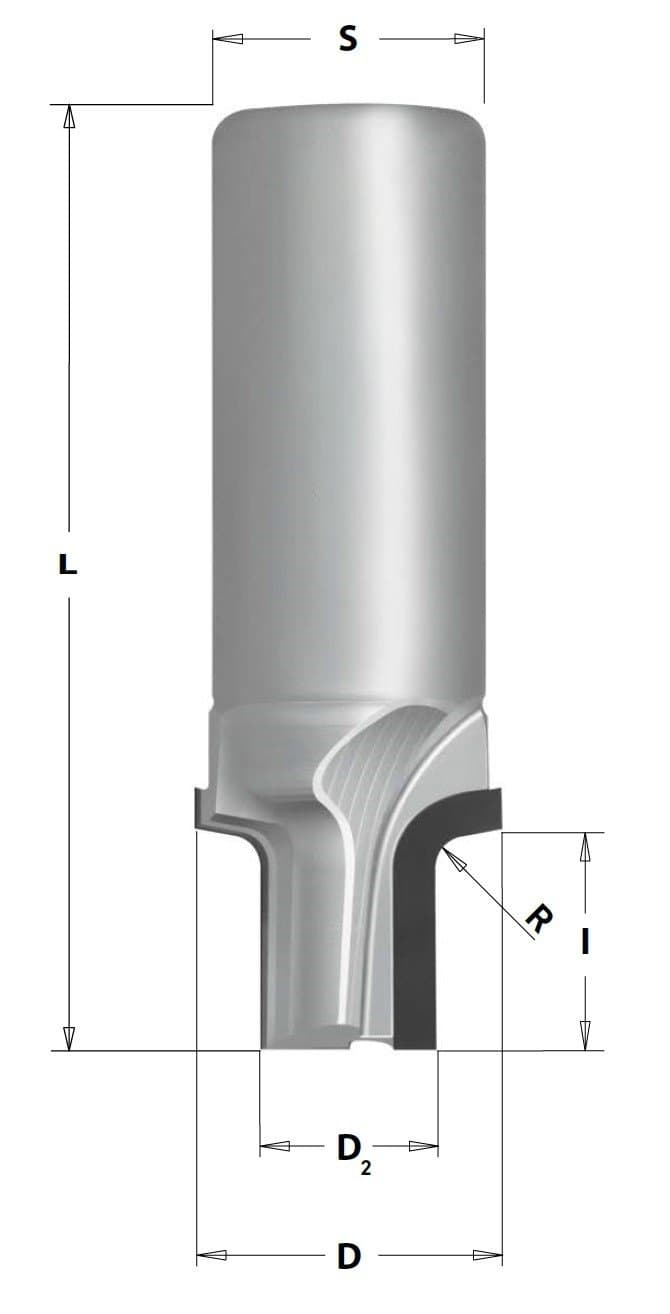

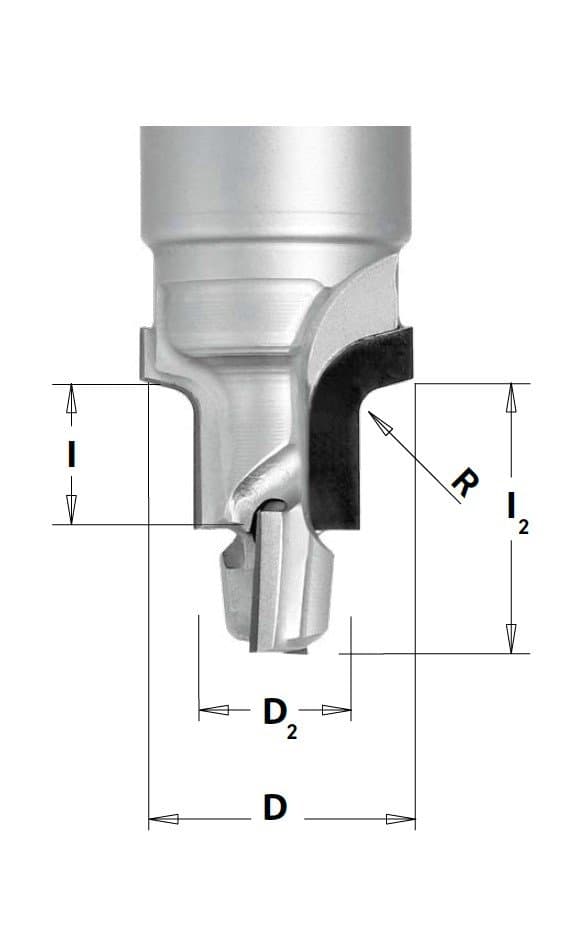

Technical drawing

FDI series

Diamond Proﬁle Router Bits with Radius

Description

️ Two full PCD blades
️ Body made from stainless steel > 28 HRC
️ Can be resharpened:
H3 - (3-4 sharpening operations),
H4 - (3-5 sharpening operations)

Application

Materials

Advantages

️ Profile and semi-profile cutters are mainly used for nesting, allowing simultaneous cutting and edge processing (radius or chamfer) in a single pass.
️ Although they work at a lower speed (5-8 m/min), they save time by combining two operations into one. They are particularly popular in some countries where two operations are combined in one pass, saving time and increasing efficiency.

Diameter	Tertiary diameter	Head diameter	Cutting length	Overall length		Radius	Shank diameter	Number of flutes			Unit	Stock	Order
20	12	4	20	79	RH	2	20	2+2	FDI.20.019.20.0SR	£240.25	Each	4 pcs
22	12	4	19	79	RH	3	20	2+2	FDI.22.019.20.0SR	£240.25	Each	6 pcs
23	12	3	18	79	RH	3	20	2+1	FDI.23.018.20.0SR	£164.08	Each	5 pcs
26	16	4	16	75	RH	3	20	2	FDI.26.016.20.0SR	£234.40	Each	3 pcs
26	1	4	24	84	RH	3	20	2	FDI.28.024.20.0SR	£275.42	Each	6 pcs
30	16	4	18	83	RH	5	16	2	FDI.30.018.16.0SR	£251.98	Each	4 pcs

6 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
