FDH series for Bending | Smarter Production

FDH series for Bending

2 products in this series

Diamond Router Bit D12mm Z1 Shank 12mm PCD for Bending Etalbond® A2 Composite Panels — ITA Tools FDH.12.006.12.0SR
Diamond Router Bit D18.5mm Z2 Shank 16mm PCD for Bending Etalbond® A2 Composite Panels — ITA Tools FDH.18.007.16.0SR

FDH series for Bending

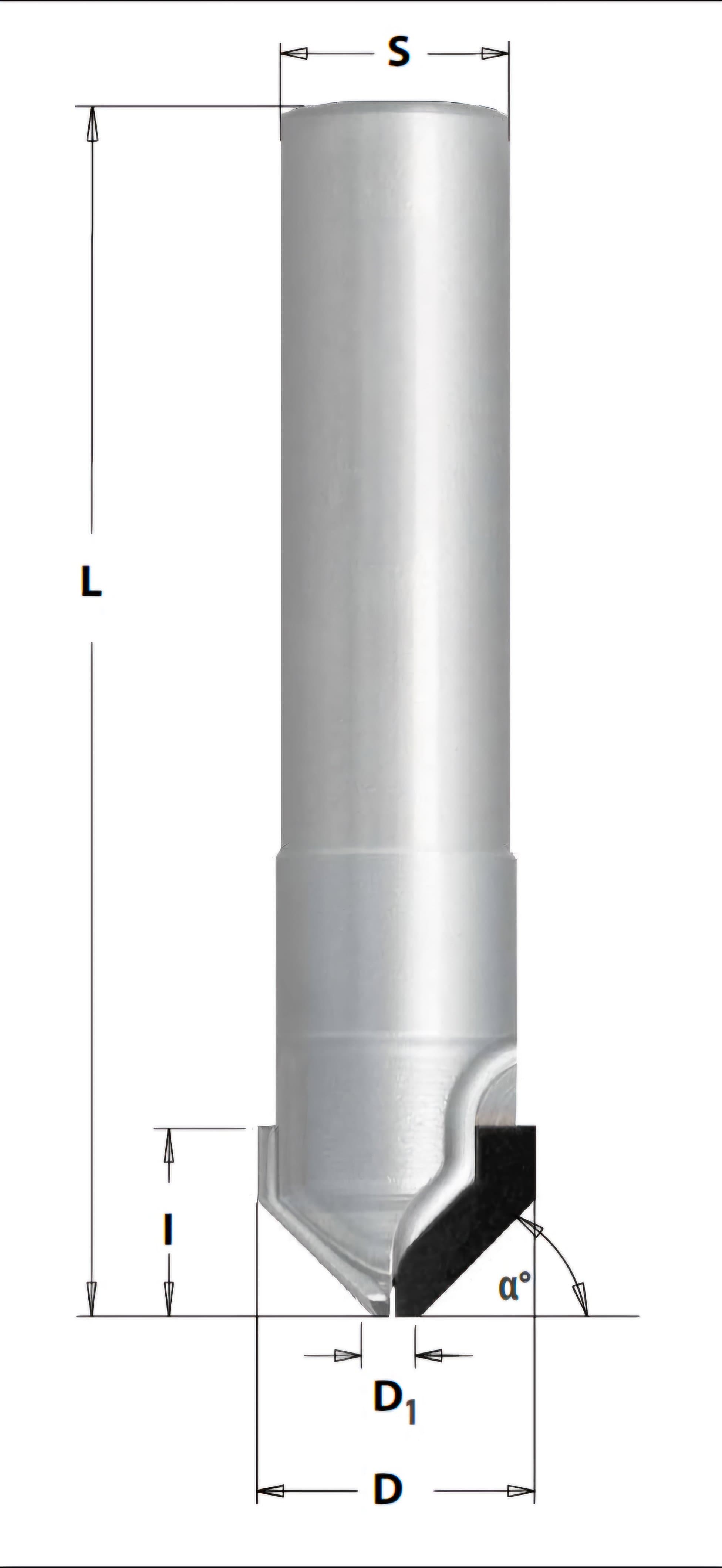

Technical drawing

FDH series for Bending

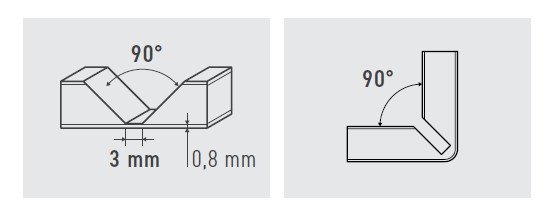

Diamond Router Bits Z2 for Bending Etalbond® A2

Description

️ Full double PCD tips,
️ Body made from stainless steel > 28 HRC
️ Approval class of shank H6
️ The shank surface roughness Ra ≤0,3 μm
️ Height of PCD tip 4 mm
️ Can be resharpened (3-4 times)
️ Work parameters:
RPM 20 000-22 000
feed 4-8 m/min

Application

Materials

Advantages

Excelent finish of machining elements, quiet work.

Diameter	Secondary diameter	Cutting length	Overall length		Shank diameter				Unit	Stock	Order
12	2	6	55	RH	12	45°	FDH.12.006.12.0SR	£164.08	Each	2 pcs
18	3	7.75	50	RH	16	45°	FDH.18.007.16.0SR	£216.81	Each	6 pcs

2 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
