Ø 22 × 11mm
£130.78per pc
Dcutting Ø×Icutting length
FDH.22.011.16.0SR
Loverall
75mm
Sshank
16mm
Zedges
1
αangle
45°
D₂D2
0mm
I₂I2
0mm
FREE delivery in 4–7 working daysEU 7
8 products in this series

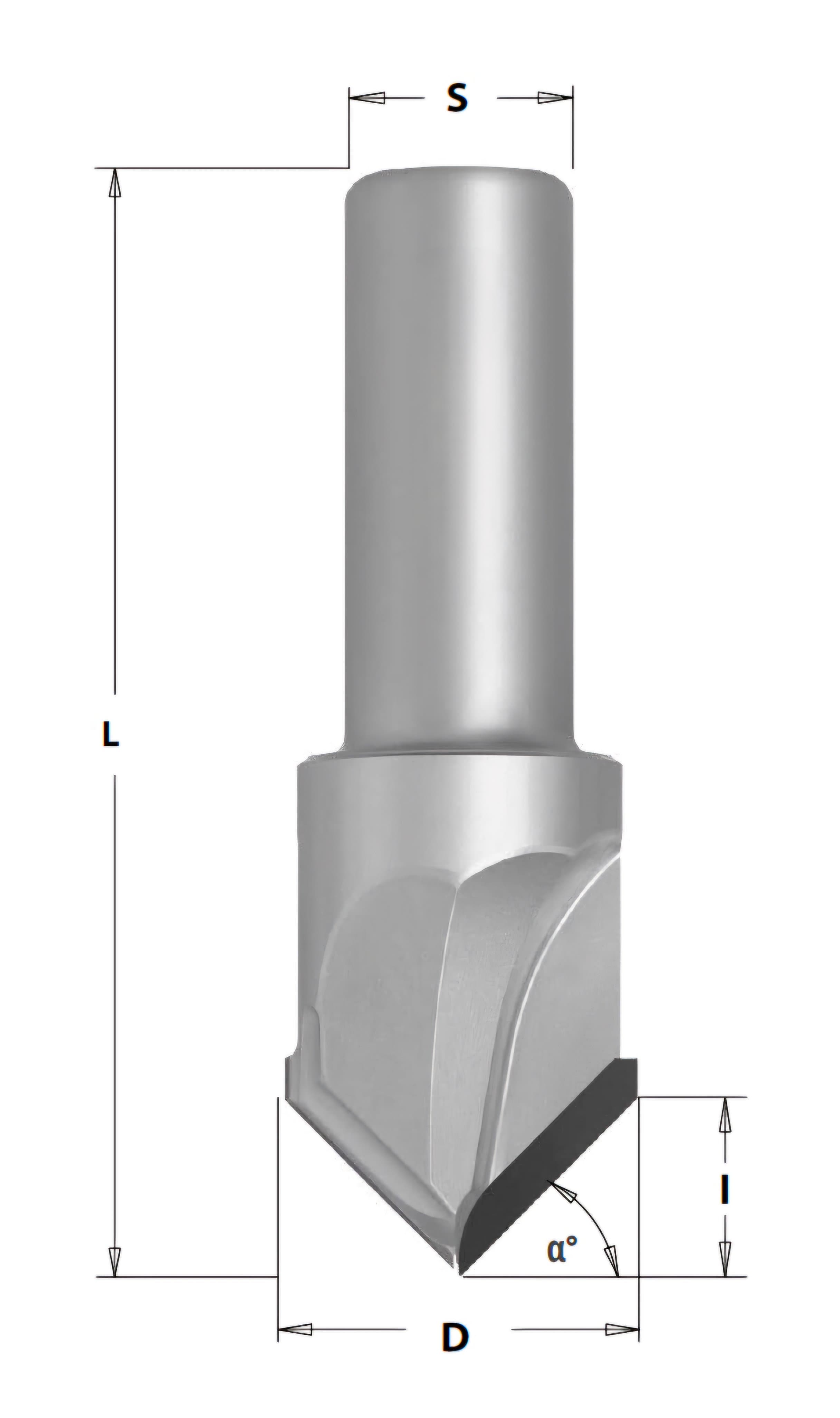

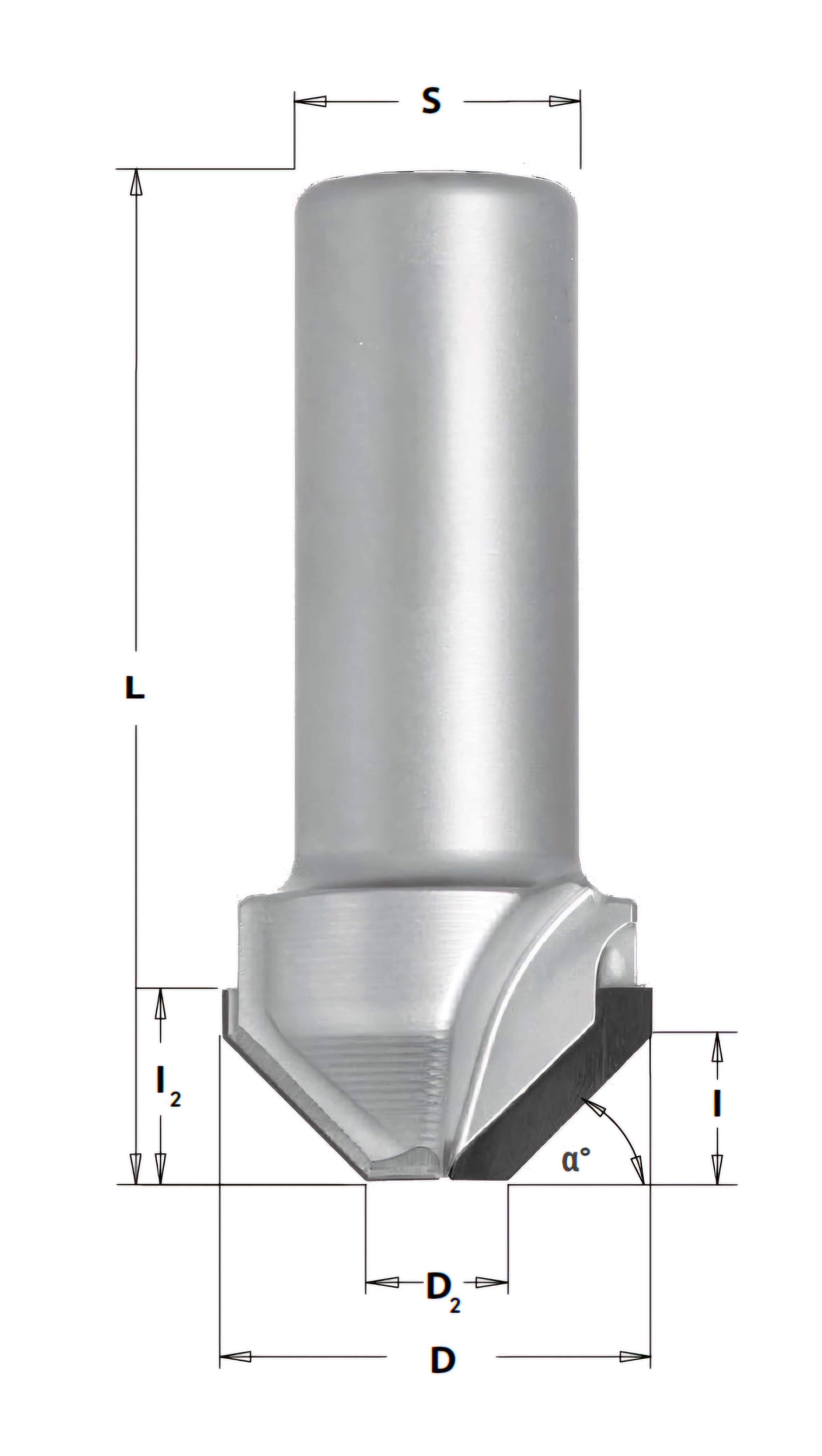

Diamond Profile Cutters for Chamfering
Showing 8 of 8 sizes
Diameter | Tertiary diameter | Head diameter | Cutting length | Secondary length | Overall length | Shank diameter | Number of flutes | Unit | Stock | Delivery | Order | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 0 | 4 | 11 | 0 | 75 | RH | 16 | 1 | 45° | FDH.22.011.16.0SR | £130.78 | Each | UK 0EU 7 | 4–7 working days | |
| 30 | 10 | 4 | 10 | 13.7 | 70 | RH | 20 | 2 | 45° | FDH.30.010.20.1SR | £213.98 | Each | UK 0EU 2 | 4–7 working days | |
| 30 | 0 | 4 | 15 | 0 | 95 | RH | 20 | 2 | 45° | FDH.30.015.20.4SR | £231.82 | Each | UK 0EU 10+ | 4–7 working days | |
| 33 | 3 | 4 | 15 | 17.5 | 71 | RH | 20 | 2 | 45° | FDH.33.015.20.0SR | £208.04 | Each | UK 0EU soon | Up to 2 weeks | |
| 35 | 0 | 4 | 10 | 0 | 75 | RH | 16 | 2 | 30° | FDH.35.010.16.0SR | £255.59 | Each | UK 0EU 5 | 4–7 working days | |
| 38 | 0 | 4 | 9 | 0 | 75 | RH | 20 | 2 | 25° | FDH.38.009.20.0SR | £208.04 | Each | UK 0EU 2 | 4–7 working days | |
| 50 | 0 | 4 | 8 | 0 | 75 | RH | 20 | 2 | 18° | FDH.50.008.20.0SR | £249.65 | Each | UK 0EU 3 | 4–7 working days | |
| 50 | 0 | 4 | 25 | 0 | 90 | RH | 20 | 2+2+1 | 45° | FDH.50.025.20.0SR | £273.43 | Each | UK 0EU 3 | 4–7 working days |
