DWA series

12 products in this series

DWA series

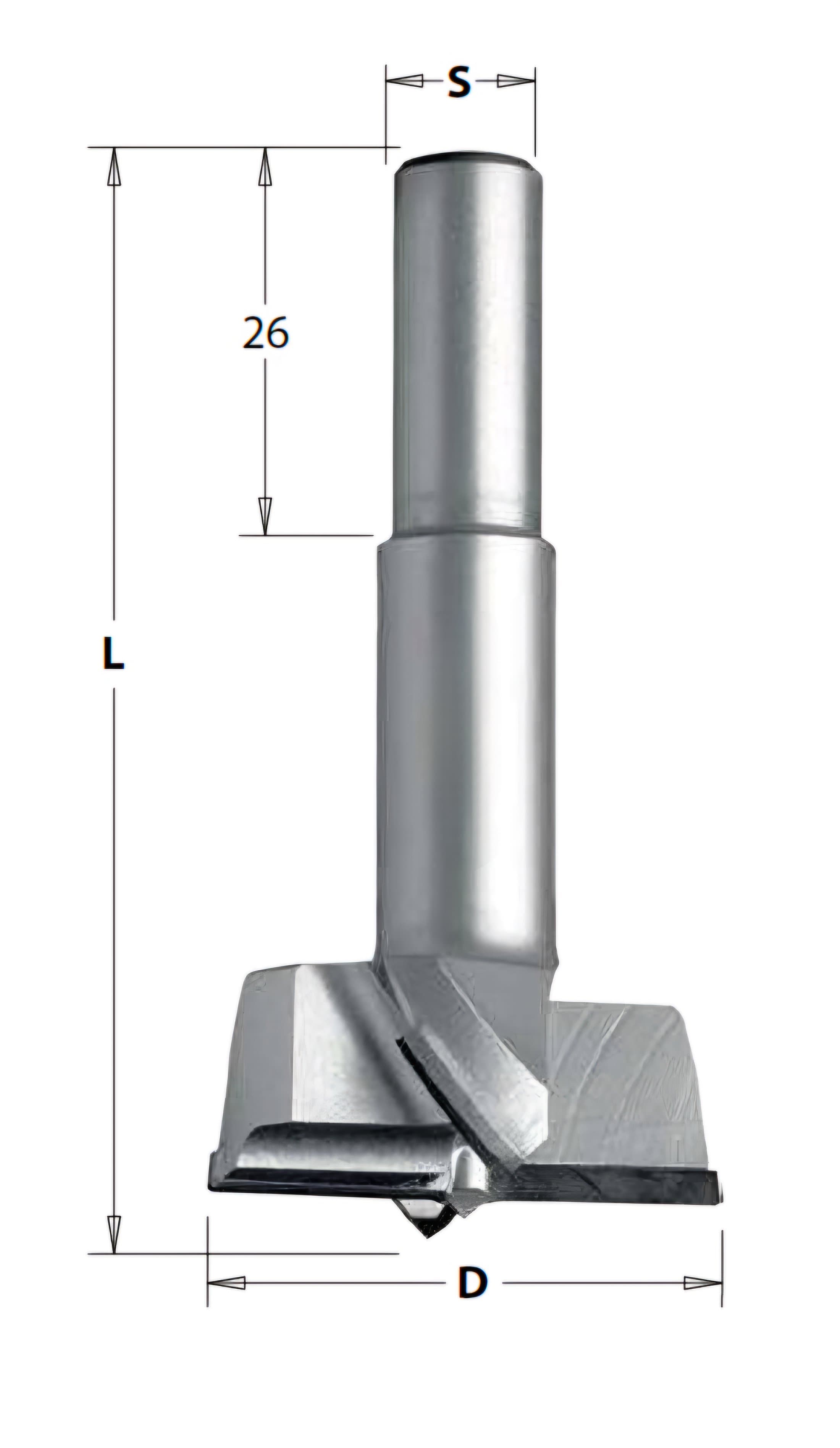

DIA Hinge Boring Bits short

Description

️ Body made of durable steel
️ Diamond blades with a precisely centered central point
️ 2 PCD cutting edges (Z2)
️ 2 PCD scoring blades (V2)
️ Cylindrical shank with milling for easier assembly in the holder

Technical details

Perfect for drilling hinge holes on multi-spindles drilling machines with suitable quick couplings. For making sockets in hardwood, wood-based materials, plastic and laminated materials. Thanks to the use of PCD blades, the service life of these drill bits is several dozen times greater than conventional drill bits with HM blades.

Diameter	Overall length		Shank diameter			Unit	Stock
15	57.5	LH	10	DWA.015LH	£117.68	Each	4 pcs
15	57.5	RH	10	DWA.015RH	£117.68	Each	5 pcs
20	57.5	LH	10	DWA.020LH	£122.97	Each	2 pcs
20	57.5	RH	10	DWA.020RH	£122.97	Each	-
25	57.5	LH	10	DWA.025LH	£136.19	Each	2 pcs
25	57.5	RH	10	DWA.025RH	£136.19	Each	1 pc
26	57.5	LH	10	DWA.026LH	£137.51	Each	9 pcs
26	57.5	RH	10	DWA.026RH	£137.51	Each	10+ pcs
30	57.5	LH	10	DWA.030LH	£141.48	Each	2 pcs
30	57.5	RH	10	DWA.030RH	£141.48	Each	1 pc
35	57.5	LH	10	DWA.035LH	£174.54	Each	10+ pcs
35	57.5	RH	10	DWA.035RH	£174.54	Each	3 pcs

12 products

Spare parts

Height		Overall length				Unit	Stock
6	3.5	18	HC20	18635	Inquire	Set of 10	-
5.7	3.5	18		KPR.18.06.03	£19.11	Each	-
14	2	14	HC20	114204	£154.20	Set of 10	4,3 sets
14	2.5	14	HC20	114254	£160.39	Set of 10	2 sets
18	2.95	18	HC20	182954	Inquire	Set of 10	-
18	3.7	18	HC20	18374	£137.89	Set of 10	0,5 sets
20	4	20		202564	Inquire	Each	-
20	2.5	20		2035625	£32.37	Each	2 pcs
13	4	24.5	MG18	245134	£21.83	Each	10+ pcs
13	5	24.5	MG18	245135	Inquire	Each	-
16	3.2	34	HC35	163432	Inquire	Each	-
16	4	34	HC35	16344	Inquire	Each	-
16	5	34	HC35	16345	Inquire	Each	-
16	6	34	HC35	16346	Inquire	Each	-
16	7	34	HC35	16347	Inquire	Each	-
16	3	34		341603	£26.79	Each	1 pc
8	4	19	HC20	11884	Inquire	Set of 10	-
40	4		SP	690.000	£14.08	Each	10+ pcs
40	4		SP	690.001	£14.08	Each	8 pcs
40	4		SP	690.002	£14.08	Each	1 pc
40	4		SP	690.003	£14.08	Each	-
40	4		SP	690.004	£14.08	Each	4 pcs
40	4		SP	690.005	£14.08	Set of 2	10+ sets
40	4		SP	690.006	£14.08	Each	-
40	4		SP	690.007	£14.08	Each	2 pcs
40	4		SP	690.008	£14.08	Each	Soon
40	4		SP	690.009	£14.08	Set of 2	Soon
40	4		SP	690.010	£14.08	Each	-
40	4		SP	690.011	£14.08	Each	1 pc
40	4		SP	690.012	£14.08	Each	-
40	4		SP	690.013	£14.08	Set of 2	-
40	4		SP	690.014	£14.08	Each	-
40	4		SP	690.015	£14.08	Each	Soon
40	4		SP	690.016	£14.08	Each	3 pcs
40	4		SP	690.017	£14.08	Each	10+ pcs
40	4		SP	690.018	£14.08	Each	-
40	4		SP	690.019	£14.08	Each	-
40	4		SP	690.020	£14.08	Each	-
40	4		SP	690.021	£14.08	Set of 2	1 set
40	4		SP	690.022	£14.08	Set of 2	-
40	4		SP	690.023	£14.08	Set of 2	-
40	4		SP	690.024	£14.08	Each	-
40	4		SP	690.025	£14.08	Each	2 pcs
40	4		SP	690.026	£14.08	Set of 2	-
40	4		SP	690.027	£14.08	Each	-
40	4		SP	690.028	£14.08	Each	-
40	4		SP	690.029	£14.08	Each	1 pc
40	4		SP	690.030	£14.08	Set of 2	1 set
40	4		SP	690.031	£14.08	Each	1 pc
40	4		SP	690.032	£14.08	Set of 2	-
