DTS series

15 products in this series

Diamond Router Bit D8.3mm Z2+1 Shank 8mm L70mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.08.015.08.1MR
Diamond Router Bit D8mm Z2+1 Shank 12mm L60mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.08.015.12.0DR
Diamond Router Bit D8mm Z2+1 Shank 12mm L75mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.08.020.12.0DR
Diamond Router Bit D10mm Z2+1 Shank 10mm L70mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.10.015.10.0MR
Diamond Router Bit D10mm Z2+1 Shank 12mm L60mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.10.015.12.0DR
Diamond Router Bit D10mm Z2+1 Shank 12mm L65mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.10.020.12.0DR
Diamond Router Bit D12mm Z2+1 Shank 12mm L66mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.12.015.12.0DR
Diamond Router Bit D12mm Z2+1 Shank 12mm L70mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.12.015.12.0MR
Diamond Router Bit D12mm Z2+1 Shank 12mm L66mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.12.020.12.0DR
Diamond Router Bit D12mm Z2+1 Shank 12mm L70mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.12.020.12.0MR
Diamond Router Bit D12mm Z2+1 Shank 12mm L70mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.12.025.12.0DR
Diamond Router Bit D12.7mm Z2+1 Shank 13mm L76mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.12.025.12.5MR
Diamond Router Bit PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.16.033.16.0MR
Diamond Router Bit PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.16.035.16.0DR
Diamond Router Bit D20mm Z2+1 Shank 20mm L85mm PCD Positive/Negative for Nesting, MDF, HPL & Plywood — ITA Tools DTS.20.025.20.0SR

DTS series

Diamond Router Bits Z2+1

Description

️ Two full positive and negative PCD blades
️ Body made from tungsten carbide hardness of 93,8 HRA,
DENSIMET® or stainless steel
️ Can be resharpened:
H3,5 - (3-5 sharpening operations)
️ PCD plunge tip at the bottom to drill
️ HPL – 4-6 m/min
️ MDF – 8-12 m/min
️ PLYWOOD – 8-12 m/min
️ RPM 18000-24000

Application

Materials

Advantages

️ The DTS cutter has two full inserts arranged axially (positive/negative), which allows simultaneous cutting of the top and bottom of the material, ensuring perfect finishing on both sides.
️ It is a versatile tool that works well in both nesting and quick cutting. It is also excellent for removing material in MDF.
️ Due to its versatility, the DTS cutter can be used for processing solid wood, wood-based boards (MDF, particleboard), HPL, Corian, as well as glass and cement fibers.

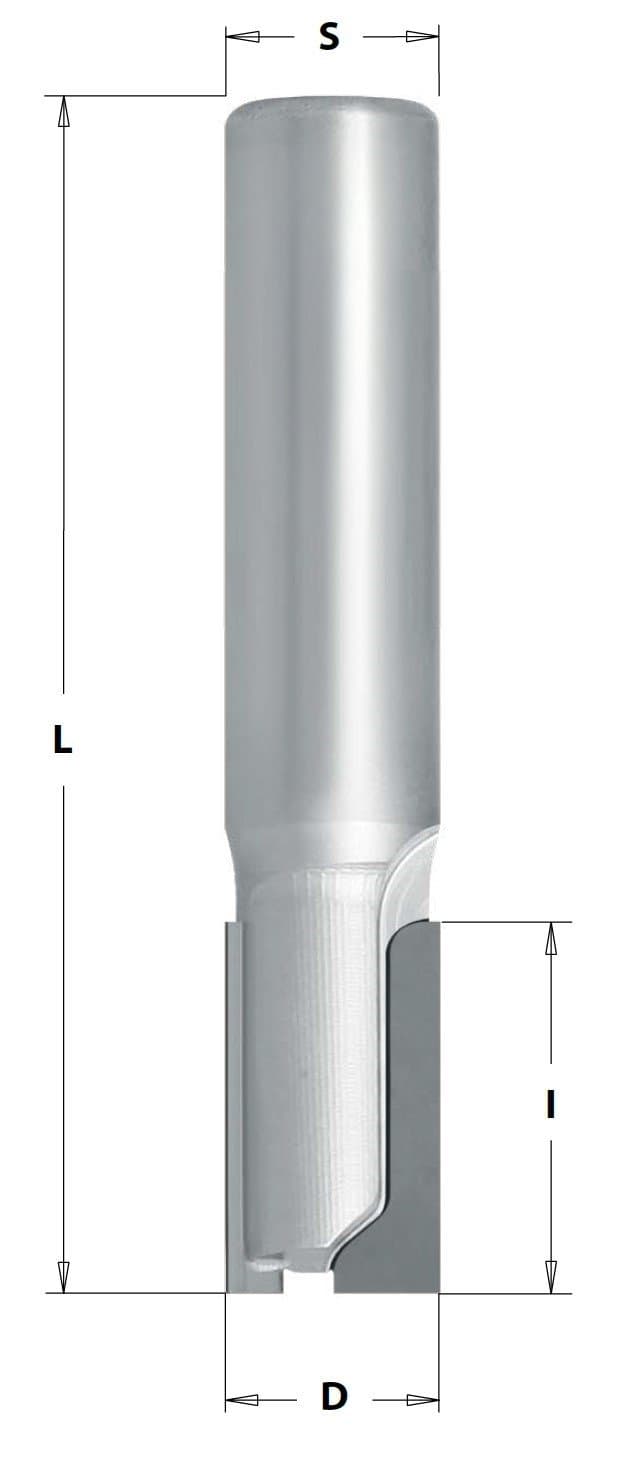

Diameter	Head diameter	Cutting length		Overall length		Shank diameter	Number of flutes				Unit	Stock
8	3.5	15	HM	70	RH	8	2+1	Pos./Neg.	DTS.08.015.08.1MR	£109.21	Each	10+ pcs
8	3.5	15	DENSIMET®	70	RH	12	2+1	Pos./Neg.	DTS.08.015.12.0DR	£169.89	Each	6 pcs
8	3.5	20	DENSIMET®	70	RH	12	2+1	Pos./Neg.	DTS.08.020.12.0DR	£200.22	Each	4 pcs
10	3.5	15	HM	70	RH	10	2+1	Pos./Neg.	DTS.10.015.10.0MR	£109.21	Each	10+ pcs
10	3.5	15	DENSIMET®	70	RH	12	2+1	Pos./Neg.	DTS.10.015.12.0DR	£169.89	Each	9 pcs
10	3.5	20	DENSIMET®	70	RH	12	2+1	Pos./Neg.	DTS.10.020.12.0DR	£200.22	Each	10+ pcs
12	3.5	15	DENSIMET®	70	RH	12	2+1	Pos./Neg.	DTS.12.015.12.0DR	£169.89	Each	10+ pcs
12	3.5	15	HM	70	RH	12	2+1	Pos./Neg.	DTS.12.015.12.0MR	£109.21	Each	7 pcs
12	3.5	20	DENSIMET®	70	RH	12	2+1	Pos./Neg.	DTS.12.020.12.0DR	£200.22	Each	Soon
12	3.5	20	HM	70	RH	12	2+1	Pos./Neg.	DTS.12.020.12.0MR	£169.89	Each	9 pcs
12	3.5	25	DENSIMET®	70	RH	12	2+1	Pos./Neg.	DTS.12.025.12.0DR	£224.49	Each	7 pcs
16	3.5	33	Stal nierdzewna	75	RH	16	2+1	Pos./Neg.	DTS.16.033.16.0MR	£285.16	Each	1 pc
16	3.5	35	DENSIMET®	75	RH	16	2+1	Pos./Neg.	DTS.16.035.16.0DR	£394.38	Each	5 pcs
20	3.5	25	Stal nierdzewna	70	RH	20	2+1	Pos./Neg.	DTS.20.025.20.0SR	£204.97	Each	10+ pcs

14 products

Sizes in inches

				Head diameter			Number of flutes				Unit	Stock	Order
1/2	1	3	1/2	3.5	HM	RH	2+1	Pos./Neg.	DTS.12.025.12.5MR	£175.95	Each	6 pcs

1 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
