Diamond PCD Router Bit D12mm Z4+1 Shank 12mm L70mm Serrated Roughing-Finishing for HPL, MDF & Plywood — ITA Tools DTR.12.019.12.1DR

DTR series

Diamond Router Bits Z4+1 with Chipbreaker for HPL and Composites

Description

️ Four-edge diamond router bit with an additional edge (Z4+1)
️ Positive-negative construction
️ Blades with chipbreaker
️ Polycrystalline diamond (PCD) tips, insert height H3.0, laser ablation
️ Body made from DENSIMET®, right-hand rotation (RH)
️ Shank accuracy class H6, surface roughness Ra ≤0.3 μm
️ Can be resharpened up to 3–4 times
️ Feed: HPL 8–12 m/min, MDF 10–16 m/min, plywood 12–18 m/min
️ RPM 18,000–24,000

Technical details

For cutting and grooving in HPL and Corian®, glass and carbon fibre, fibre cement board and aluminium, as well as MDF and plywood. Intended for use on CNC machines.

Application

Materials

Advantages

️ The positive-negative construction cuts the top and bottom faces of the material at the same time.
️ Unlike DT1, DT3 and DT5, DTR has blades with a chipbreaker (Z4+1, positive-negative). The other series: DT1 – Z1 downcut, 6 mm, DT3 – Z3, 12–16 mm, DT5 – Z5+1 with 0° axial angle, 20 mm.
️ Working parameters are given separately for HPL, MDF and plywood, which makes it easier to set the feed for a specific material.
️ The scope of machining covers cutting and grooving on CNC machines.

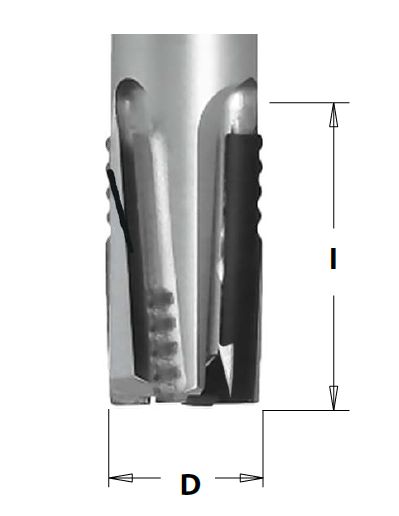

Tap to enlarge

Dcutting Ø

Icutting length

Loverall length

HPCD tip height

Sshank Ø

Zcutting edges

Showing 1 of 1 sizes

Ø 12 × 19mm

£278.43per pc

Dcutting Ø×Icutting length

DTR.12.019.12.1DR

Loverall

70mm

HPCD tip

3mm

Sshank

12mm

Zedges

Body DENSIMET®Rotation RH

FREE delivery within 2 weeksEU soon

Diameter	Head diameter	Cutting length		Overall length		Shank diameter	Number of flutes			Unit	Stock	Delivery	Order
12	3	19	DENSIMET®	70	RH	12	4	DTR.12.019.12.1DR	£278.43	Each	UK 0EU soon	Up to 2 weeks

1 products

UKLondon stock — order by 11:00, next working dayEUITA warehouse — usually 4–7 working daysEU sooncoming soon — delivery up to 2 weeksSpecial order14–21 working daysFree UK delivery over £50
