Diamond Router Bits Z2+2 PRO

️ DTL is a Pro series of cutters, being an improved version of DTN cutters. It is the same tool but in a better, modified version.
️ DTL is characterized by a diamond drilling insert at the bottom of the cutter.
️ The DTL cutter has more aggressive axial angles, which affects its performance.
️ The design of the DTL cutter ensures better chip evacuation, which is important for faster work and processing of various materials.
️ The situation with DTN and DTL is analogous to DTA and DTB. DTL is an improved, modified version of DTN, just as DTB is an improvement of DTA.
️ DTL is not a new tool, but an improved version of DTN with additional features that increase its efficiency and versatility. Similar to DTB, DTL offers better performance parameters compared to its base model.

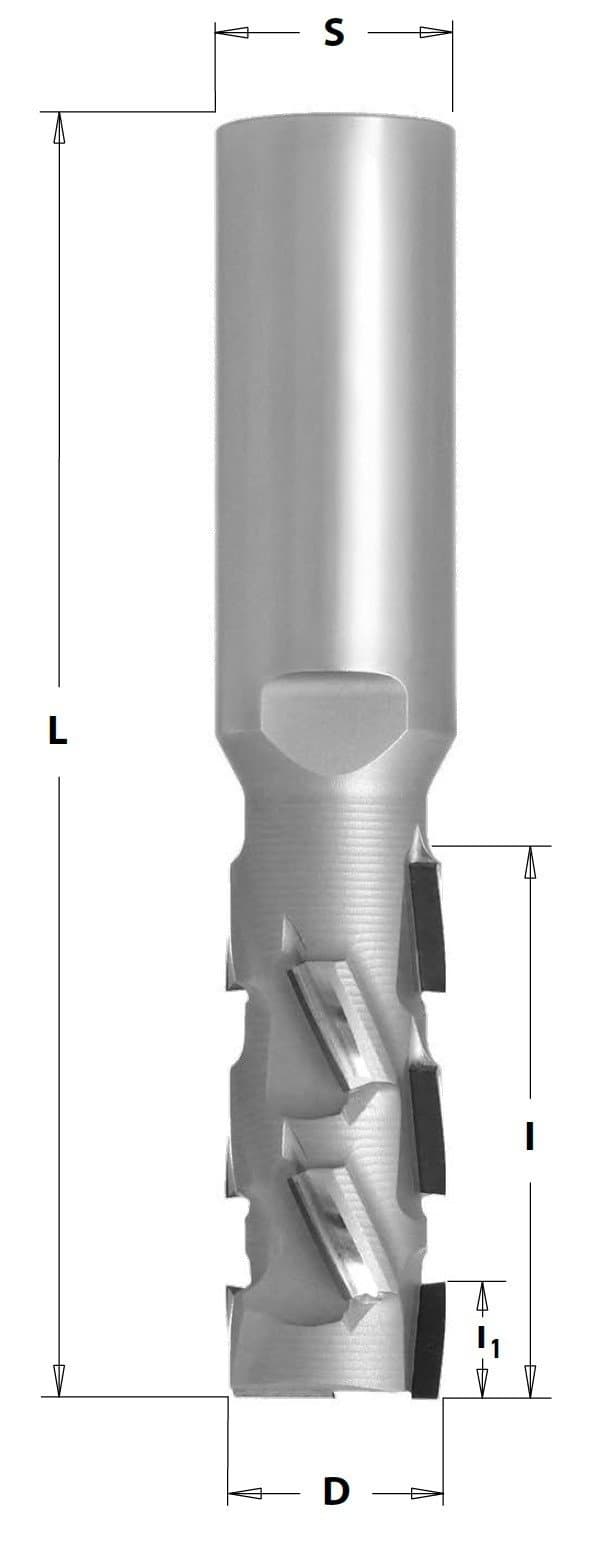

Diameter	Head diameter	Cutting length	Useful length	Overall length			Shank diameter			Unit	Stock
12	2.5	25	10.5	70	RH	6	12	DTL.12.025.12.0SR	£88.23	pcs	10+
12	2.5	28	10.5	80	RH	6	12	DTL.12.028.12.0SR	£90.90	pcs	7
12	2.5	35	10.5	90	RH	8	12	DTL.12.035.12.0SR	£115.49	pcs	10+
12	2.5	43	10.5	105	RH	10	12	DTL.12.043.12.0SR	£144.36	pcs	10+
16	2.5	25	10	70	RH	6	16	DTL.16.025.16.0SR	£88.23	pcs	10+
16	2.5	28	10	80	RH	6	16	DTL.16.028.16.0SR	£90.90	pcs	10+
16	2.5	35	10	90	RH	8	16	DTL.16.035.16.0SR	£115.49	pcs	10+
16	2.5	43	10	105	RH	10	16	DTL.16.043.16.0SR	£144.36	pcs	10+
18	2.5	25	10	85	RH	6	20	DTL.18.025.20.0SR	£88.23	pcs	10+
18	2.5	35	10	90	RH	8	20	DTL.18.035.20.0SR	£115.49	pcs	10+
18	2.5	43	10	105	RH	10	20	DTL.18.043.20.0SR	£153.46	pcs	10+
18	2.5	52	10	115	RH	12	20	DTL.18.052.20.0SR	£181.79	pcs	10+
20	2.5	25	10	85	RH	6	20	DTL.20.025.20.0SR	£101.59	pcs	10+
20	2.5	28	10	80	RH	6	20	DTL.20.028.20.0SR	£90.90	pcs	10+
20	2.5	35	10	90	RH	8	20	DTL.20.035.20.0SR	£115.49	pcs	10+
20	2.5	43	10	105	RH	10	20	DTL.20.043.20.0SR	£144.36	pcs	10+
20	2.5	52	10	115	RH	12	20	DTL.20.052.20.0SR	£181.79	pcs	10+

17 products
