DTE series

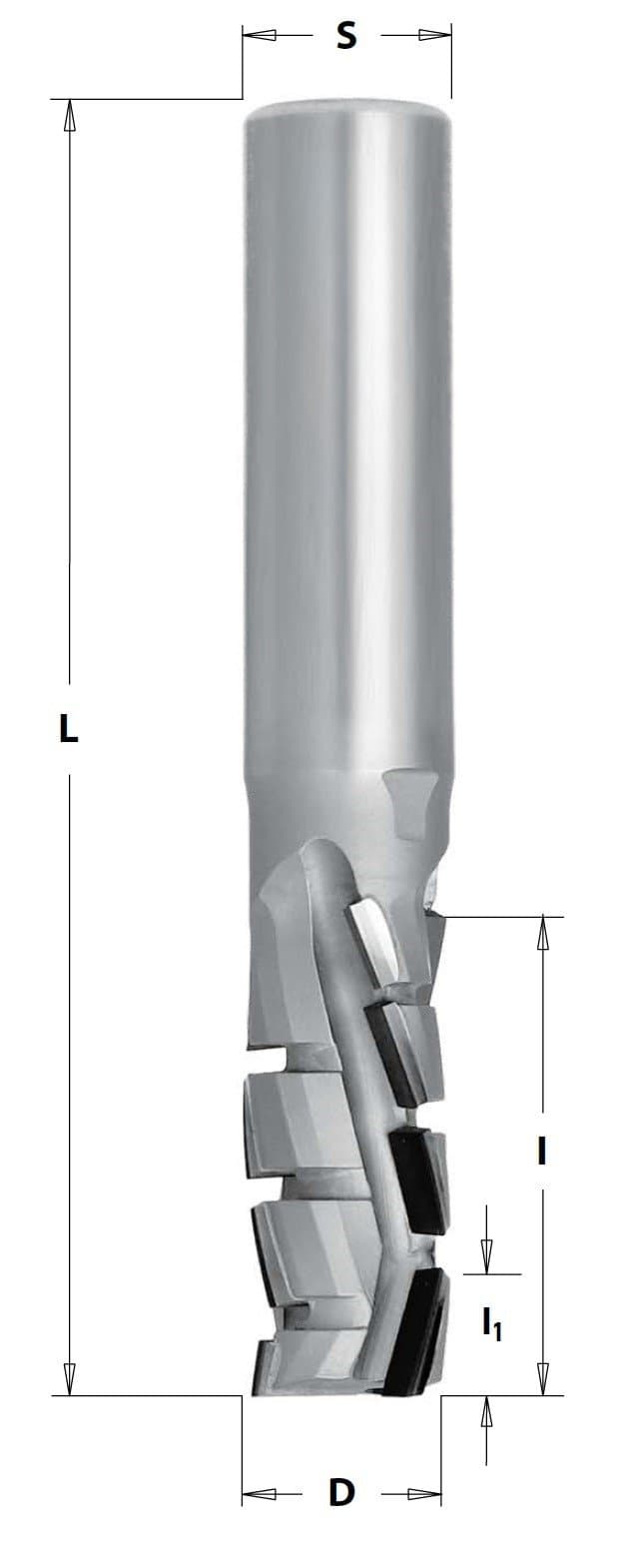

Technical drawing

Technical drawing

DTE series

Diamond Router Bits Z3+1 – TURBO for Nesting

Description

️ Three full PCD blades spread out on three helix wings
️ Body made from special stainless steel
️ Can be resharpened:
H3 - (3-4 sharpening operations),
H3,5 - (3-5 sharpening operations)
️ PCD plunge tip at the bottom to drill

Application

Materials

Advantages

️ This is a modification between standard DTE and DTE Turbo. It has three full inserts on three spirals. The inserts are not as large as in standard DTE for nesting, but they are not as small as in DTE Turbo.
️ This variant of the cutter is most often used for cutting plywood.
️ It is also suitable for cutting materials with a greater thickness, up to 35 mm.
️ This cutter was created in response to customers' needs for processing plywood.

Diameter	Head diameter	Cutting length	Useful length	Overall length			Shank diameter			Unit	Stock	Order
16	3.5	20	9,5	81	RH	7+1 PCD	20	DTE.16.020.20.NSR	£124.06	Each	Soon
16	3	25	9,5	85	RH	8+1 PCD	16	DTE.16.025.16.NSR	£145.64	Each	1 pc
16	3	35	9,5	96	RH	11+1 PCD	16	DTE.16.035.16.NSR	£215.76	Each	2 pcs

3 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
