Diamond Router Bit D20mm Z5+1 Shank 20mm PCD Steel Body for Composite Materials — ITA Tools DT5.20.022.20.0SR

DT5 series

Diamond Router Bits Z5+1 for Composites, Corian® and HPL

Description

️ Five-edge diamond router bit with an additional drilling edge (Z5+1)
️ 0° axial angle — straight version
️ Polycrystalline diamond (PCD) tips, insert height H3.0
️ Body made from steel
️ Shank accuracy class H6, surface roughness Ra ≤0.3 μm
️ Can be resharpened up to 3–4 times
️ Right-hand rotation (RH), laser ablation

Technical details

For cutting and grooving in glass and carbon fibre, fibre cement board, aluminium, Corian® and HPL. Intended for use on CNC machines.

Application

Materials

Advantages

️ DT5 has the most cutting edges in this family (Z5+1) and a 0° axial angle — chips are ejected to the side, without pressing down or lifting the material.
️ The drilling tip allows machining to start by plunging into the material, without leading in from the edge.
️ Other diamond bits for composites: DT1 – Z1 downcut, 6 mm, DT3 – Z3, 12–16 mm, DTR – Z4+1 positive-negative with chipbreaker, 12 mm.
️ Polycrystalline diamond tips are intended for highly abrasive materials, in which a carbide edge wears rapidly.

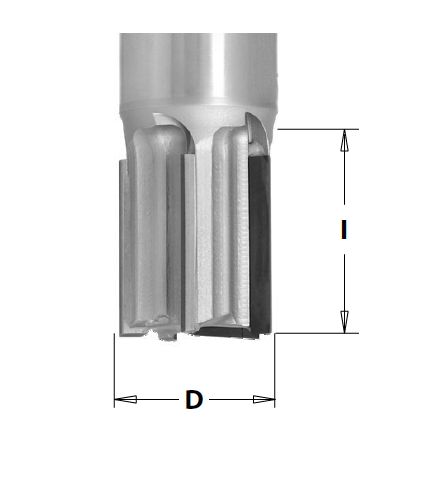

Tap to enlarge

Dcutting Ø

Icutting length

Loverall length

HPCD tip height

Sshank Ø

Zcutting edges

Showing 1 of 1 sizes

Ø 20 × 22mm

£493.35per pc

Dcutting Ø×Icutting length

DT5.20.022.20.0SR

Loverall

80mm

HPCD tip

3mm

Sshank

20mm

Zedges

Body STAINLESS STEELRotation RH

FREE delivery in 4–7 working daysEU 2

Diameter	Head diameter	Cutting length		Overall length		Shank diameter	Number of flutes			Unit	Stock	Delivery	Order
20	3	22	STAINLESS STEEL	80	RH	20	5	DT5.20.022.20.0SR	£493.35	Each	UK 0EU 2	4–7 working days
