DT3 series

3 products in this series

Diamond Router Bit D12mm Z3 Shank 12mm PCD DT3 for Composite Materials — ITA Tools DT3.12.015.12.0DR
Diamond Router Bit D12mm Z3 Shank 12mm PCD DT3 for Composite Materials — ITA Tools DT3.12.015.12.0SR
Diamond Router Bit D16mm Z3 Shank 16mm PCD DT3 for Composite Materials — ITA Tools DT3.16.025.16.0SR

DT3 series

Diamond Router Bits Z3 for Composites, Corian® and HPL

Description

️ Three-edge diamond router bit (Z3)
️ Versions: positive-negative-straight and a version with 0° axial angle
️ Polycrystalline diamond (PCD) tips, insert height H3.0–3.5
️ Body made from DENSIMET® or steel, depending on the version
️ Drilling version available in 16 mm diameter
️ Shank accuracy class H6, surface roughness Ra ≤0.3 μm
️ Can be resharpened up to 3–4 times
️ Feed 4–9 m/min
️ RPM 16,000–20,000

Technical details

For cutting and grooving in glass and carbon fibre, fibre cement board, aluminium, Corian® and HPL. Intended for use on CNC machines.

Application

Materials

Advantages

️ The series has two geometry types: positive-negative-straight with a DENSIMET® body (12 mm) and a 0° axial angle with a steel body (12 and 16 mm).
️ The 16 mm version has a drilling tip, allowing machining to start by plunging into the material, without leading in from the edge.
️ Other diamond bits for composites: DT1 – Z1 downcut, 6 mm, DT5 – Z5+1 with 0° axial angle, 20 mm, DTR – Z4+1 positive-negative with chipbreaker, 12 mm.
️ The scope of machining covers cutting and grooving.

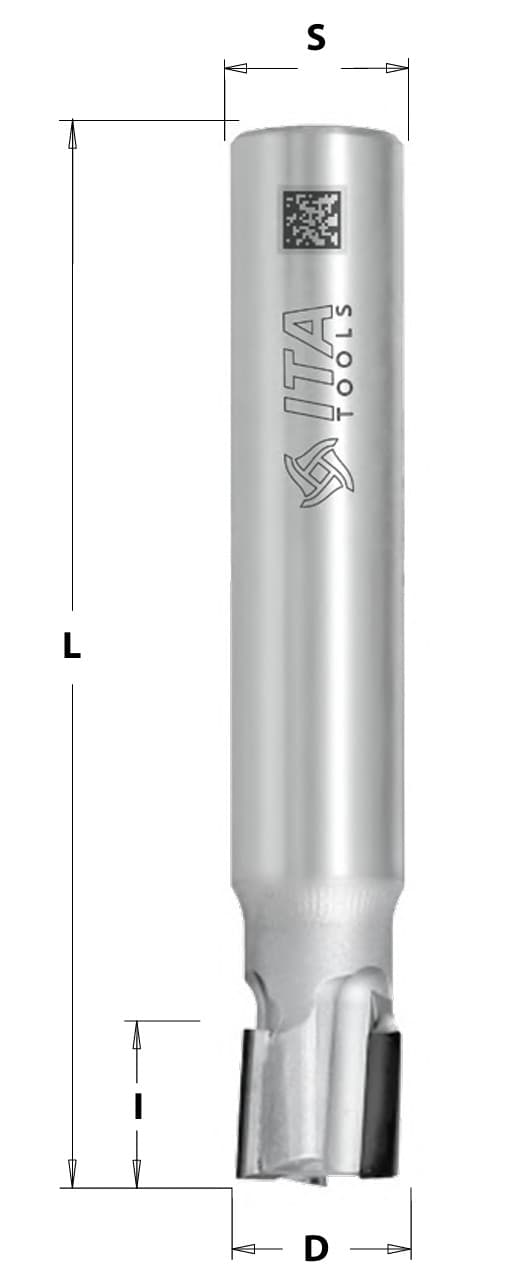

D 12 · PCD H 3.5 · I 15 · Body DENSIMET® · L 70 · Rotations RH · S 12 · Z 3

DT3.12.015.12.0DR

£354.28

Up to 2 weeks

UK 0EU soon

D 12 · PCD H 3 · I 15 · Body STAINLESS STEEL · L 85 · Rotations RH · S 12 · Z 3

DT3.12.015.12.0SR

£233.62

4–7 working days

UK 0EU 10+

D 16 · PCD H 3 · I 25 · Body STAINLESS STEEL · L 111 · Rotations RH · S 16 · Z 3

DT3.16.025.16.0SR

£221.63

14–21 working days

UK 0Special order

Diameter	Head diameter	Cutting length		Overall length		Shank diameter	Number of flutes			Unit	Stock	Delivery
12	3.5	15	DENSIMET®	70	RH	12	3	DT3.12.015.12.0DR	£354.28	Each	UK 0EU soon	Up to 2 weeks
12	3	15	STAINLESS STEEL	85	RH	12	3	DT3.12.015.12.0SR	£233.62	Each	UK 0EU 10+	4–7 working days
16	3	25	STAINLESS STEEL	111	RH	16	3	DT3.16.025.16.0SR	£221.63	Each	UK 0Special order	14–21 working days

3 products

UKLondon stock — order by 11:00, next working dayEUITA warehouse — usually 4–7 working daysEU sooncoming soon — delivery up to 2 weeksSpecial order14–21 working daysFree UK delivery over £50
