DT2 series

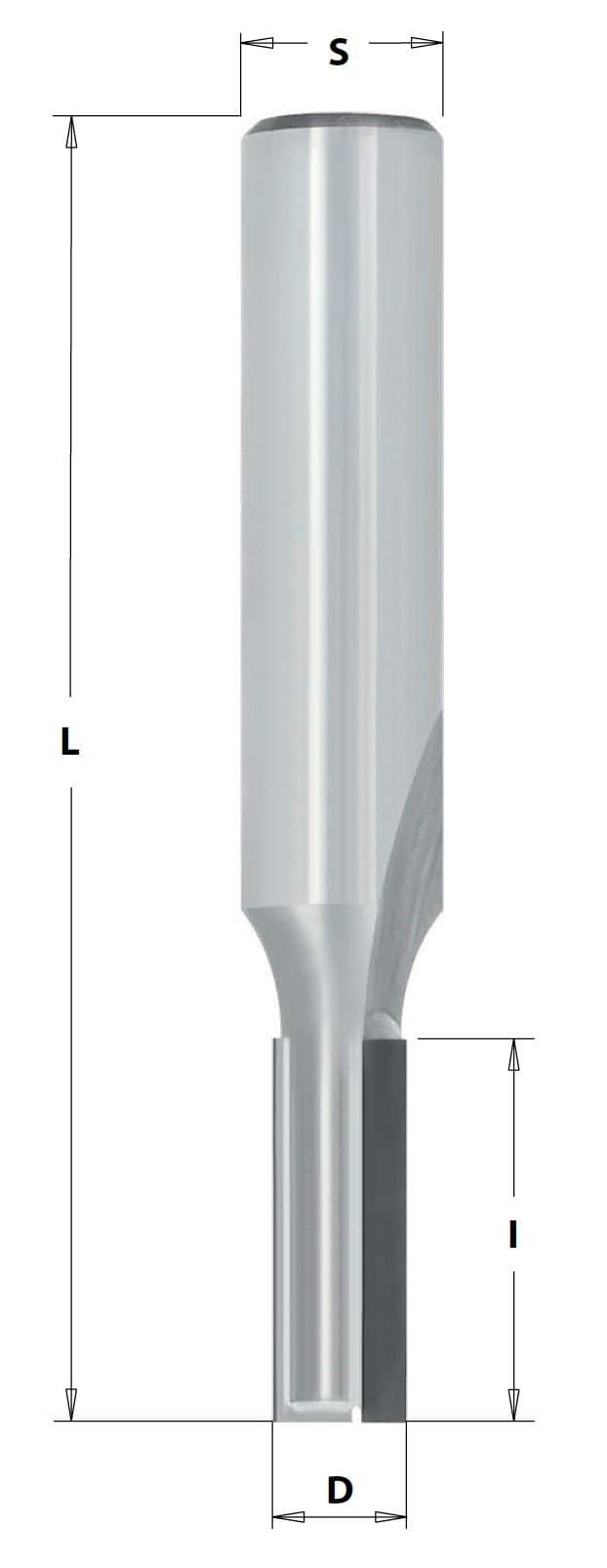

Technical drawing

DT2 series

Diamond Router Bits Z2

Description

️ Two full negative or straight PCD tips
️ Body made from tungsten carbide hardness of 93,8 HRA or stainless steel
️ Can be resharpened:
H2 - (2-3 sharpening operations),
H3 - (3-4 sharpening operations)

Application

Materials

Advantages

️ Faster and more efficient than DT1.
️ Two negative inserts for higher performance.
️ Excels in fiber cement, fiberglass, Corian, and HPL.
️ Ideal for grooving
can be used for other operations as well.
️ An investment in speed and precision for demanding materials.

Diameter	Head diameter	Cutting length		Overall length		Shank diameter	Number of flutes				Unit	Stock	Order
6	2.5	10	HM	75	RH	12	2	Neg.	DT2.06.010.12.0MR	£134.69	pcs	10+
8	2.5	15	HM	70	RH	8	2	Neg.	DT2.08.015.08.0MR	£113.03	pcs	7
8	3	15	HM	70	RH	10	2	Neg.	DT2.08.015.10.0MR	£122.98	pcs	10+
8	3	20	HM	70	RH	8	2	Neg.	DT2.08.020.08.0MR	£140.54	pcs	10+
8	3	22	HM	76	RH	12	2	Neg.	DT2.08.022.12.0MR	£169.82	pcs	5
10	2.5	10	HM	76	RH	12	2	Neg.	DT2.10.010.12.0MR	£122.98	pcs	10+
10	3	15	HM	70	RH	8	2	Neg.	DT2.10.015.08.0MR	£138.20	pcs	4
10	2.5	15	HM	70	RH	10	2	Neg.	DT2.10.015.10.0MR	£122.98	pcs	10+
10	3	22	HM	70	RH	12	2	Neg.	DT2.10.022.12.0MR	£169.82	pcs	10+
12	3	15	HM	73	RH	12	2	Neg.	DT2.12.015.12.0MR	£140.54	pcs	6
12	3	20	HM	76	RH	12	2	Neg.	DT2.12.020.12.0MR	£165.73	pcs	10+

11 products

Sizes in inches

				Head diameter			Number of flutes				Unit	Stock	Order
1/4	1/2	2 3/4	1/4	2.5	HM	RH	2	0°	DT2.06.012.12.5MR	£152.26	pcs	4
1/4	3/4	2 3/4	1/4	2	HM	RH	2	0°	DT2.06.019.06.5MR	£134.69	pcs	10+
3/8	1/2	2 3/4	1/2	2.5	HM	RH	2	0°	DT2.09.012.12.5MR	£134.69	pcs	10+
3/8	7/8	3	3/8	3.5	HM	RH	2	0°	DT2.09.022.09.5MR	£165.92	pcs	5
1/2	1	3	1/2	3	HM	RH	2	Neg.	DT2.12.025.12.5MR	£163.97	pcs	10+

5 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
