DT2 LED series | Smarter Production

DT2 LED series

5 products in this series

Diamond Router Bit for LED Strip Grooving D14mm Z2+1 Shank 8mm L60mm PCD, Handheld Router & CNC — ITA Tools DT2.14.012.08.0SR
Diamond Router Bit for LED Strip Grooving D15mm Z2+1 Shank 8mm L60mm PCD, Handheld Router & CNC — ITA Tools DT2.15.012.08.0SR
Diamond Router Bit for LED Strip Grooving D16mm Z2+1 Shank 8mm L63mm PCD, Handheld Router & CNC — ITA Tools DT2.16.012.08.0SR
Diamond Router Bit for LED Strip Grooving D17mm Z2+1 Shank 8mm L63mm PCD, Handheld Router & CNC — ITA Tools DT2.17.012.08.0SR
Diamond Router Bit for LED Strip Grooving D18mm Z2+1 Shank 8mm L63mm PCD, Handheld Router & CNC — ITA Tools DT2.18.012.08.0SR

DT2 LED series

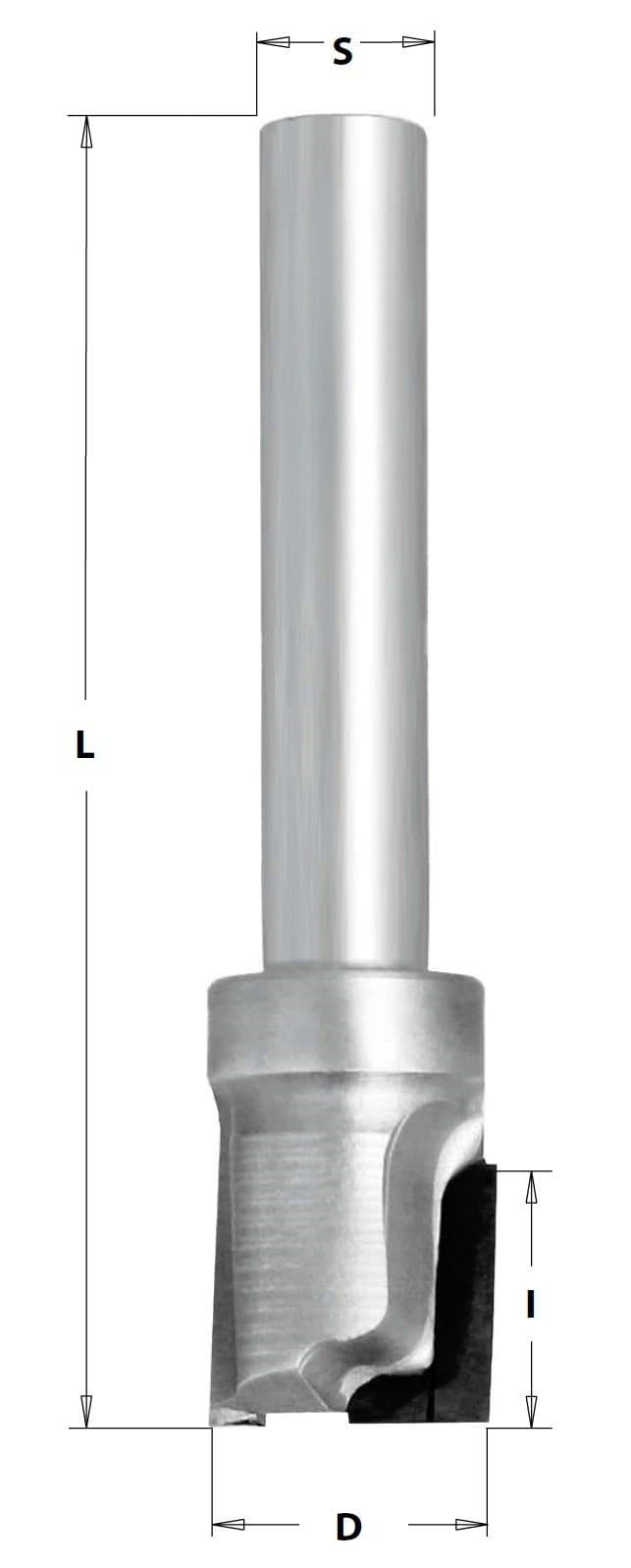

Technical drawing

DT2 LED series

Diamond Router Bits Z2 for Grooving LED strip lights for Power Tools

Description

️ Two full positive and negative PCD tips
️ Body made from stainless steel
️ Can be resharpened:
H2 - (2-3 sharpening operations)

Application

Materials

Advantages

️ Designed for precise LED recesses.
️ Perfect for handheld routers
also compatible with CNC for higher accuracy (mechanical feed).
️ Dedicated exclusively to LED recesses.

Diameter	Head diameter	Cutting length		Overall length		Shank diameter	Number of flutes				Unit	Stock	Order
14	2.5	12	Stainless steel	60	RH	8	2	Pos./Neg.	DT2.14.012.08.0SR	£75.73	Each	10+ pcs
15	2.5	12	Stainless steel	60	RH	8	2	Pos./Neg.	DT2.15.012.08.0SR	£75.73	Each	7 pcs
16	2.5	12	Stainless steel	63	RH	8	2	Pos./Neg.	DT2.16.012.08.0SR	£75.73	Each	10+ pcs
17	2.5	12	Stainless steel	63	RH	8	2	Pos./Neg.	DT2.17.012.08.0SR	£75.73	Each	8 pcs
18	2.5	12	Stainless steel	63	RH	8	2	Pos./Neg.	DT2.18.012.08.0SR	£75.73	Each	5 pcs

5 products
