DT1 series

Diamond Router Bits Z1, Downcut, for Composite Materials

Description

️ Single-edge diamond router bit (Z1)
️ Negative construction — downward chip ejection
️ Polycrystalline diamond (PCD) tips, insert height H3.0
️ Body made from tungsten carbide (HM)
️ Shank accuracy class H6, surface roughness Ra ≤0.3 μm
️ Can be resharpened up to 3–4 times
️ Right-hand rotation (RH), laser ablation

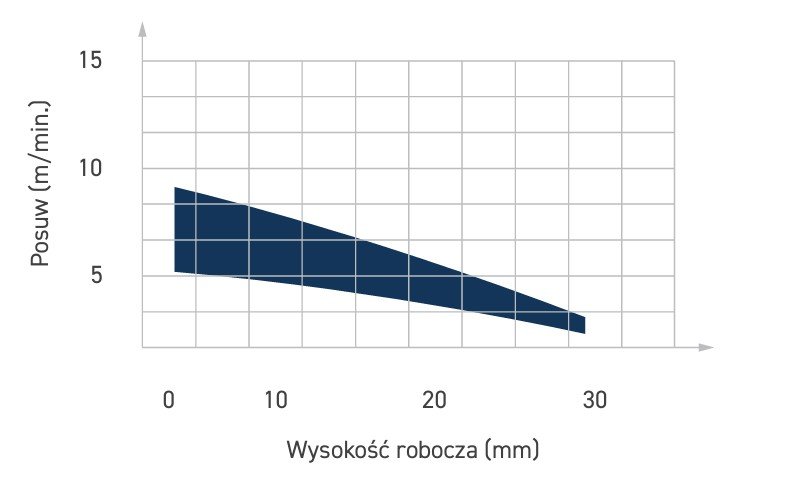

Technical details

For cutting and grooving in glass and carbon fibre, fibre cement board, aluminium, Corian® and HPL. Intended for use on CNC machines.

Application

Materials

Advantages

️ Choose DT1 where a small-diameter diamond tool in the downcut version is required — downward chip ejection holds the material against the table.
️ The series covers two cutting lengths at 6 mm diameter, allowing the tool to be matched to the thickness of the workpiece.
️ The other diamond bits for composites have larger diameters and more cutting edges: DT3 – Z3, 12–16 mm, DT5 – Z5+1, 20 mm, DTR – Z4+1, 12 mm.
️ Polycrystalline diamond tips are intended for highly abrasive materials, in which a carbide edge wears rapidly.

Swipe · tap to enlarge

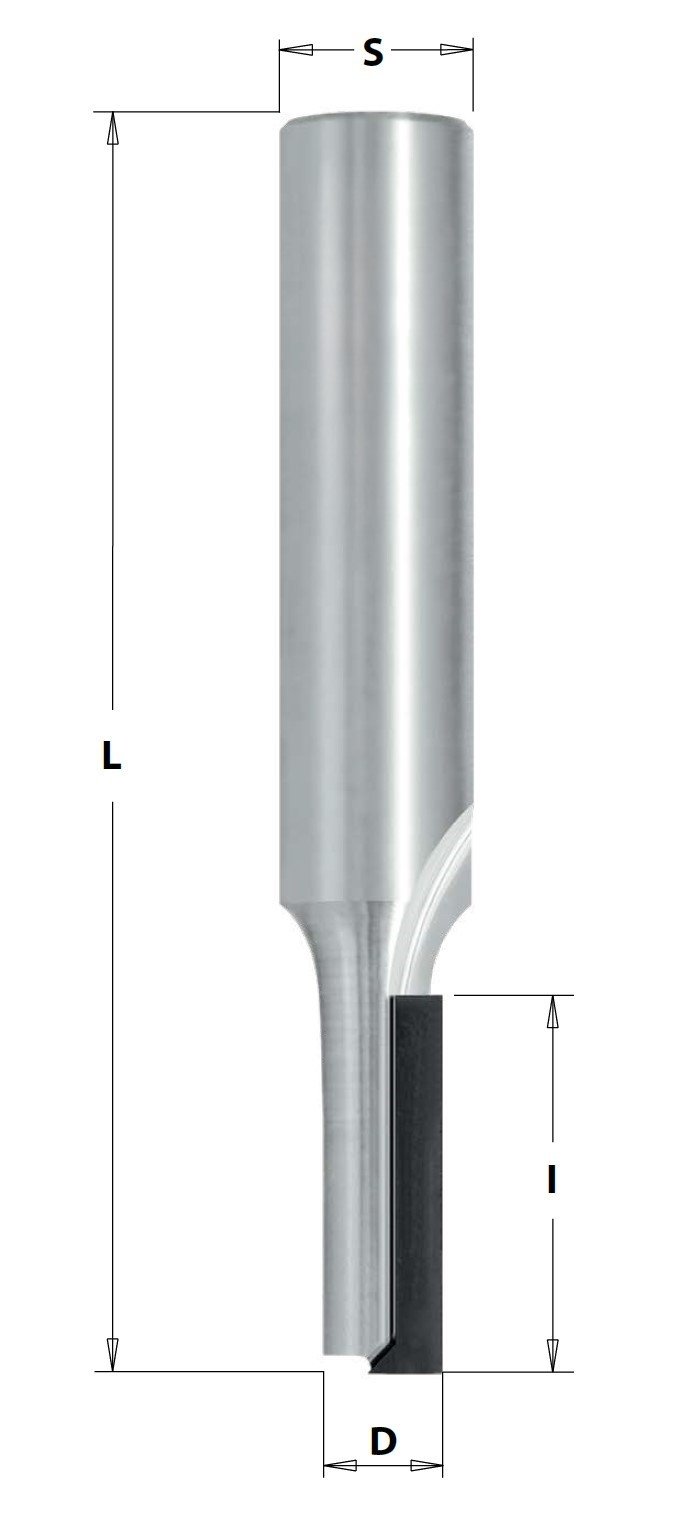

Dcutting Ø

Icutting length

Loverall length

HPCD tip height

Sshank Ø

Zcutting edges

Same on all 2 productsLOverall length 50 mmHPCD tip height 3 mmSShank Ø 6 mmZCutting edges 1Body HMRotation RH

Showing 2 of 2 sizes

Ø 6 × 5mm

£71.61per pc

Dcutting Ø×Icutting length

DT1.06.005.06.0MR

FREE delivery in 4–7 working daysEU 5

Ø 6 × 11mm

£149.73per pc

Dcutting Ø×Icutting length

DT1.06.011.06.0MR

FREE delivery in 4–7 working daysEU 10+

Diameter	Head diameter	Cutting length		Overall length		Shank diameter	Number of flutes			Unit	Stock	Delivery	Order
6	3	5	HM	50	RH	6	1	DT1.06.005.06.0MR	£71.61	Each	UK 0EU 5	4–7 working days
6	3	11	HM	50	RH	6	1	DT1.06.011.06.0MR	£149.73	Each	UK 0EU 10+	4–7 working days
