14 products in this series

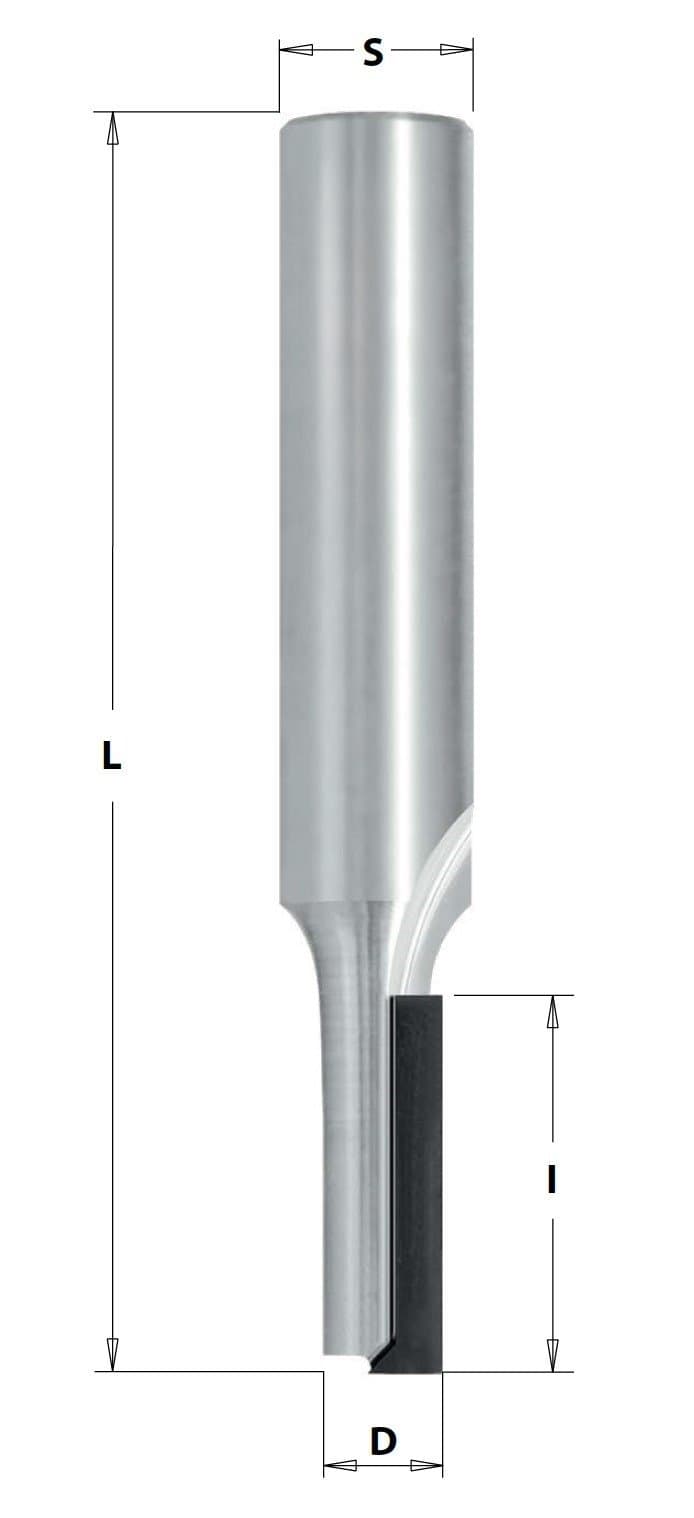

Diamond Router Bits Z1
Diameter | Cutting length | Overall length | Shank diameter | Number of flutes | Head diameter | Unit | Stock | Order | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 12 | 70 | 6 | 1 | 0° | 2.5 | HM | RH | DT1.04.012.06.0MR | £61.03 | Each | Soon | |
| 5 | 10 | 60 | 6 | 1 | Neg. | 3 | HM | RH | DT1.05.010.06.0MR | £59.24 | Each | 2 pcs | |
| 5 | 20 | 70 | 6 | 1 | Neg. | 3 | HM | RH | DT1.05.020.06.0MR | £81.76 | Each | 5 pcs | |
| 6 | 12 | 70 | 6 | 1 | Neg. | 3 | HM | RH | DT1.06.012.06.0MR | £58.06 | Each | Soon | |
| 6 | 12 | 71.5 | 8 | 1 | Neg. | 3 | HM | RH | DT1.06.012.08.0MR | £80.57 | Each | 6 pcs | |
| 6 | 12 | 71.5 | 10 | 1 | Neg. | 2.5 | HM | RH | DT1.06.012.10.0MR | £88.87 | Each | 2 pcs | |
| 6 | 20 | 60 | 6 | 1 | 0° | 3 | HM | RH | DT1.06.020.06.0MR | £94.79 | Each | 10+ pcs | |
| 6 | 22 | 75 | 12 | 1 | Neg. | 3 | HM | RH | DT1.06.022.12.0MR | £124.41 | Each | 10+ pcs | |
| 8 | 15 | 70 | 8 | 1 | Neg. | 3 | HM | RH | DT1.08.015.08.0MR | £77.02 | Each | 10+ pcs | |
| 8 | 20 | 70 | 8 | 1 | Neg. | 3 | HM | RH | DT1.08.020.08.0MR | £82.94 | Each | 2 pcs | |
| 8 | 23 | 75 | 12 | 1 | 0° | 3 | HM | RH | DT1.08.023.12.0MR | £118.49 | Each | 10+ pcs | |
| 10 | 15 | 70 | 10 | 1 | Neg. | 3 | HM | RH | DT1.10.015.10.0MR | £82.94 | Each | 10+ pcs | |
| 12 | 20 | 75 | 12 | 1 | Neg. | 3 | HM | RH | DT1.12.020.12.0MR | £106.64 | Each | 2 pcs |
Head diameter | Overall length | Number of flutes | Unit | Stock | Order | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 1/2 | 64.5 | 1/4 | 2.5 | HM | 64.5 | RH | 1 | Neg. | DT1.06.012.06.5MR2 | £77.02 | Each | 5 pcs |
