Ø 60 × 48mm
£329.20per pc
Ddiameter×Icutting height
DGM.060020048.0RB4
Ltotal
42mm
Fbore
20mm
Zknives
3+3
Fits JAROMA, STOMANAPCD tips 18
FREE delivery in 4–7 working daysEU 2
24 products in this series

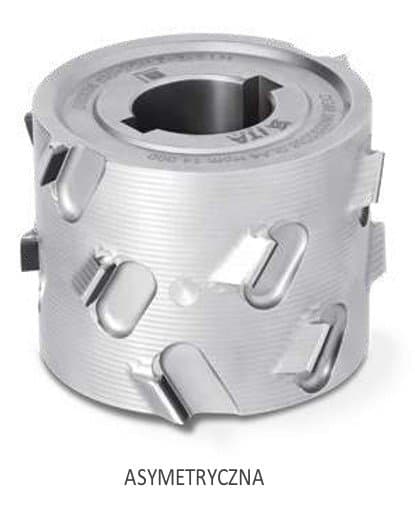

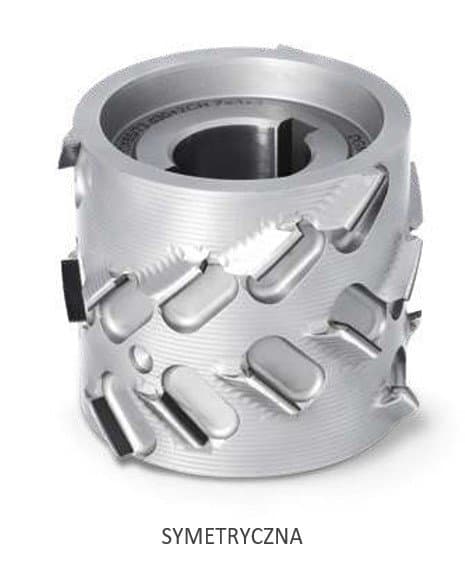

Premill PCD Cutter Heads with Brazed Knives for Edgebanding machines
Finishing Diamond cutter heads for edge banding machines with mechanical feed. Eliminatong the run-out effects favourable for the service life of the machine. Suitable for MDF and chipboard panels. Easy selection for a specific machine model with a database of dedicated tools.
Showing 12 of 12 sizes
Diameter | Head diameter | Cutting length | Overall length | Number of flutes | Unit | Stock | Delivery | Order | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 4.5 | 20 | 48 | 42 | JAROMA, STOMANA | LH | 18 | 3+3 | 30° | DGM.060020048.0LB4 | £329.20 | Each | UK 0EU 2 | 4–7 working days | |
| 60 | 4.5 | 20 | 48 | 42 | JAROMA, STOMANA | RH | 18 | 3+3 | 30° | DGM.060020048.0RB4 | £329.20 | Each | UK 0EU 2 | 4–7 working days | |
| 60 | 4.5 | 20 | 55 | 44 | CEHISA, LANGE | LH | 14 | 2+2 | 30° | DGM.060020055.0LB4 | £285.30 | Each | UK 0EU 5 | 4–7 working days | |
| 60 | 4.5 | 20 | 55 | 44 | CEHISA, LANGE | RH | 14 | 2+2 | 30° | DGM.060020055.0RB4 | £285.30 | Each | UK 0EU 3 | 4–7 working days | |
| 100 | 4.5 | 25 | 65 | 37 | CEHISA | LH | 16 | 2+2 | 30° | DGM.100020065.KLB4 | £268.85 | Each | UK 0EU 2 | 4–7 working days | |
| 100 | 4.5 | 25 | 65 | 37 | CEHISA | RH | 16 | 2+2 | 30° | DGM.100020065.KRB4 | £268.85 | Each | UK 0EU 3 | 4–7 working days | |
| 100 | 4.5 | 25 | 48 | 40.6 | BRANDT | LH | 12 | 2+2 | 30° | DGM.100025048.0LB4 | £274.33 | Each | UK 0EU 2 | 4–7 working days | |
| 100 | 4.5 | 25 | 48 | 40.6 | BRANDT | RH | 12 | 2+2 | 30° | DGM.100025048.0RB4 | £274.33 | Each | UK 0EU 2 | 4–7 working days | |
| 100 | 4.5 | 30 | 43 | 35.6 | BRANDT, HOMAG | LH | 15 | 3+3 | 30° | DGM.100030043.0LB4 | £274.33 | Each | UK 0EU 2 | 4–7 working days | |
| 100 | 4.5 | 30 | 43 | 35.6 | BRANDT, HOMAG | RH | 15 | 3+3 | 30° | DGM.100030043.0RB4 | £274.33 | Each | UK 0EU 2 | 4–7 working days | |
| 100 | 4.5 | 30 | 48 | 40.6 | BRANDT | LH | 18 | 3+3 | 30° | DGM.100030048.0LB4 | £329.20 | Each | UK 0EU 2 | 4–7 working days | |
| 100 | 4.5 | 30 | 48 | 40.6 | BRANDT | RH | 18 | 3+3 | 30° | DGM.100030048.0RB4 | £329.20 | Each | UK 0EU 2 | 4–7 working days | |
| 100 | 4.5 | 30 | 64 | 40.6 | BRANDT, HOMAG | LH | 24 | 3+3 | 30° | DGM.100030064.0LB4 | £433.45 | Each | UK 0EU 1 | 4–7 working days | |
| 100 | 4.5 | 30 | 64 | 40.6 | BRANDT, HOMAG | RH | 24 | 3+3 | 30° | DGM.100030064.0RB4 | £433.45 | Each | UK 0EU 1 | 4–7 working days | |
| 125 | 4.5 | 30 | 43 | 39 | IMA Advantage | LH | 15 | 3+3 | 30° | DGM.125030043.0LB4 | £318.23 | Each | UK 0EU 6 | 4–7 working days | |
| 125 | 4.5 | 30 | 43 | 39 | IMA Advantage | RH | 15 | 3+3 | 30° | DGM.125030043.0RB4 | £318.23 | Each | UK 0EU 3 | 4–7 working days | |
| 125 | 4.5 | 30 | 43 | 36 | HOMAG | LH | 18 | 3+3 | 30° | DGM.125030043.1LB4 | £362.12 | Each | UK 0EU 4 | 4–7 working days | |
| 125 | 4.5 | 30 | 43 | 36 | HOMAG | RH | 18 | 3+3 | 30° | DGM.125030043.1RB4 | £362.12 | Each | UK 0EU 5 | 4–7 working days | |
| 125 | 4.5 | 30 | 43 | 33.5 | HOMAG | LH | 18 | 3+3 | 30° | DGM.125030043.2LB4 | £543.18 | Each | UK 0EU 4 | 4–7 working days | |
| 125 | 4.5 | 30 | 43 | 33.5 | HOMAG | RH | 18 | 3+3 | 30° | DGM.125030043.2RB4 | £543.18 | Each | UK 0EU 4 | 4–7 working days | |
| 125 | 4.5 | 30 | 50 | 41 | EXITECH | LH | 21 | 3+3 | 30° | DGM.125030050.0LB4 | £329.20 | Each | UK 0Special order | 14–21 working days | |
| 125 | 4.5 | 30 | 50 | 41 | EXITECH | RH | 21 | 3+3 | 30° | DGM.125030050.0RB4 | £329.20 | Each | UK 0Special order | 14–21 working days | |
| 125 | 4.5 | 30 | 64 | 40.6 | IMA, HOMAG | LH | 24 | 3+3 | 30° | DGM.125030064.0LB4 | £510.26 | Each | UK 0EU 1 | 4–7 working days | |
| 125 | 4.5 | 30 | 64 | 40.6 | IMA, HOMAG | RH | 24 | 3+3 | 30° | DGM.125030064.0RB4 | £510.26 | Each | UK 0EU 1 | 4–7 working days |
