DGB series HSK25R type 23

4 products in this series

Edge Banding PCD Profiling Cutter Head D76mm Z4 HSK25R Type 23 Radius, Resharpenable — ITA Tools DGB.076025000.4LC1 — fits HOMAG, IMA SCHELLING
Edge Banding PCD Profiling Cutter Head D76mm Z4 HSK25R Type 23 Radius, Resharpenable — ITA Tools DGB.076025000.4LC2 — fits HOMAG, IMA SCHELLING
Edge Banding PCD Profiling Cutter Head D76mm Z4 HSK25R Type 23 Radius, Resharpenable — ITA Tools DGB.076025000.4RC1 — fits HOMAG, IMA SCHELLING
Edge Banding PCD Profiling Cutter Head D76mm Z4 HSK25R Type 23 Radius, Resharpenable — ITA Tools DGB.076025000.4RC2 — fits HOMAG, IMA SCHELLING

DGB series HSK25R type 23

Profiling PCD Heads for Edgebanding Machines

Description

️ Height of PCD tip 3 mm
️ Can be resharpened (3-4 times)

Technical details

Diamond cutter heads intended for edge profiling for edge banding machines with mechanical feed. Special construction for better facilitate chip evacuation. Suitable for MDF and chipboard panels.

Application

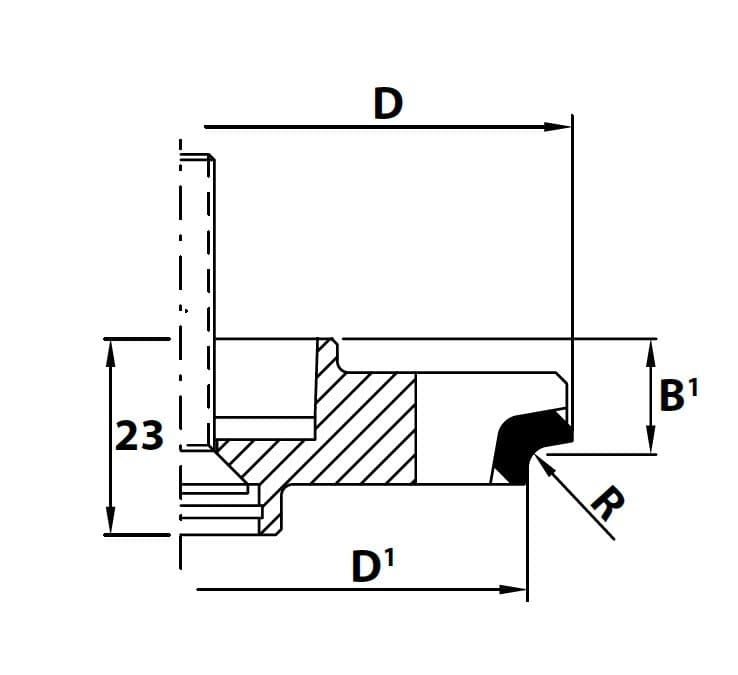

Tap to enlarge

Ddiameter

Zcutting edges

Rradius

B₁B1

D₁D1

Same on all 4 productsZCutting edges 4B₁B1 17.5 mmD₁D1 70 mmFixing HSK25R

Showing 2 of 2 sizes

Ø 76mm

£219.92per pc

Ddiameter

DGB.076025000.4RC1

Rradius1 mm

FREE delivery in 4–7 working daysEU 4

Ø 76mm

£219.92per pc

Ddiameter

DGB.076025000.4RC2

Rradius2 mm

FREE delivery in 4–7 working daysEU 10+

Secondary width	Diameter	Secondary diameter			Radius	Number of flutes			Unit	Stock	Delivery
17.5	76	70	HSK25R	LH	1	4	DGB.076025000.4LC1	£219.92	Each	UK 0EU 4	4–7 working days
17.5	76	70	HSK25R	LH	2	4	DGB.076025000.4LC2	£219.92	Each	UK 0EU 10+	4–7 working days
17.5	76	70	HSK25R	RH	1	4	DGB.076025000.4RC1	£219.92	Each	UK 0EU 4	4–7 working days
17.5	76	70	HSK25R	RH	2	4	DGB.076025000.4RC2	£219.92	Each	UK 0EU 10+	4–7 working days

4 products

UKLondon stock — order by 11:00, next working dayEUITA warehouse — usually 4–7 working daysEU sooncoming soon — delivery up to 2 weeksSpecial order14–21 working daysFree UK delivery over £50
