CNV series drilling

5 products in this series

Router Bit for Composites D4mm Shank 6mm L60mm Solid Carbide Multi-Edge Roughing, Anti-Delamination Tip Drilling — ITA Tools CNV.04.022.060.06R
Router Bit for Composites D6mm Shank 6mm L70mm Solid Carbide Multi-Edge Roughing, Anti-Delamination Tip Drilling — ITA Tools CNV.06.025.070.06R
Router Bit for Composites D8mm Shank 8mm L80mm Solid Carbide Multi-Edge Roughing, Anti-Delamination Tip Drilling — ITA Tools CNV.08.030.080.08R
Router Bit for Composites D10mm Shank 10mm L90mm Solid Carbide Multi-Edge Roughing, Anti-Delamination Tip Drilling — ITA Tools CNV.10.030.090.10R
Router Bit for Composites D12mm Shank 12mm L90mm Solid Carbide Multi-Edge Roughing, Anti-Delamination Tip Drilling — ITA Tools CNV.12.030.090.12R

CNV series drilling

Roughing Multi-edge Solid Carbide Bits, Drilling Tip, for Composites

Description

️ Multi-edge cutter with fine pitch, positive-negative geometry
️ Straight chip ejection to the side
️ Drilling tip
️ Geometry adapted to composites — counteracts delamination and fibre pull-out
️ Solid tungsten carbide, special grade for increased tool life
️ Right-hand rotation (RH), with chip breaker
️ Option of applying a coating

Technical details

For cutting and edge milling in carbon fibre (CFRP) and glass fibre (GFRP) composites, as well as Corian®, HPL and plywood. Intended for use on CNC machines.

Application

Materials

Advantages

️ Choose CNV where the operation requires vertical entry into the material — the drilling tip allows work to start without leading in from the edge.
️ If the tool is only to cut and mill edges, CNS with a standard tip or CNR with a rosette tip is sufficient.
️ The series covers 5 sizes from 4 to 12 mm diameter, intended for work on CNC machines.
️ For edge finishing after roughing, use the CPS, CSS, CVS or CPU series, selected according to the required chip ejection direction.

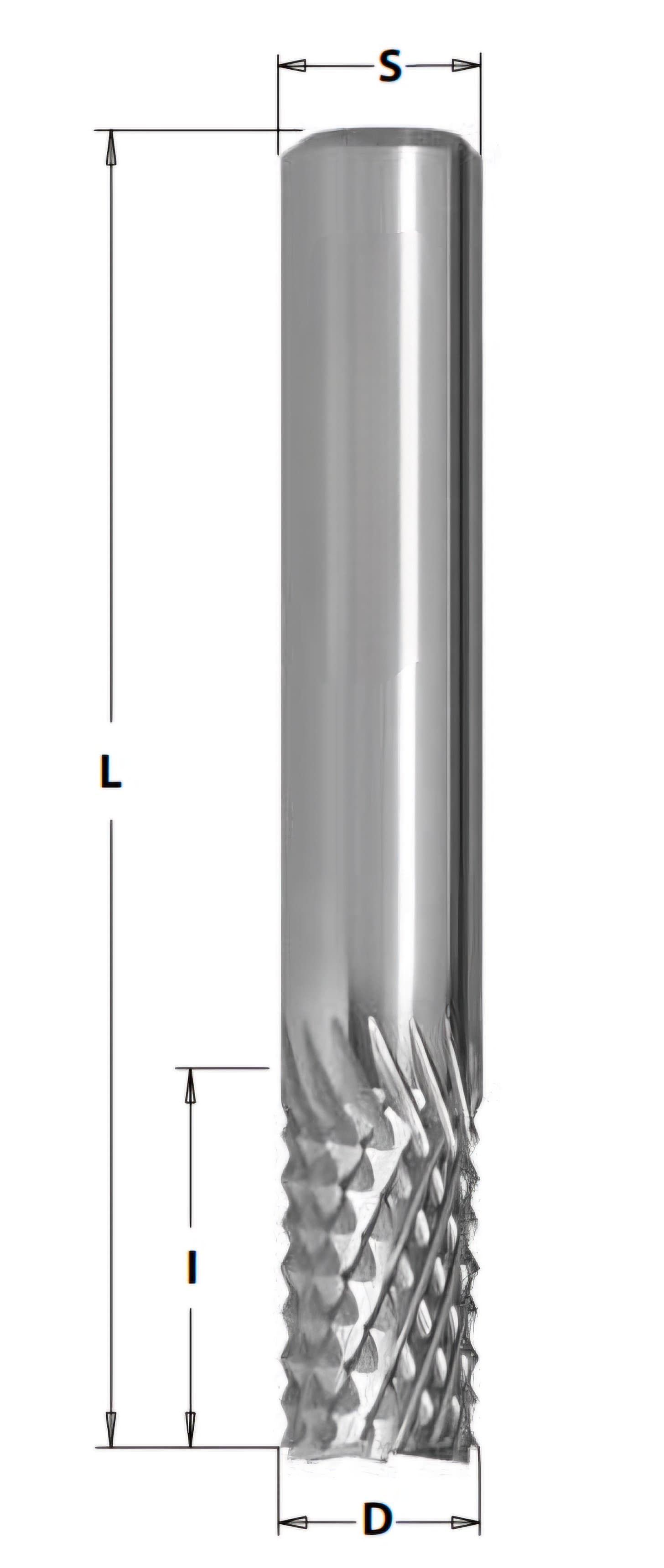

Tap to enlarge

Dcutting Ø

Icutting length

Loverall length

Sshank Ø

αangle

Same on all 5 productsαAngle Pos./Neg.Rotation RH

Dcutting Ø (mm)

Showing 5 of 5 sizes

Ø 4 × 22mm

£20.38per pc

Dcutting Ø×Icutting length

CNV.04.022.060.06R

Loverall60 mmSshank6 mm

Delivery in 4–7 working daysEU 9

Ø 6 × 25mm

£24.90per pc

Dcutting Ø×Icutting length

CNV.06.025.070.06R

Loverall70 mmSshank6 mm

Delivery in 14–21 working daysSpecial order

Ø 8 × 30mm

£24.90per pc

Dcutting Ø×Icutting length

CNV.08.030.080.08R

Loverall80 mmSshank8 mm

Delivery in 14–21 working daysSpecial order

Ø 10 × 30mm

£58.19per pc

Dcutting Ø×Icutting length

CNV.10.030.090.10R

Loverall90 mmSshank10 mm

FREE delivery within 2 weeksEU soon

Ø 12 × 30mm

£61.82per pc

Dcutting Ø×Icutting length

CNV.12.030.090.12R

Loverall90 mmSshank12 mm

FREE delivery in 4–7 working daysEU 3

Diameter	Cutting length	Overall length		Shank diameter				Unit	Stock	Delivery
4	22	60	RH	6	Pos./Neg.	CNV.04.022.060.06R	£20.38	Each	UK 0EU 9	4–7 working days
6	25	70	RH	6	Pos./Neg.	CNV.06.025.070.06R	£24.90	Each	UK 0Special order	14–21 working days
8	30	80	RH	8	Pos./Neg.	CNV.08.030.080.08R	£24.90	Each	UK 0Special order	14–21 working days
10	30	90	RH	10	Pos./Neg.	CNV.10.030.090.10R	£58.19	Each	UK 0EU soon	Up to 2 weeks
12	30	90	RH	12	Pos./Neg.	CNV.12.030.090.12R	£61.82	Each	UK 0EU 3	4–7 working days

5 products

UKLondon stock — order by 11:00, next working dayEUITA warehouse — usually 4–7 working daysEU sooncoming soon — delivery up to 2 weeksSpecial order14–21 working daysFree UK delivery over £50
