CNR series rosette

Roughing Multi-edge Solid Carbide Bits, Rosette Tip, for Composites

Description

️ Multi-edge cutter with fine pitch, positive-negative geometry
️ Straight chip ejection to the side
️ Rosette tip
️ Geometry adapted to composites — counteracts delamination and fibre pull-out
️ Solid tungsten carbide, special grade for increased tool life
️ Right-hand rotation (RH), with chip breaker
️ Option of applying a coating
️ Feed 0.8–3 m/min
️ RPM 6,000–16,000

Technical details

For cutting and edge milling in carbon fibre (CFRP) and glass fibre (GFRP) composites, as well as Corian®, HPL and plywood. Intended for use on CNC machines.

Application

Materials

Advantages

️ Choose CNR for roughing, where the priority is rapid material removal and the edge will be finished with a separate tool.
️ CNR has a rosette tip, CNS a standard tip and CNV a drilling tip — the choice depends on how the tool enters the material and on the roughing duty.
️ Where machining starts with a vertical plunge into the material, consider CNV with a drilling tip.
️ The widest dimensional range among the multi-edge bits: 16 sizes from 3 to 16 mm diameter, making it easier to match the tool to laminate thickness.
️ For edge finishing after roughing, use the CPS, CSS, CVS or CPU series, selected according to the required chip ejection direction.

Tap to enlarge

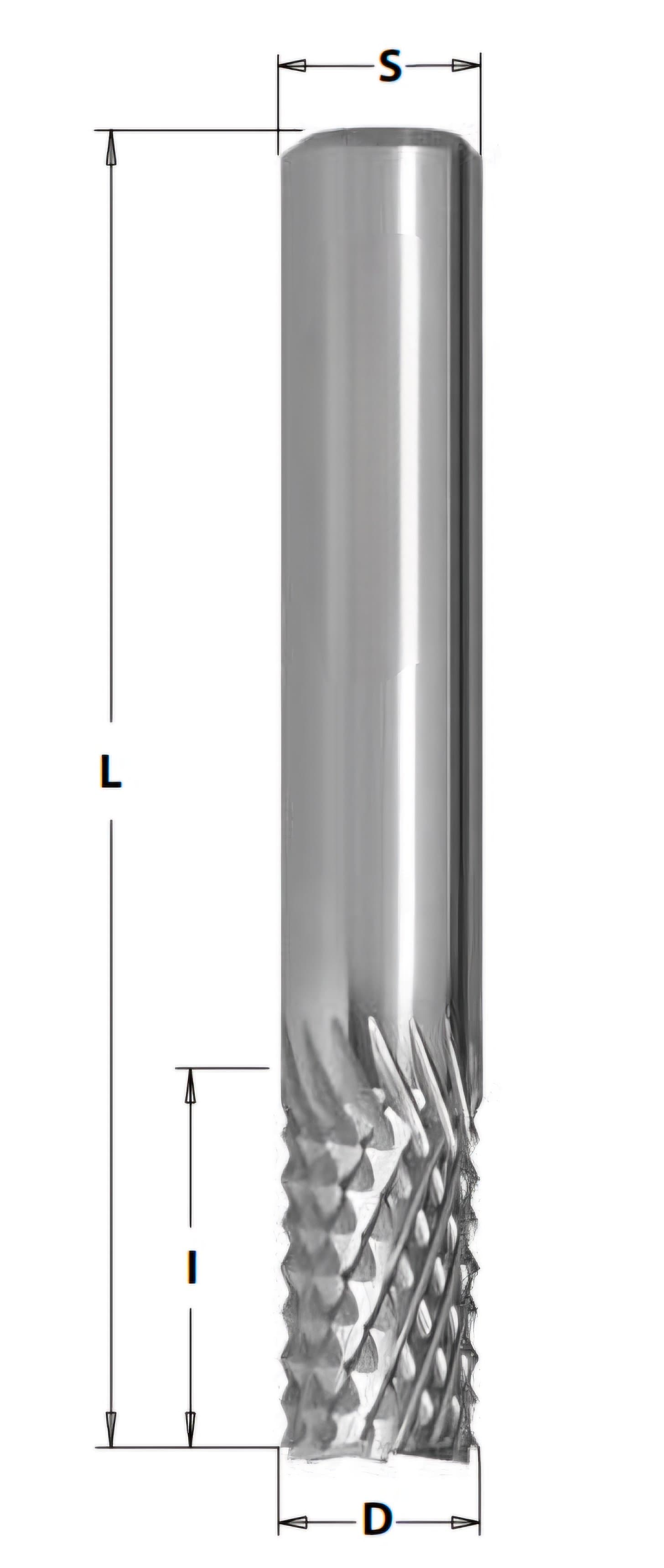

Dcutting Ø

Icutting length

Loverall length

Sshank Ø

αangle

Same on all 16 productsαAngle Pos./Neg.Rotation RH

Dcutting Ø (mm)

Showing 12 of 16 sizes

Ø 3 × 10mm

£10.31per pc

Dcutting Ø×Icutting length

CNR.03.010.045.03R

Loverall45 mmSshank3 mm

Delivery in 4–7 working daysUK 0EU 10+

Ø 3 × 10mm

£19.82per pc

Dcutting Ø×Icutting length

CNR.03.010.060.06R

Loverall60 mmSshank6 mm

Delivery in 14–21 working daysUK 0Special order

Ø 4 × 18mm

£23.22per pc

Dcutting Ø×Icutting length

CNR.04.018.060.04R

Loverall60 mmSshank4 mm

Delivery within 2 weeksUK 0EU soon

Ø 4 × 22mm

£16.53per pc

Dcutting Ø×Icutting length

CNR.04.022.060.05R

Loverall60 mmSshank5 mm

Delivery within 2 weeksUK 0EU soon

Ø 4 × 22mm

£20.38per pc

Dcutting Ø×Icutting length

CNR.04.022.060.06R

Loverall60 mmSshank6 mm

Delivery in 4–7 working daysUK 0EU 5

Ø 6 × 15mm

£20.38per pc

Dcutting Ø×Icutting length

CNR.06.015.060.06R

Loverall60 mmSshank6 mm

Delivery in 4–7 working daysUK 0EU 10+

Ø 6 × 24mm

£22.64per pc

Dcutting Ø×Icutting length

CNR.06.024.060.06R

Loverall60 mmSshank6 mm

Delivery within 2 weeksUK 0EU soon

Ø 6 × 25mm

£24.90per pc

Dcutting Ø×Icutting length

CNR.06.025.070.06R

Loverall70 mmSshank6 mm

Delivery in 4–7 working daysUK 0EU 10+

Ø 6 × 30mm

£26.39per pc

Dcutting Ø×Icutting length

CNR.06.030.070.06R

Loverall70 mmSshank6 mm

Delivery in 4–7 working daysUK 0EU 10+

Ø 8 × 25mm

£38.50per pc

Dcutting Ø×Icutting length

CNR.08.025.080.08R

Loverall80 mmSshank8 mm

Delivery next working dayUK 1EU soon

Ø 8 × 30mm

£57.74per pc

Dcutting Ø×Icutting length

CNR.08.030.080.08R

Loverall80 mmSshank8 mm

FREE delivery in 4–7 working daysUK 0EU 10+

Ø 8 × 35mm

£39.63per pc

Dcutting Ø×Icutting length

CNR.08.035.080.08R

Loverall80 mmSshank8 mm

Delivery within 2 weeksUK 0EU soon

Diameter	Cutting length	Overall length		Shank diameter				Unit	Stock	Delivery
3	10	45	RH	3	Pos./Neg.	CNR.03.010.045.03R	£10.31	Each	UK 0EU 10+	4–7 working days
3	10	60	RH	6	Pos./Neg.	CNR.03.010.060.06R	£19.82	Each	UK 0Special order	14–21 working days
4	18	60	RH	4	Pos./Neg.	CNR.04.018.060.04R	£23.22	Each	UK 0EU soon	Up to 2 weeks
4	22	60	RH	5	Pos./Neg.	CNR.04.022.060.05R	£16.53	Each	UK 0EU soon	Up to 2 weeks
4	22	60	RH	6	Pos./Neg.	CNR.04.022.060.06R	£20.38	Each	UK 0EU 5	4–7 working days
6	15	60	RH	6	Pos./Neg.	CNR.06.015.060.06R	£20.38	Each	UK 0EU 10+	4–7 working days
6	24	60	RH	6	Pos./Neg.	CNR.06.024.060.06R	£22.64	Each	UK 0EU soon	Up to 2 weeks
6	25	70	RH	6	Pos./Neg.	CNR.06.025.070.06R	£24.90	Each	UK 0EU 10+	4–7 working days
6	30	70	RH	6	Pos./Neg.	CNR.06.030.070.06R	£26.39	Each	UK 0EU 10+	4–7 working days
8	25	80	RH	8	Pos./Neg.	CNR.08.025.080.08R	£38.50	Each	UK 1EU soon	Next working day
8	30	80	RH	8	Pos./Neg.	CNR.08.030.080.08R	£57.74	Each	UK 0EU 10+	4–7 working days
8	35	80	RH	8	Pos./Neg.	CNR.08.035.080.08R	£39.63	Each	UK 0EU soon	Up to 2 weeks
10	30	90	RH	10	Pos./Neg.	CNR.10.030.090.10R	£59.45	Each	UK 0Special order	14–21 working days
10	35	80	RH	10	Pos./Neg.	CNR.10.035.080.10R	£57.74	Each	UK 0EU 10+	4–7 working days
12	30	90	RH	12	Pos./Neg.	CNR.12.030.090.12R	£96.23	Each	UK 0EU 9	4–7 working days
16	45	100	RH	16	Pos./Neg.	CNR.16.045.100.16R	£123.18	Each	UK 0Special order	14–21 working days

16 products
