BBXV series

10 products in this series

Dowel Drill Bit D5mm Shank 10mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.050.030.070.02L
Dowel Drill Bit D5mm Shank 10mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.050.030.070.02R
Dowel Drill Bit D6mm Shank 10mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.060.030.070.02L
Dowel Drill Bit D6mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.060.030.070.02R
Dowel Drill Bit D7mm Shank 10mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.070.030.070.02L
Dowel Drill Bit D7mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.070.030.070.02R
Dowel Drill Bit D8mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.080.030.070.02L
Dowel Drill Bit D8mm Shank 10mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.080.030.070.02R
Dowel Drill Bit D10mm Shank 10mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.100.030.070.02L
Dowel Drill Bit D10mm Shank 10mm L70mm Solid Carbide Blind Hole Drilling — ITA Tools BBXV.100.030.070.02R

BBXV series

Solid Carbide Blind Dowel Drills

Description

️ Premium quality super strength steel shank for improved resistance and durability
️ Flute length in premium quality HWM
️ 2 cutting edges [Z2] + 2 curved ground spurs [V2]
️ 2 spiral flutes
️ Parallel shank with driving flat and adjustable screw length
️ Recommended feed speed 1 ÷ 4m/minute – RPM 6000

Technical details

Ideal for chipboard, MDF, HDF andlaminates. No center-point or spurs means perfect bores in low-thickness panels. For use on boring machines equipped with adaptors and/or with chucks.

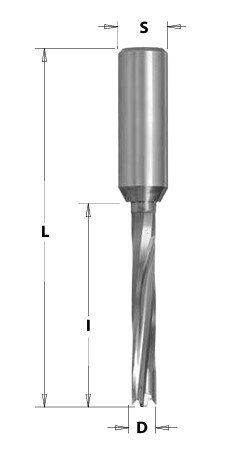

Diameter	Cutting length	Overall length		Shank diameter			Unit	Stock
5	30	70	LH	10x27	BBXV.050.030.070.02L	£27.80	Each	5 pcs
5	30	70	RH	10x27	BBXV.050.030.070.02R	£27.80	Each	5 pcs
6	30	70	LH	10x27	BBXV.060.030.070.02L	£32.59	Each	5 pcs
6	30	70	RH	10x27	BBXV.060.030.070.02R	£32.59	Each	5 pcs
7	30	70	LH	10x27	BBXV.070.030.070.02L	£48.12	Each	5 pcs
7	30	70	RH	10x27	BBXV.070.030.070.02R	£48.12	Each	5 pcs
8	30	70	LH	10x24	BBXV.080.030.070.02L	£51.91	Each	5 pcs
8	30	70	RH	10x24	BBXV.080.030.070.02R	£51.91	Each	5 pcs
10	30	70	LH	10x26	BBXV.100.030.070.02L	£66.08	Each	-
10	30	70	RH	10x26	BBXV.100.030.070.02R	£66.08	Each	-

10 products

Spare parts

Height		Overall length				Unit	Stock
6	3.5	18	HC20	18635	Inquire	Set of 10	-
5.7	3.5	18		KPR.18.06.03	£19.11	Each	-
14	2	14	HC20	114204	£154.20	Set of 10	4,3 sets
14	2.5	14	HC20	114254	£160.39	Set of 10	2 sets
18	2.95	18	HC20	182954	Inquire	Set of 10	-
18	3.7	18	HC20	18374	£137.89	Set of 10	0,5 sets
20	4	20		202564	Inquire	Each	-
20	2.5	20		2035625	£32.37	Each	2 pcs
13	4	24.5	MG18	245134	£21.83	Each	10+ pcs
13	5	24.5	MG18	245135	Inquire	Each	-
16	3.2	34	HC35	163432	Inquire	Each	-
16	4	34	HC35	16344	Inquire	Each	-
16	5	34	HC35	16345	Inquire	Each	-
16	6	34	HC35	16346	Inquire	Each	-
16	7	34	HC35	16347	Inquire	Each	-
16	3	34		341603	£26.79	Each	1 pc
8	4	19	HC20	11884	Inquire	Set of 10	-
40	4		SP	690.000	£14.08	Each	10+ pcs
40	4		SP	690.001	£14.08	Each	8 pcs
40	4		SP	690.002	£14.08	Each	1 pc
40	4		SP	690.003	£14.08	Each	-
40	4		SP	690.004	£14.08	Each	4 pcs
40	4		SP	690.005	£14.08	Set of 2	10+ sets
40	4		SP	690.006	£14.08	Each	-
40	4		SP	690.007	£14.08	Each	2 pcs
40	4		SP	690.008	£14.08	Each	Soon
40	4		SP	690.009	£14.08	Set of 2	Soon
40	4		SP	690.010	£14.08	Each	-
40	4		SP	690.011	£14.08	Each	1 pc
40	4		SP	690.012	£14.08	Each	-
40	4		SP	690.013	£14.08	Set of 2	-
40	4		SP	690.014	£14.08	Each	-
40	4		SP	690.015	£14.08	Each	Soon
40	4		SP	690.016	£14.08	Each	3 pcs
40	4		SP	690.017	£14.08	Each	10+ pcs
40	4		SP	690.018	£14.08	Each	-
40	4		SP	690.019	£14.08	Each	-
40	4		SP	690.020	£14.08	Each	-
40	4		SP	690.021	£14.08	Set of 2	1 set
40	4		SP	690.022	£14.08	Set of 2	-
40	4		SP	690.023	£14.08	Set of 2	-
40	4		SP	690.024	£14.08	Each	-
40	4		SP	690.025	£14.08	Each	2 pcs
40	4		SP	690.026	£14.08	Set of 2	-
40	4		SP	690.027	£14.08	Each	-
40	4		SP	690.028	£14.08	Each	-
40	4		SP	690.029	£14.08	Each	1 pc
40	4		SP	690.030	£14.08	Set of 2	1 set
40	4		SP	690.031	£14.08	Each	1 pc
40	4		SP	690.032	£14.08	Set of 2	-
