BBV5 series

14 products in this series

Dowel Drill Bit D2mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.020.012.057.01L
Dowel Drill Bit D2mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.020.012.057.01R
Dowel Drill Bit D3mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.030.018.057.01L
Dowel Drill Bit D3mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.030.018.057.01R
Dowel Drill Bit D4mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.040.020.057.01L
Dowel Drill Bit D4mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.040.020.057.01R
Dowel Drill Bit D5mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.050.022.057.01L
Dowel Drill Bit D5mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.050.022.057.01R
Dowel Drill Bit D6mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.060.022.057.01L
Dowel Drill Bit D6mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.060.022.057.01R
Dowel Drill Bit D8mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.080.022.057.01L
Dowel Drill Bit D8mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.080.022.057.01R
Dowel Drill Bit D10mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.100.022.057.01L
Dowel Drill Bit D10mm Shank 10mm L58mm Solid Carbide Through Hole, Short Version — ITA Tools BBV5.100.022.057.01R

BBV5 series

Solid Carbide Through Dowel Drills short

Description

️ Premium quality super-strength steel shank
️ High quality HWM body

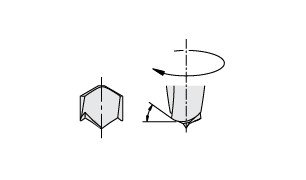

️ Centre point
️ 2 cutting edges [Z2]
️ 2 spiral flutes
️ 2 curved, negatively ground spurs [V2]
️ Parallel shank with driving flat and adjustable screw length

Technical details

For drilling blind holes in solid wood, wood derivatives and laminates. For use on boring machines equipped with adaptors and/or with chucks.

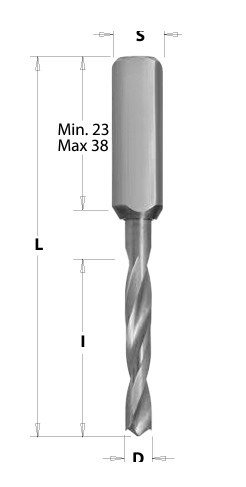

Diameter	Cutting length	Overall length		Shank diameter			Unit	Stock
2	12	57.5	LH	10x27	BBV5.020.012.057.01L	£15.63	Each	5 pcs
2	12	57.5	RH	10x27	BBV5.020.012.057.01R	£15.63	Each	5 pcs
3	18	57.5	LH	10x25	BBV5.030.018.057.01L	£15.63	Each	10+ pcs
3	18	57.5	RH	10x25	BBV5.030.018.057.01R	£15.63	Each	5 pcs
4	20	57.5	LH	10x25	BBV5.040.020.057.01L	£18.08	Each	5 pcs
4	20	57.5	RH	10x25	BBV5.040.020.057.01R	£18.08	Each	5 pcs
5	22	57.5	LH	10x23	BBV5.050.022.057.01L	£19.42	Each	10+ pcs
5	22	57.5	RH	10x23	BBV5.050.022.057.01R	£19.42	Each	10+ pcs
6	22	57.5	LH	10x25	BBV5.060.022.057.01L	£22.00	Each	5 pcs
6	22	57.5	RH	10x25	BBV5.060.022.057.01R	£22.00	Each	5 pcs
8	22	57.5	LH	10x25	BBV5.080.022.057.01L	£36.28	Each	5 pcs
8	22	57.5	RH	10x25	BBV5.080.022.057.01R	£36.28	Each	Soon
10	22	57.5	LH	10x25	BBV5.100.022.057.01L	£46.78	Each	5 pcs
10	22	57.5	RH	10x25	BBV5.100.022.057.01R	£46.78	Each	5 pcs

14 products

Spare parts

Height		Overall length				Unit	Stock
6	3.5	18	HC20	18635	Inquire	Set of 10	-
5.7	3.5	18		KPR.18.06.03	£19.11	Each	-
14	2	14	HC20	114204	£154.20	Set of 10	4,3 sets
14	2.5	14	HC20	114254	£160.39	Set of 10	2 sets
18	2.95	18	HC20	182954	Inquire	Set of 10	-
18	3.7	18	HC20	18374	£137.89	Set of 10	0,5 sets
20	4	20		202564	Inquire	Each	-
20	2.5	20		2035625	£32.37	Each	2 pcs
13	4	24.5	MG18	245134	£21.83	Each	10+ pcs
13	5	24.5	MG18	245135	Inquire	Each	-
16	3.2	34	HC35	163432	Inquire	Each	-
16	4	34	HC35	16344	Inquire	Each	-
16	5	34	HC35	16345	Inquire	Each	-
16	6	34	HC35	16346	Inquire	Each	-
16	7	34	HC35	16347	Inquire	Each	-
16	3	34		341603	£26.79	Each	1 pc
8	4	19	HC20	11884	Inquire	Set of 10	-
40	4		SP	690.000	£14.08	Each	10+ pcs
40	4		SP	690.001	£14.08	Each	8 pcs
40	4		SP	690.002	£14.08	Each	1 pc
40	4		SP	690.003	£14.08	Each	-
40	4		SP	690.004	£14.08	Each	4 pcs
40	4		SP	690.005	£14.08	Set of 2	10+ sets
40	4		SP	690.006	£14.08	Each	-
40	4		SP	690.007	£14.08	Each	2 pcs
40	4		SP	690.008	£14.08	Each	Soon
40	4		SP	690.009	£14.08	Set of 2	Soon
40	4		SP	690.010	£14.08	Each	-
40	4		SP	690.011	£14.08	Each	1 pc
40	4		SP	690.012	£14.08	Each	-
40	4		SP	690.013	£14.08	Set of 2	-
40	4		SP	690.014	£14.08	Each	-
40	4		SP	690.015	£14.08	Each	Soon
40	4		SP	690.016	£14.08	Each	3 pcs
40	4		SP	690.017	£14.08	Each	10+ pcs
40	4		SP	690.018	£14.08	Each	-
40	4		SP	690.019	£14.08	Each	-
40	4		SP	690.020	£14.08	Each	-
40	4		SP	690.021	£14.08	Set of 2	1 set
40	4		SP	690.022	£14.08	Set of 2	-
40	4		SP	690.023	£14.08	Set of 2	-
40	4		SP	690.024	£14.08	Each	-
40	4		SP	690.025	£14.08	Each	2 pcs
40	4		SP	690.026	£14.08	Set of 2	-
40	4		SP	690.027	£14.08	Each	-
40	4		SP	690.028	£14.08	Each	-
40	4		SP	690.029	£14.08	Each	1 pc
40	4		SP	690.030	£14.08	Set of 2	1 set
40	4		SP	690.031	£14.08	Each	1 pc
40	4		SP	690.032	£14.08	Set of 2	-
