BBH6 series

48 products in this series

Dowel Drill Bit D4mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.040.035.070.02L
Dowel Drill Bit D4mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.040.035.070.02R
Dowel Drill Bit D4.5mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.045.035.070.02L
Dowel Drill Bit D4.5mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.045.035.070.02R
Dowel Drill Bit D4.76mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.047.035.070.02L
Dowel Drill Bit D4.76mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.047.035.070.02R
Dowel Drill Bit D5mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.050.035.070.02L
Dowel Drill Bit D5mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.050.035.070.02R
Dowel Drill Bit D5.1mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.051.035.070.02L
Dowel Drill Bit D5.1mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.051.035.070.02R
Dowel Drill Bit D5.2mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.052.035.070.02L
Dowel Drill Bit D5.2mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.052.035.070.02R
Dowel Drill Bit D5.5mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.055.035.070.02L
Dowel Drill Bit D5.5mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.055.035.070.02R
Dowel Drill Bit D6mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.060.035.070.02L
Dowel Drill Bit D6mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.060.035.070.02R
Dowel Drill Bit D6.35mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.064.035.070.02L
Dowel Drill Bit D6.35mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.064.035.070.02R
Dowel Drill Bit D6.5mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.065.035.070.02L
Dowel Drill Bit D6.5mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.065.035.070.02R
Dowel Drill Bit D7mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.070.035.070.02L
Dowel Drill Bit D7mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.070.035.070.02R
Dowel Drill Bit D8mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.080.035.070.02L
Dowel Drill Bit D8mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.080.035.070.02R
Dowel Drill Bit D8.2mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.082.035.070.02L
Dowel Drill Bit D8.2mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.082.035.070.02R
Dowel Drill Bit D9mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.090.035.070.02L
Dowel Drill Bit D9mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.090.035.070.02R
Dowel Drill Bit D9.52mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.095.035.070.02L
Dowel Drill Bit D9.52mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.095.035.070.02R
Dowel Drill Bit D10mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.100.035.070.02L
Dowel Drill Bit D10mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.100.035.070.02R
Dowel Drill Bit D11mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.110.035.070.02L
Dowel Drill Bit D11mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.110.035.070.02R
Dowel Drill Bit D11.1mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.111.035.070.02L
Dowel Drill Bit D11.1mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.111.035.070.02R
Dowel Drill Bit D12mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.120.035.070.02L
Dowel Drill Bit D12mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.120.035.070.02R
Dowel Drill Bit D12.7mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.127.035.070.02L
Dowel Drill Bit D12.7mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.127.035.070.02R
Dowel Drill Bit D13mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.130.035.070.02L
Dowel Drill Bit D13mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.130.035.070.02R
Dowel Drill Bit D14mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.140.035.070.02L
Dowel Drill Bit D14mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.140.035.070.02R
Dowel Drill Bit D15mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.150.035.070.02L
Dowel Drill Bit D15mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.150.035.070.02R
Dowel Drill Bit D16mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.160.035.070.02L
Dowel Drill Bit D16mm L70mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH6.160.035.070.02R

BBH6 series

4 Flute Blind Dowel Drills S=10x30

Description

️ Super-strength steel
️ Cutter portion coated with black or orange P.T.F.E.
️ HW head with precision balanced centre point
️ 2 HW precision ground cutting edges [Z2]
️ Negatively ground spurs [V2]
️ 4 spiral flutes
️ Parallel shank with driving flat and length adjusting screw

Technical details

Used on boring machines equipped with adapters or chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.

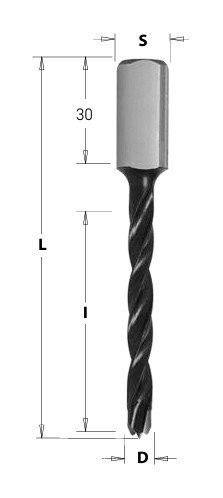

Diameter	Cutting length	Overall length		Shank diameter			Unit	Stock
4	35	70	LH	10x30	BBH6.040.035.070.02L	£13.84	Each	5 pcs
4	35	70	RH	10x30	BBH6.040.035.070.02R	£13.84	Each	7 pcs
4.5	35	70	LH	10x30	BBH6.045.035.070.02L	£14.29	Each	5 pcs
4.5	35	70	RH	10x30	BBH6.045.035.070.02R	£14.29	Each	5 pcs
4.7	35	70	LH	10x30	BBH6.047.035.070.02L	£14.29	Each	5 pcs
4.7	35	70	RH	10x30	BBH6.047.035.070.02R	£14.29	Each	5 pcs
5	35	70	LH	10x30	BBH6.050.035.070.02L	£11.39	Each	5 pcs
5	35	70	RH	10x30	BBH6.050.035.070.02R	£11.39	Each	5 pcs
5.1	35	70	LH	10x30	BBH6.051.035.070.02L	£14.29	Each	2 pcs
5.1	35	70	RH	10x30	BBH6.051.035.070.02R	£14.29	Each	5 pcs
5.2	35	70	LH	10x30	BBH6.052.035.070.02L	£14.29	Each	5 pcs
5.2	35	70	RH	10x30	BBH6.052.035.070.02R	£14.29	Each	5 pcs
5.5	35	70	LH	10x30	BBH6.055.035.070.02L	£14.63	Each	5 pcs
5.5	35	70	RH	10x30	BBH6.055.035.070.02R	£14.63	Each	5 pcs
6	35	70	LH	10x30	BBH6.060.035.070.02L	£12.17	Each	5 pcs
6	35	70	RH	10x30	BBH6.060.035.070.02R	£12.17	Each	5 pcs
6.4	35	70	LH	10x30	BBH6.064.035.070.02L	£14.41	Each	5 pcs
6.4	35	70	RH	10x30	BBH6.064.035.070.02R	£14.41	Each	5 pcs
6.5	35	70	LH	10x30	BBH6.065.035.070.02L	£14.41	Each	5 pcs
6.5	35	70	RH	10x30	BBH6.065.035.070.02R	£14.41	Each	5 pcs
7	35	70	LH	10x30	BBH6.070.035.070.02L	£12.95	Each	5 pcs
7	35	70	RH	10x30	BBH6.070.035.070.02R	£12.95	Each	3 pcs
8	35	70	LH	10x30	BBH6.080.035.070.02L	£12.84	Each	5 pcs
8	35	70	RH	10x30	BBH6.080.035.070.02R	£12.84	Each	5 pcs
8.2	35	70	LH	10x30	BBH6.082.035.070.02L	£16.07	Each	5 pcs
8.2	35	70	RH	10x30	BBH6.082.035.070.02R	£16.07	Each	5 pcs
9	35	70	LH	10x30	BBH6.090.035.070.02L	£14.96	Each	5 pcs
9	35	70	RH	10x30	BBH6.090.035.070.02R	£14.96	Each	5 pcs
9.5	35	70	LH	10x30	BBH6.095.035.070.02L	£16.86	Each	5 pcs
9.5	35	70	RH	10x30	BBH6.095.035.070.02R	£16.86	Each	5 pcs
10	35	70	LH	10x30	BBH6.100.035.070.02L	£14.96	Each	5 pcs
10	35	70	RH	10x30	BBH6.100.035.070.02R	£14.96	Each	5 pcs
11	35	70	LH	10x30	BBH6.110.035.070.02L	£16.74	Each	5 pcs
11	35	70	RH	10x30	BBH6.110.035.070.02R	£16.74	Each	5 pcs
11.1	35	70	LH	10x30	BBH6.111.035.070.02L	£18.65	Each	5 pcs
11.1	35	70	RH	10x30	BBH6.111.035.070.02R	£18.65	Each	5 pcs
12	35	70	LH	10x30	BBH6.120.035.070.02L	£16.74	Each	5 pcs
12	35	70	RH	10x30	BBH6.120.035.070.02R	£16.74	Each	5 pcs
12.7	35	70	LH	10x30	BBH6.127.035.070.02L	£21.43	Each	5 pcs
12.7	35	70	RH	10x30	BBH6.127.035.070.02R	£21.43	Each	5 pcs
13	35	70	LH	10x30	BBH6.130.035.070.02L	£22.22	Each	5 pcs
13	35	70	RH	10x30	BBH6.130.035.070.02R	£22.22	Each	5 pcs
14	35	70	LH	10x30	BBH6.140.035.070.02L	£24.01	Each	5 pcs
14	35	70	RH	10x30	BBH6.140.035.070.02R	£24.01	Each	5 pcs
15	35	70	LH	10x30	BBH6.150.035.070.02L	£27.90	Each	5 pcs
15	35	70	RH	10x30	BBH6.150.035.070.02R	£27.90	Each	5 pcs
16	35	70	LH	10x30	BBH6.160.035.070.02L	£29.36	Each	5 pcs
16	35	70	RH	10x30	BBH6.160.035.070.02R	£29.36	Each	5 pcs

48 products

Spare parts

Height		Overall length				Unit	Stock
6	3.5	18	HC20	18635	Inquire	Set of 10	-
5.7	3.5	18		KPR.18.06.03	£19.11	Each	-
14	2	14	HC20	114204	£154.20	Set of 10	4,3 sets
14	2.5	14	HC20	114254	£160.39	Set of 10	2 sets
18	2.95	18	HC20	182954	Inquire	Set of 10	-
18	3.7	18	HC20	18374	£137.89	Set of 10	0,5 sets
20	4	20		202564	Inquire	Each	-
20	2.5	20		2035625	£32.37	Each	2 pcs
13	4	24.5	MG18	245134	£21.83	Each	10+ pcs
13	5	24.5	MG18	245135	Inquire	Each	-
16	3.2	34	HC35	163432	Inquire	Each	-
16	4	34	HC35	16344	Inquire	Each	-
16	5	34	HC35	16345	Inquire	Each	-
16	6	34	HC35	16346	Inquire	Each	-
16	7	34	HC35	16347	Inquire	Each	-
16	3	34		341603	£26.79	Each	1 pc
8	4	19	HC20	11884	Inquire	Set of 10	-
40	4		SP	690.000	£14.08	Each	10+ pcs
40	4		SP	690.001	£14.08	Each	8 pcs
40	4		SP	690.002	£14.08	Each	1 pc
40	4		SP	690.003	£14.08	Each	-
40	4		SP	690.004	£14.08	Each	4 pcs
40	4		SP	690.005	£14.08	Set of 2	10+ sets
40	4		SP	690.006	£14.08	Each	-
40	4		SP	690.007	£14.08	Each	2 pcs
40	4		SP	690.008	£14.08	Each	Soon
40	4		SP	690.009	£14.08	Set of 2	Soon
40	4		SP	690.010	£14.08	Each	-
40	4		SP	690.011	£14.08	Each	1 pc
40	4		SP	690.012	£14.08	Each	-
40	4		SP	690.013	£14.08	Set of 2	-
40	4		SP	690.014	£14.08	Each	-
40	4		SP	690.015	£14.08	Each	Soon
40	4		SP	690.016	£14.08	Each	3 pcs
40	4		SP	690.017	£14.08	Each	10+ pcs
40	4		SP	690.018	£14.08	Each	-
40	4		SP	690.019	£14.08	Each	-
40	4		SP	690.020	£14.08	Each	-
40	4		SP	690.021	£14.08	Set of 2	1 set
40	4		SP	690.022	£14.08	Set of 2	-
40	4		SP	690.023	£14.08	Set of 2	-
40	4		SP	690.024	£14.08	Each	-
40	4		SP	690.025	£14.08	Each	2 pcs
40	4		SP	690.026	£14.08	Set of 2	-
40	4		SP	690.027	£14.08	Each	-
40	4		SP	690.028	£14.08	Each	-
40	4		SP	690.029	£14.08	Each	1 pc
40	4		SP	690.030	£14.08	Set of 2	1 set
40	4		SP	690.031	£14.08	Each	1 pc
40	4		SP	690.032	£14.08	Set of 2	-
