BBH5 series

46 products in this series

Dowel Drill Bit D4mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.040.027.057.01L
Dowel Drill Bit D4mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.040.027.057.01R
Dowel Drill Bit D4.5mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.045.027.057.01L
Dowel Drill Bit D4.5mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.045.027.057.01R
Dowel Drill Bit D4.76mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.047.027.057.01L
Dowel Drill Bit D4.76mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.047.027.057.01R
Dowel Drill Bit D5mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.050.027.057.01L
Dowel Drill Bit D5mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.050.027.057.01R
Dowel Drill Bit D5.1mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.051.027.057.01L
Dowel Drill Bit D5.1mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.051.027.057.01R
Dowel Drill Bit D5.2mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.052.027.057.01L
Dowel Drill Bit D5.2mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.052.027.057.01R
Dowel Drill Bit D5.55mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.055.027.057.01L
Dowel Drill Bit D5.55mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.055.027.057.01R
Dowel Drill Bit D6mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.060.027.057.01L
Dowel Drill Bit D6mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.060.027.057.01R
Dowel Drill Bit D6.35mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.064.027.057.01L
Dowel Drill Bit D6.35mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.064.027.057.01R
Dowel Drill Bit D6.5mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.065.027.057.01L
Dowel Drill Bit D6.5mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.065.027.057.01R
Dowel Drill Bit D7mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.070.027.057.01L
Dowel Drill Bit D7mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.070.027.057.01R
Dowel Drill Bit D8mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.080.027.057.01L
Dowel Drill Bit D8mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.080.027.057.01R
Dowel Drill Bit D8.2mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.082.027.057.01L
Dowel Drill Bit D8.2mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.082.027.057.01R
Dowel Drill Bit D9mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.090.027.057.01L
Dowel Drill Bit D9mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.090.027.057.01R
Dowel Drill Bit D9.52mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.095.027.057.01L
Dowel Drill Bit D9.52mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.095.027.057.01R
Dowel Drill Bit D10mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.100.027.057.01L
Dowel Drill Bit D10mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.100.027.057.01R
Dowel Drill Bit D11mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.110.027.057.01L
Dowel Drill Bit D11mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.110.027.057.01R
Dowel Drill Bit D12mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.120.027.057.01L
Dowel Drill Bit D12mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.120.027.057.01R
Dowel Drill Bit D12.7mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.127.027.057.01L
Dowel Drill Bit D12.7mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.127.027.057.01R
Dowel Drill Bit D13mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.130.027.057.01L
Dowel Drill Bit D13mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.130.027.057.01R
Dowel Drill Bit D14mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.140.027.057.01L
Dowel Drill Bit D14mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.140.027.057.01R
Dowel Drill Bit D15mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.150.027.057.01L
Dowel Drill Bit D15mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.150.027.057.01R
Dowel Drill Bit D16mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.160.027.057.01L
Dowel Drill Bit D16mm L58mm Shank 10mm Blind Hole 4-Flute TCT for Drilling Machines — ITA Tools BBH5.160.027.057.01R

BBH5 series

4 Flute Blind Dowel Drills S=10x27

Description

️ Super-strength steel
️ Cutter portion coated with black or orange P.T.F.E.
️ HW head with precision balanced centre point
️ 2 HW precision ground cutting edges [Z2]
️ Negatively ground spurs [V2]
️ 4 spiral flutes
️ Parallel shank with driving flat and length adjusting screw

Technical details

Used on boring machines equipped with adapters or chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.

Swipe · tap to enlarge

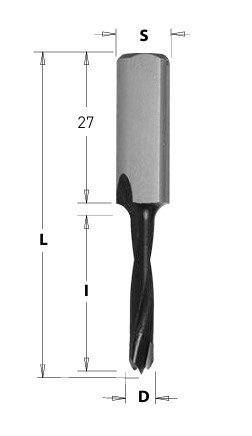

Ddrill diameter

Icutting length

Loverall length

Sshank Ø

Same on all 46 productsICutting length 27 mmLOverall length 57.5 mmSShank Ø 10 × 27 mm

Ddrill diameter (mm)

Showing 12 of 23 sizes

Ø 4mm

£13.58per pc

Ddrill diameter

BBH5.040.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 4.5mm

£13.81per pc

Ddrill diameter

BBH5.045.027.057.01R

Delivery in 4–7 working daysEU 6

Ø 4.7mm

£13.81per pc

Ddrill diameter

BBH5.047.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 5mm

£10.99per pc

Ddrill diameter

BBH5.050.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 5.1mm

£13.81per pc

Ddrill diameter

BBH5.051.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 5.2mm

£13.81per pc

Ddrill diameter

BBH5.052.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 5.5mm

£14.16per pc

Ddrill diameter

BBH5.055.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 6mm

£11.55per pc

Ddrill diameter

BBH5.060.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 6.4mm

£13.81per pc

Ddrill diameter

BBH5.064.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 6.5mm

£14.16per pc

Ddrill diameter

BBH5.065.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 7mm

£12.68per pc

Ddrill diameter

BBH5.070.027.057.01R

Delivery in 4–7 working daysEU 5

Ø 8mm

£12.80per pc

Ddrill diameter

BBH5.080.027.057.01R

Delivery in 4–7 working daysEU 5

Diameter	Cutting length	Overall length		Shank diameter			Unit	Stock	Delivery
4	27	57.5	LH	10x27	BBH5.040.027.057.01L	£13.58	Each	UK 0EU 5	4–7 working days
4	27	57.5	RH	10x27	BBH5.040.027.057.01R	£13.58	Each	UK 0EU 5	4–7 working days
4.5	27	57.5	LH	10x27	BBH5.045.027.057.01L	£13.81	Each	UK 0EU 5	4–7 working days
4.5	27	57.5	RH	10x27	BBH5.045.027.057.01R	£13.81	Each	UK 0EU 6	4–7 working days
4.7	27	57.5	LH	10x27	BBH5.047.027.057.01L	£13.81	Each	UK 0EU 5	4–7 working days
4.7	27	57.5	RH	10x27	BBH5.047.027.057.01R	£13.81	Each	UK 0EU 5	4–7 working days
5	27	57.5	LH	10x27	BBH5.050.027.057.01L	£10.99	Each	UK 0EU 5	4–7 working days
5	27	57.5	RH	10x27	BBH5.050.027.057.01R	£10.99	Each	UK 0EU 5	4–7 working days
5.1	27	57.5	LH	10x27	BBH5.051.027.057.01L	£13.81	Each	UK 0EU 5	4–7 working days
5.1	27	57.5	RH	10x27	BBH5.051.027.057.01R	£13.81	Each	UK 0EU 5	4–7 working days
5.2	27	57.5	LH	10x27	BBH5.052.027.057.01L	£13.81	Each	UK 0EU 6	4–7 working days
5.2	27	57.5	RH	10x27	BBH5.052.027.057.01R	£13.81	Each	UK 0EU 5	4–7 working days
5.5	27	57.5	LH	10x27	BBH5.055.027.057.01L	£14.16	Each	UK 0EU 5	4–7 working days
5.5	27	57.5	RH	10x27	BBH5.055.027.057.01R	£14.16	Each	UK 0EU 5	4–7 working days
6	27	57.5	LH	10x27	BBH5.060.027.057.01L	£11.55	Each	UK 0EU 5	4–7 working days
6	27	57.5	RH	10x27	BBH5.060.027.057.01R	£11.55	Each	UK 0EU 5	4–7 working days
6.4	27	57.5	LH	10x27	BBH5.064.027.057.01L	£13.81	Each	UK 0EU 5	4–7 working days
6.4	27	57.5	RH	10x27	BBH5.064.027.057.01R	£13.81	Each	UK 0EU 5	4–7 working days
6.5	27	57.5	LH	10x27	BBH5.065.027.057.01L	£14.16	Each	UK 0EU 5	4–7 working days
6.5	27	57.5	RH	10x27	BBH5.065.027.057.01R	£14.16	Each	UK 0EU 5	4–7 working days
7	27	57.5	LH	10x27	BBH5.070.027.057.01L	£12.68	Each	UK 0EU 5	4–7 working days
7	27	57.5	RH	10x27	BBH5.070.027.057.01R	£12.68	Each	UK 0EU 5	4–7 working days
8	27	57.5	LH	10x27	BBH5.080.027.057.01L	£12.80	Each	UK 0EU 5	4–7 working days
8	27	57.5	RH	10x27	BBH5.080.027.057.01R	£12.80	Each	UK 0EU 5	4–7 working days
8.2	27	57.5	LH	10x27	BBH5.082.027.057.01L	£15.40	Each	UK 0EU 5	4–7 working days
8.2	27	57.5	RH	10x27	BBH5.082.027.057.01R	£15.40	Each	UK 0EU 5	4–7 working days
9	27	57.5	LH	10x27	BBH5.090.027.057.01L	£14.61	Each	UK 0EU 5	4–7 working days
9	27	57.5	RH	10x27	BBH5.090.027.057.01R	£14.61	Each	UK 0EU 5	4–7 working days
9.5	27	57.5	LH	10x27	BBH5.095.027.057.01L	£16.08	Each	UK 0EU 5	4–7 working days
9.5	27	57.5	RH	10x27	BBH5.095.027.057.01R	£16.08	Each	UK 0EU 5	4–7 working days
10	27	57.5	LH	10x27	BBH5.100.027.057.01L	£14.61	Each	UK 0EU 5	4–7 working days
10	27	57.5	RH	10x27	BBH5.100.027.057.01R	£14.61	Each	UK 0EU 5	4–7 working days
11	27	57.5	LH	10x27	BBH5.110.027.057.01L	£16.20	Each	UK 0EU 5	4–7 working days
11	27	57.5	RH	10x27	BBH5.110.027.057.01R	£16.20	Each	UK 0EU 5	4–7 working days
12	27	57.5	LH	10x27	BBH5.120.027.057.01L	£16.20	Each	UK 0EU 5	4–7 working days
12	27	57.5	RH	10x27	BBH5.120.027.057.01R	£16.20	Each	UK 0EU 5	4–7 working days
12.7	27	57.5	LH	10x27	BBH5.127.027.057.01L	£21.29	Each	UK 0EU 5	4–7 working days
12.7	27	57.5	RH	10x27	BBH5.127.027.057.01R	£21.29	Each	UK 0EU 5	4–7 working days
13	27	57.5	LH	10x27	BBH5.130.027.057.01L	£21.86	Each	UK 0EU 5	4–7 working days
13	27	57.5	RH	10x27	BBH5.130.027.057.01R	£21.86	Each	UK 0EU 5	4–7 working days
14	27	57.5	LH	10x27	BBH5.140.027.057.01L	£23.10	Each	UK 0EU 5	4–7 working days
14	27	57.5	RH	10x27	BBH5.140.027.057.01R	£23.10	Each	UK 0EU 5	4–7 working days
15	27	57.5	LH	10x27	BBH5.150.027.057.01L	£27.29	Each	UK 0EU 5	4–7 working days
15	27	57.5	RH	10x27	BBH5.150.027.057.01R	£27.29	Each	UK 0EU 5	4–7 working days
16	27	57.5	LH	10x27	BBH5.160.027.057.01L	£28.53	Each	UK 0EU 5	4–7 working days
16	27	57.5	RH	10x27	BBH5.160.027.057.01R	£28.53	Each	UK 0EU 5	4–7 working days

46 products
