BBH2 series

18 products in this series

Dowel Drill Bit D5mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.050.040.067.14L
Dowel Drill Bit D5mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.050.040.067.14R
Dowel Drill Bit D5.55mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.055.040.067.14L
Dowel Drill Bit D5.55mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.055.040.067.14R
Dowel Drill Bit D6mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.060.040.067.14L
Dowel Drill Bit D6mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.060.040.067.14R
Dowel Drill Bit D6.35mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.064.040.067.14L
Dowel Drill Bit D6.35mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.064.040.067.14R
Dowel Drill Bit 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.070.040.067.14L
Dowel Drill Bit D7mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.070.040.067.14R
Dowel Drill Bit D8mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.080.040.067.14L
Dowel Drill Bit D8mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.080.040.067.14R
Dowel Drill Bit D9mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.090.040.067.14L
Dowel Drill Bit D9mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.090.040.067.14R
Dowel Drill Bit D10mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.100.040.067.14L
Dowel Drill Bit D10mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.100.040.067.14R
Dowel Drill Bit D12mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.120.040.067.14L
Dowel Drill Bit D12mm Shank 8mm L67mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH2.120.040.067.14R

BBH2 series

4 Flute Blind Dowel Drills L=67

Description

️ Super-strength steel
️ Cutter portion coated with black or orange P.T.F.E.
️ HW head with precision balanced centre point
️ 2 HW precision ground cutting edges [Z2]
️ Negatively ground spurs [V2]
️ 4 spiral flutes
️ Parallel shank with driving flat and length adjusting screw

Technical details

Used on boring machines equipped with adapters or chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.

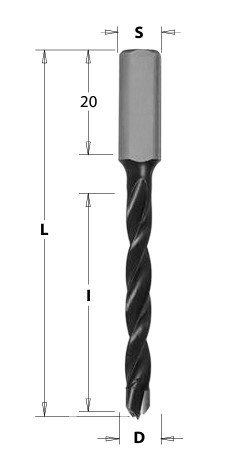

Diameter	Cutting length	Overall length		Shank diameter			Unit	Stock
5	40	67	LH	8x20	BBH2.050.040.067.14L	£12.72	Each	1 pc
5	40	67	RH	8x20	BBH2.050.040.067.14R	£12.72	Each	1 pc
5.5	40	67	LH	8x20	BBH2.055.040.067.14L	£14.96	Each	5 pcs
5.5	40	67	RH	8x20	BBH2.055.040.067.14R	£14.96	Each	5 pcs
6	40	67	LH	8x20	BBH2.060.040.067.14L	£13.39	Each	5 pcs
6	40	67	RH	8x20	BBH2.060.040.067.14R	£13.39	Each	5 pcs
6.4	40	67	LH	8x20	BBH2.064.040.067.14L	£14.96	Each	5 pcs
6.4	40	67	RH	8x20	BBH2.064.040.067.14R	£14.96	Each	5 pcs
7	40	67	LH	8x20	BBH2.070.040.067.14L	£14.41	Each	-
7	40	67	RH	8x20	BBH2.070.040.067.14R	£14.41	Each	5 pcs
8	40	67	LH	8x20	BBH2.080.040.067.14L	£14.63	Each	Soon
8	40	67	RH	8x20	BBH2.080.040.067.14R	£14.63	Each	Soon
9	40	67	LH	8x20	BBH2.090.040.067.14L	£16.07	Each	5 pcs
9	40	67	RH	8x20	BBH2.090.040.067.14R	£16.07	Each	5 pcs
10	40	67	LH	8x20	BBH2.100.040.067.14L	£16.52	Each	5 pcs
10	40	67	RH	8x20	BBH2.100.040.067.14R	£16.52	Each	5 pcs
12	40	67	LH	8x20	BBH2.120.040.067.14L	£18.75	Each	5 pcs
12	40	67	RH	8x20	BBH2.120.040.067.14R	£18.75	Each	5 pcs

18 products

Spare parts

Height		Overall length				Unit	Stock
6	3.5	18	HC20	18635	Inquire	Set of 10	-
5.7	3.5	18		KPR.18.06.03	£19.11	Each	-
14	2	14	HC20	114204	£154.20	Set of 10	4,3 sets
14	2.5	14	HC20	114254	£160.39	Set of 10	2 sets
18	2.95	18	HC20	182954	Inquire	Set of 10	-
18	3.7	18	HC20	18374	£137.89	Set of 10	0,5 sets
20	4	20		202564	Inquire	Each	-
20	2.5	20		2035625	£32.37	Each	2 pcs
13	4	24.5	MG18	245134	£21.83	Each	10+ pcs
13	5	24.5	MG18	245135	Inquire	Each	-
16	3.2	34	HC35	163432	Inquire	Each	-
16	4	34	HC35	16344	Inquire	Each	-
16	5	34	HC35	16345	Inquire	Each	-
16	6	34	HC35	16346	Inquire	Each	-
16	7	34	HC35	16347	Inquire	Each	-
16	3	34		341603	£26.79	Each	1 pc
8	4	19	HC20	11884	Inquire	Set of 10	-
40	4		SP	690.000	£14.08	Each	10+ pcs
40	4		SP	690.001	£14.08	Each	8 pcs
40	4		SP	690.002	£14.08	Each	1 pc
40	4		SP	690.003	£14.08	Each	-
40	4		SP	690.004	£14.08	Each	4 pcs
40	4		SP	690.005	£14.08	Set of 2	10+ sets
40	4		SP	690.006	£14.08	Each	-
40	4		SP	690.007	£14.08	Each	2 pcs
40	4		SP	690.008	£14.08	Each	Soon
40	4		SP	690.009	£14.08	Set of 2	Soon
40	4		SP	690.010	£14.08	Each	-
40	4		SP	690.011	£14.08	Each	1 pc
40	4		SP	690.012	£14.08	Each	-
40	4		SP	690.013	£14.08	Set of 2	-
40	4		SP	690.014	£14.08	Each	-
40	4		SP	690.015	£14.08	Each	Soon
40	4		SP	690.016	£14.08	Each	3 pcs
40	4		SP	690.017	£14.08	Each	10+ pcs
40	4		SP	690.018	£14.08	Each	-
40	4		SP	690.019	£14.08	Each	-
40	4		SP	690.020	£14.08	Each	-
40	4		SP	690.021	£14.08	Set of 2	1 set
40	4		SP	690.022	£14.08	Set of 2	-
40	4		SP	690.023	£14.08	Set of 2	-
40	4		SP	690.024	£14.08	Each	-
40	4		SP	690.025	£14.08	Each	2 pcs
40	4		SP	690.026	£14.08	Set of 2	-
40	4		SP	690.027	£14.08	Each	-
40	4		SP	690.028	£14.08	Each	-
40	4		SP	690.029	£14.08	Each	1 pc
40	4		SP	690.030	£14.08	Set of 2	1 set
40	4		SP	690.031	£14.08	Each	1 pc
40	4		SP	690.032	£14.08	Set of 2	-
