BBH1 series

18 products in this series

Dowel Drill Bit D5mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.050.030.055.14L
Dowel Drill Bit D5mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.050.030.055.14R
Dowel Drill Bit D5.55mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.055.030.055.14L
Dowel Drill Bit D5.55mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.055.030.055.14R
Dowel Drill Bit D6mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.060.030.055.14L
Dowel Drill Bit D6mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.060.030.055.14R
Dowel Drill Bit D6.35mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.064.030.055.14L
Dowel Drill Bit D6.35mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.064.030.055.14R
Dowel Drill Bit D7mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.070.030.055.14L
Dowel Drill Bit D7mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.070.030.055.14R
Dowel Drill Bit D8mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.080.030.055.14L
Dowel Drill Bit D8mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.080.030.055.14R
Dowel Drill Bit D9mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.090.030.055.14L
Dowel Drill Bit D9mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.090.030.055.14R
Dowel Drill Bit D10mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.100.030.055.14L
Dowel Drill Bit D10mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.100.030.055.14R
Dowel Drill Bit D12mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.120.030.055.14L
Dowel Drill Bit D12mm Shank 8mm L56mm 4-Flute Blind Hole HW for Drilling Machines — ITA Tools BBH1.120.030.055.14R

BBH1 series

4 Flute Blind Dowel Drills L=55.5

Description

️ Super-strength steel
️ Cutter portion coated with black or orange P.T.F.E.
️ HW head with precision balanced centre point
️ 2 HW precision ground cutting edges [Z2]
️ Negatively ground spurs [V2]
️ 4 spiral flutes
️ Parallel shank with driving flat and length adjusting screw

Technical details

Used on boring machines equipped with adapters or chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.

Swipe · tap to enlarge

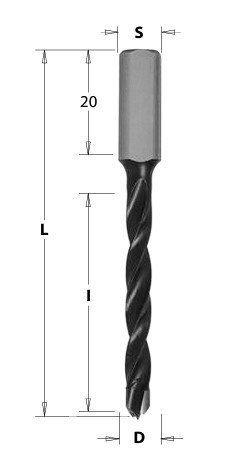

Ddrill diameter

Icutting length

Loverall length

Sshank Ø

Same on all 18 productsICutting length 30 mmLOverall length 55.5 mmSShank Ø 8 × 20 mm

Ddrill diameter (mm)

Showing 9 of 9 sizes

Ø 5mm

£12.13per pc

Ddrill diameter

BBH1.050.030.055.14R
